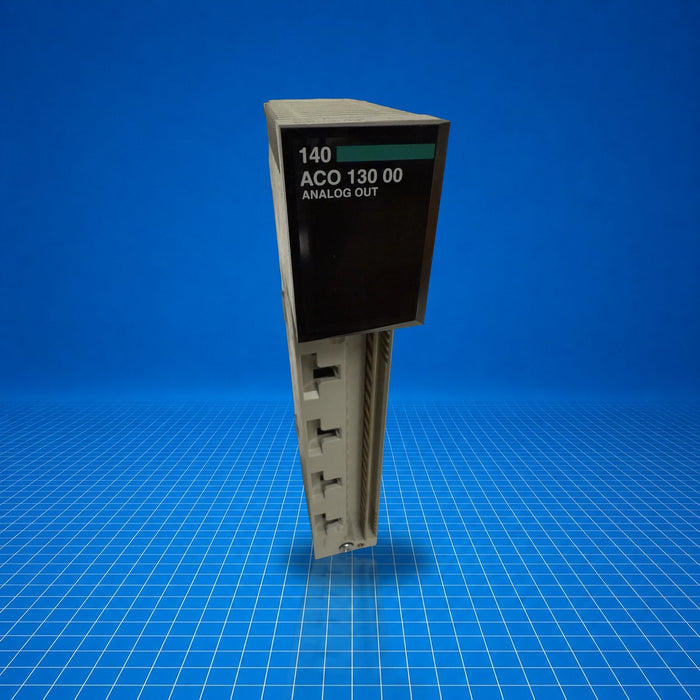

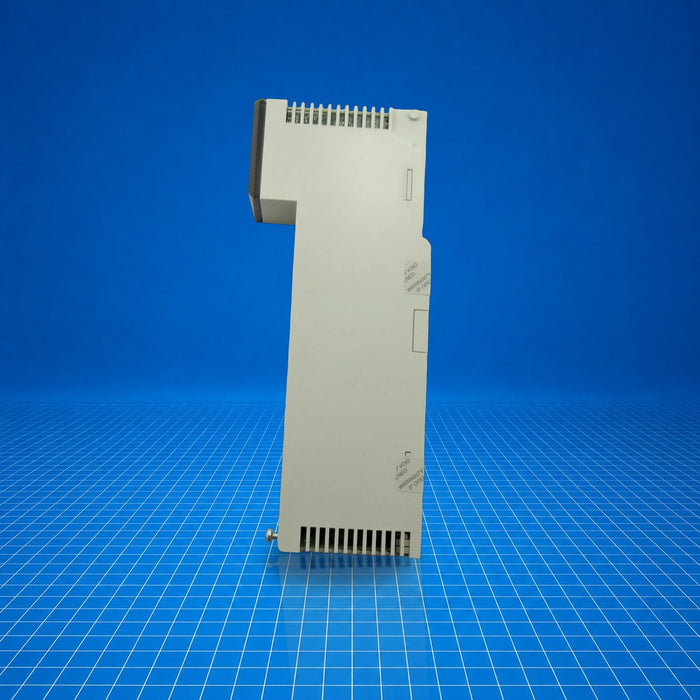

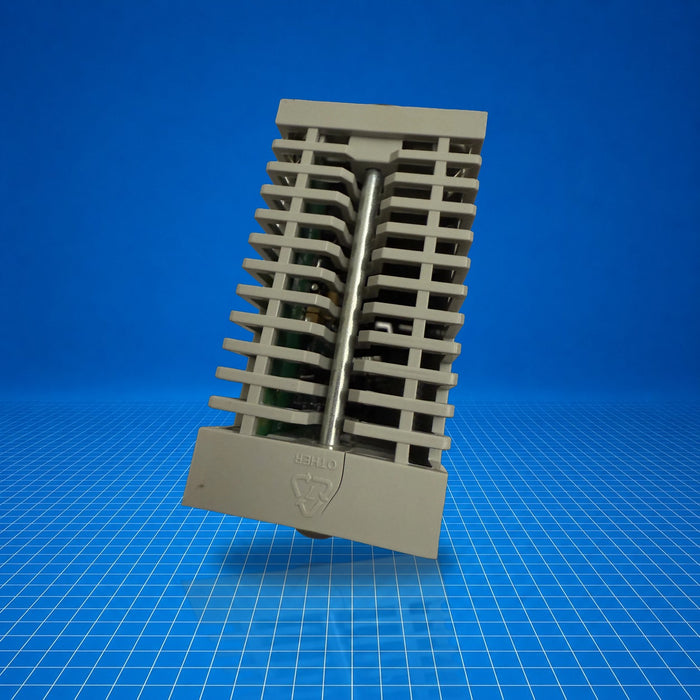

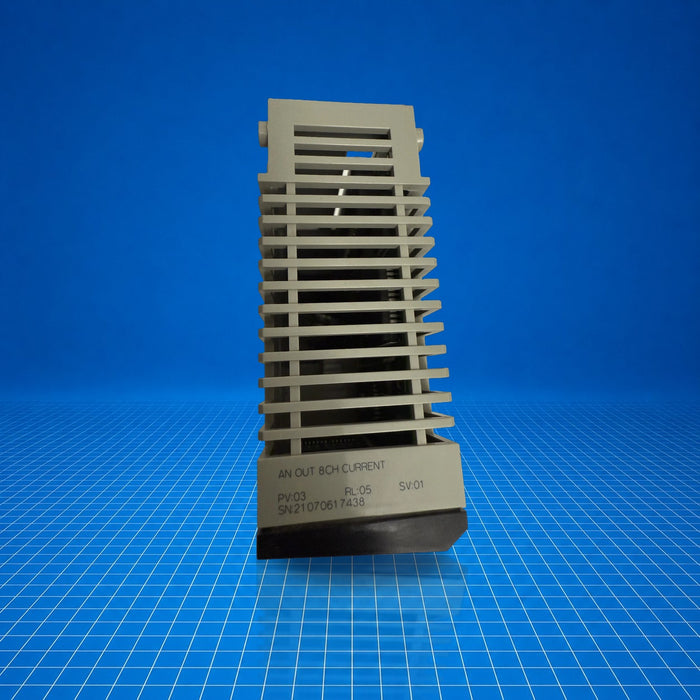

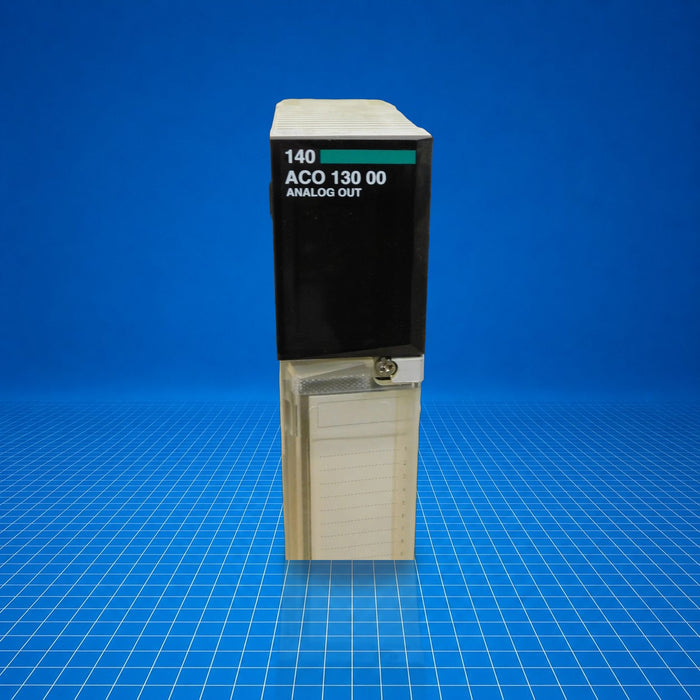

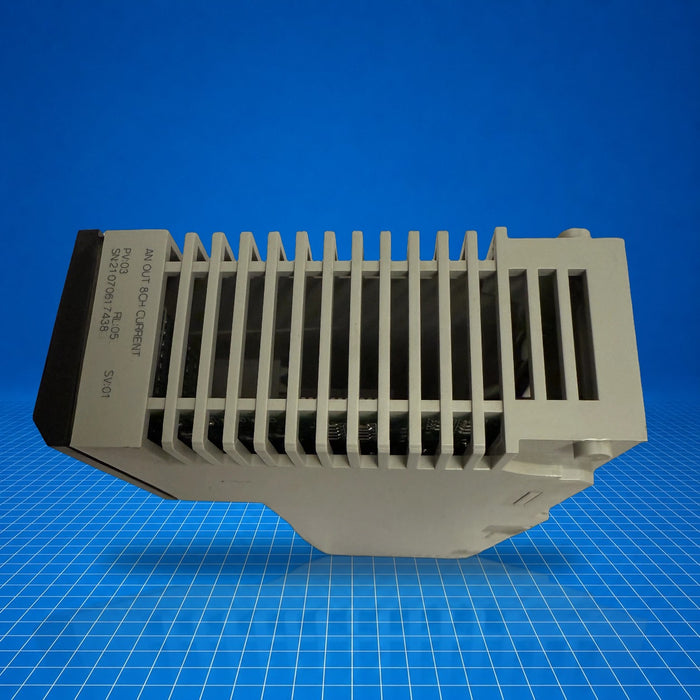

140ACO13000 Schneider
Original price
$390.00
-
Original price
$2,204.98
Original price
$390.00
$390.00
-
$2,204.98
Current price
$390.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

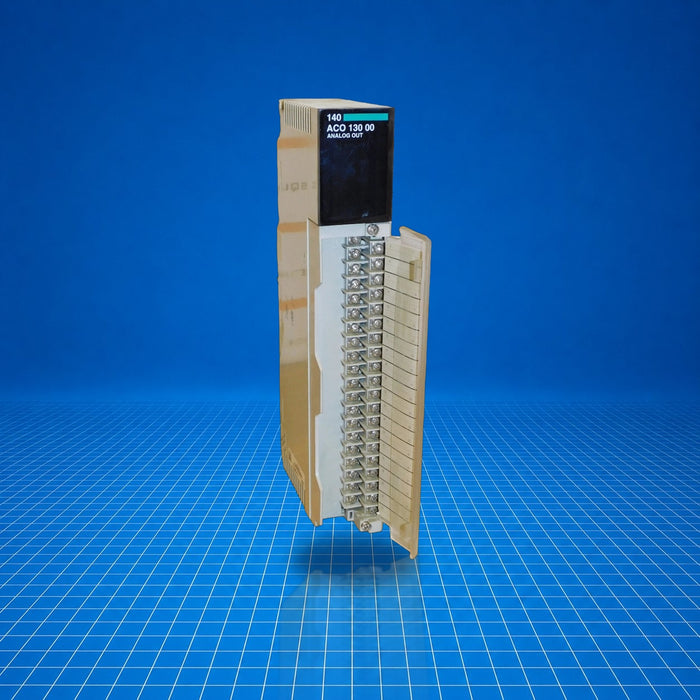

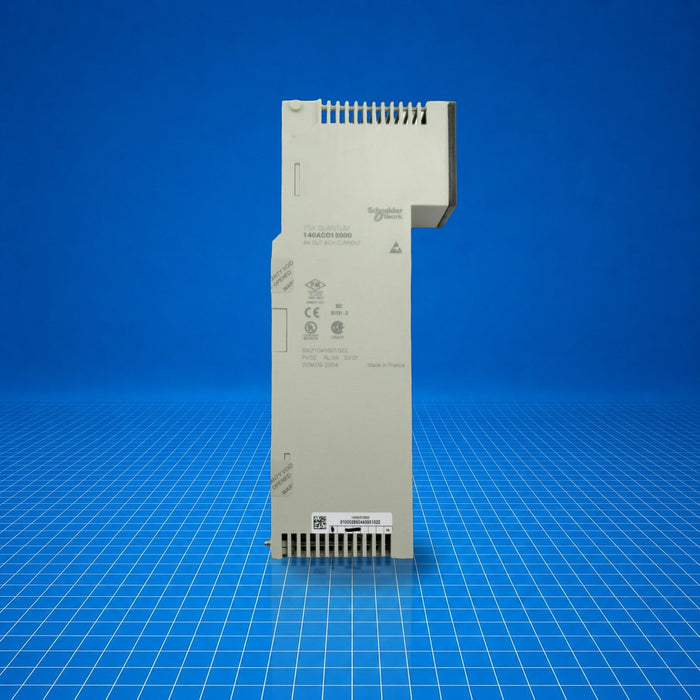

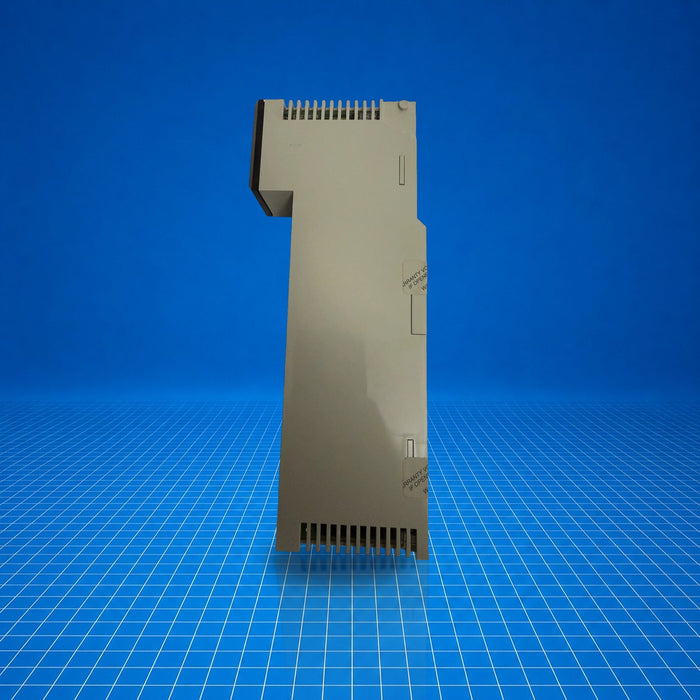

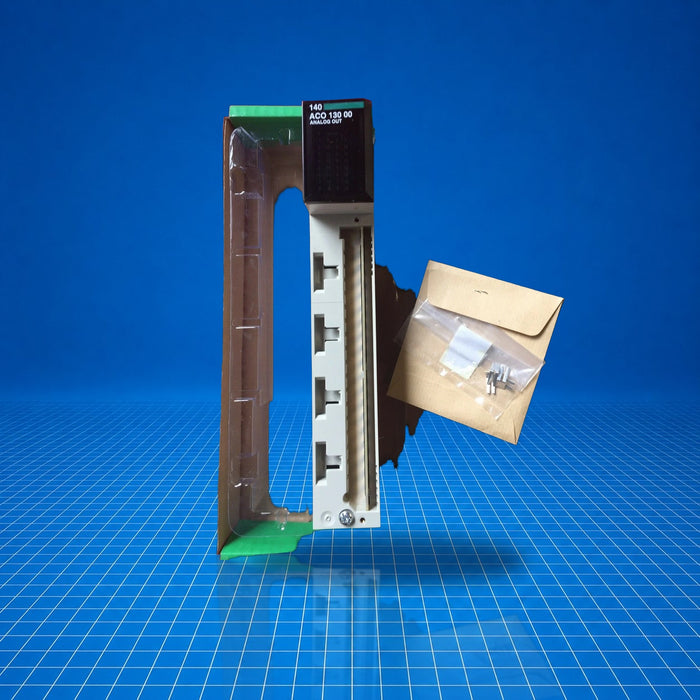

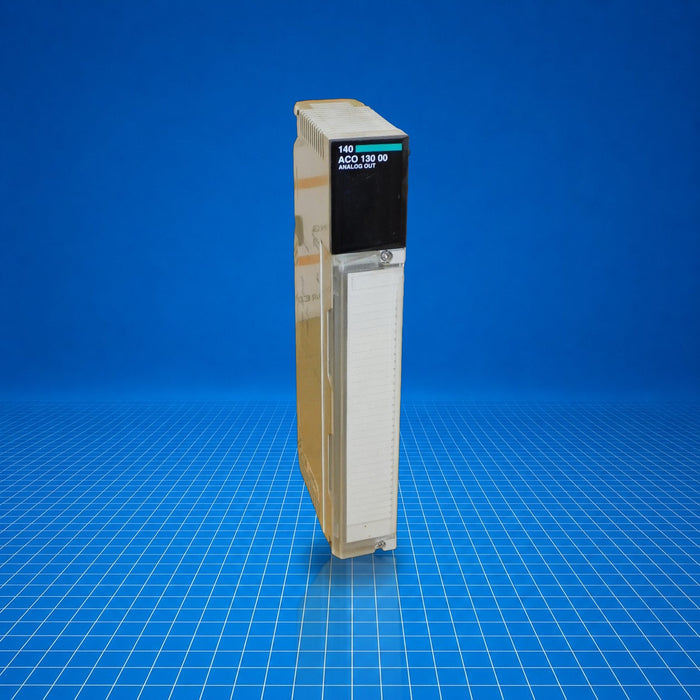

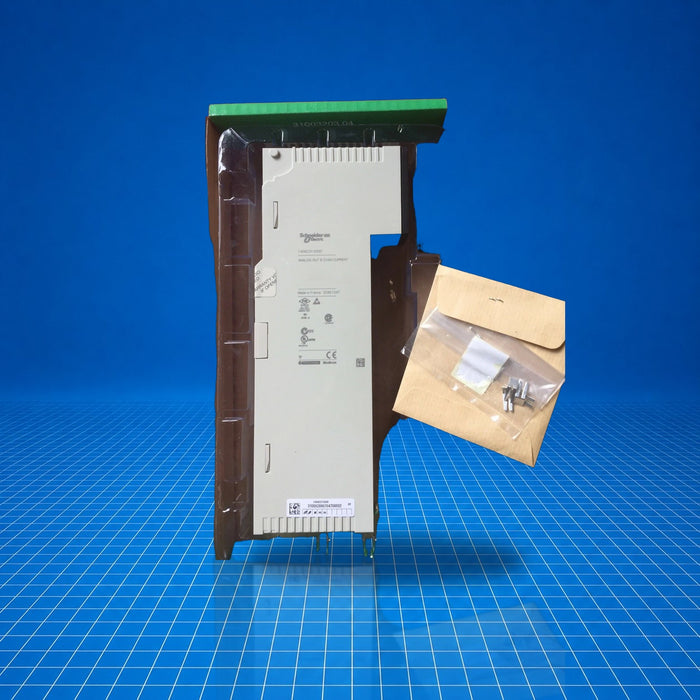

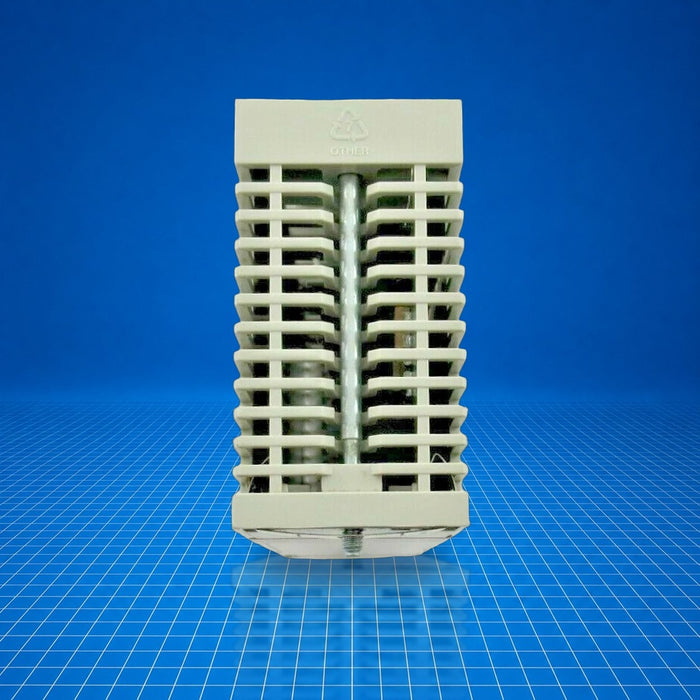

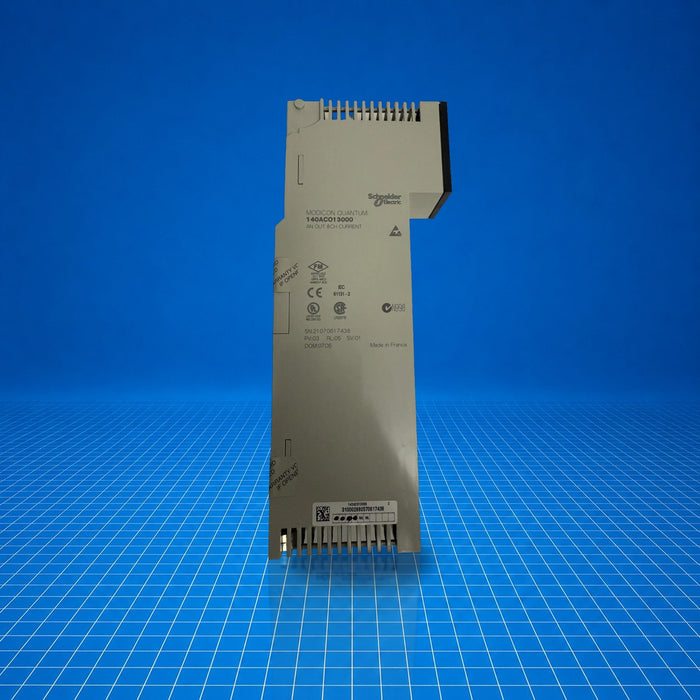

The Schneider Electric 140ACO13000 is an analog output module from the Modicon Quantum platform. It provides eight independent current output channels with multirange capability (0-20 mA, 0-25 mA, 4-20 mA). It integrates into Quantum I/O racks to expand system analog output capabilities in process control or discrete automation. Common applications include loop control, actuator driving, and process feedback in industries like water/wastewater, power generation, and manufacturing. 140ACO13000 is discontinued but remains serviceable until end-of-service December 31, 2030.
Best Suited For
- 8-channel current output expansion in Modicon Quantum systems
- Loop-powered analog control and feedback
- Replacing legacy Quantum analog output I/O
- Multi-range current signaling (0-20 mA, 0-25 mA, 4-20 mA)
Channels
8
Output ranges
0-20 mA, 0-25 mA, 4-20 mA
Module weight
0.3 kg (0.984 kg?)
Discontinued
Yes
Technical Specifications
I/O & Electrical
Number of channels
8
Output current ranges
0-20 mA, 0-25 mA, 4-20 mA
Max loop load (e.g. at 24 V)
720 Ω at 25 mA; 850 Ω at 20 mA (max depends on loop voltage)
Communication & Power
Update time
5 ms
Setting time
3.2 ms to ±0.1 % of final value
Isolation (channels to bus)
1780 V AC for 1 minute
External power supply
6-30 V DC
Maximum current
550 mA
Power dissipation
5 W
Physical & Environmental
Operating temperature
0 °C to +60 °C
Module weight
0.3 kg
Certifications
CE
