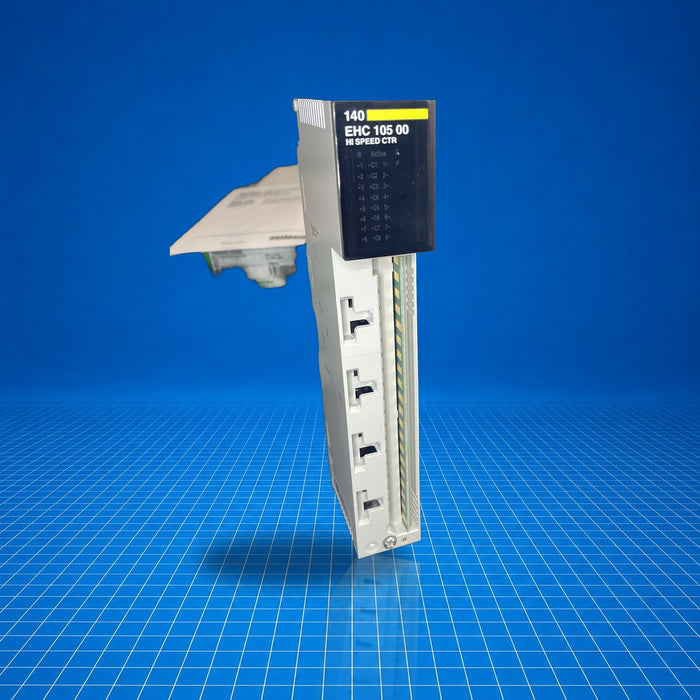

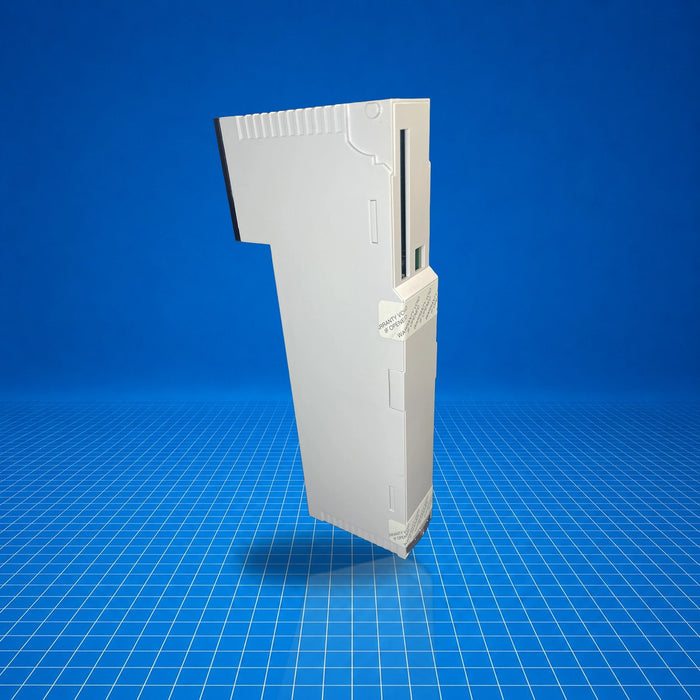

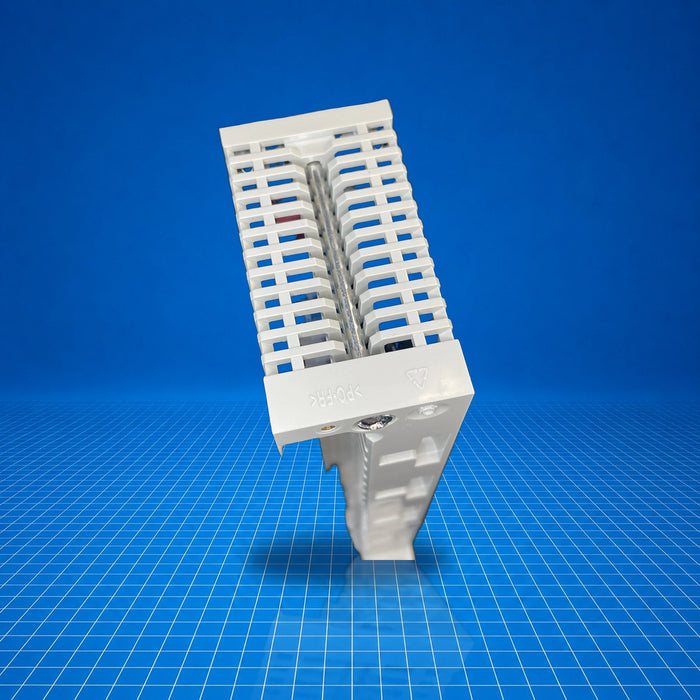

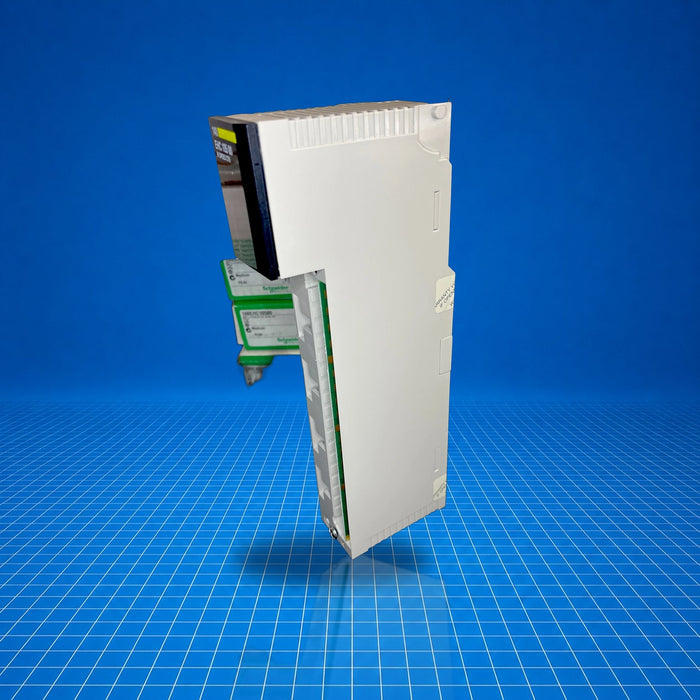

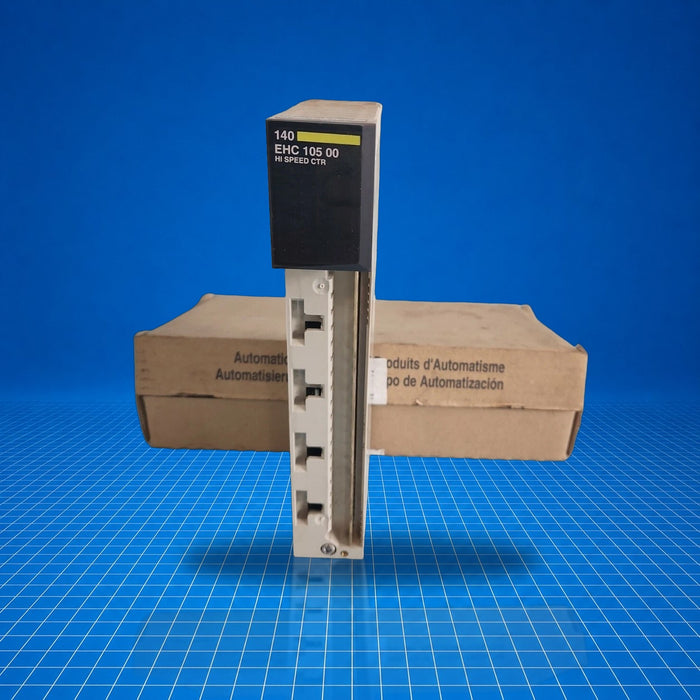

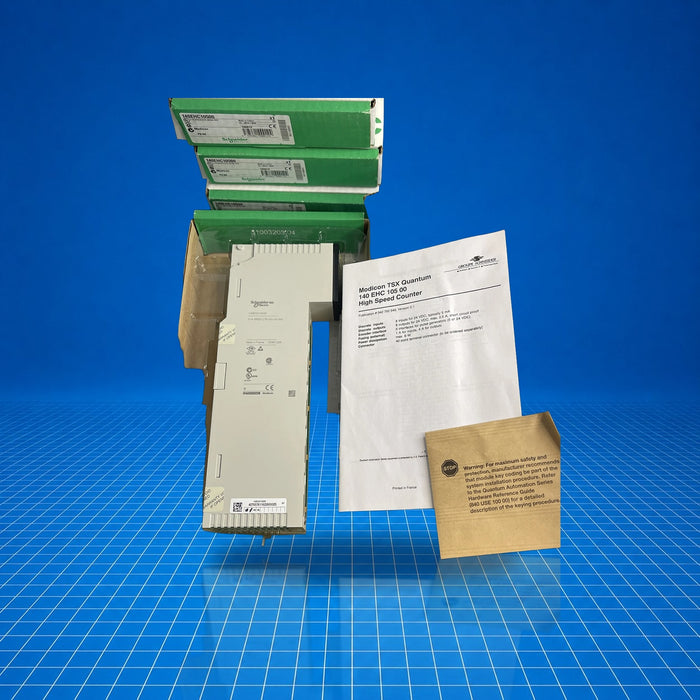

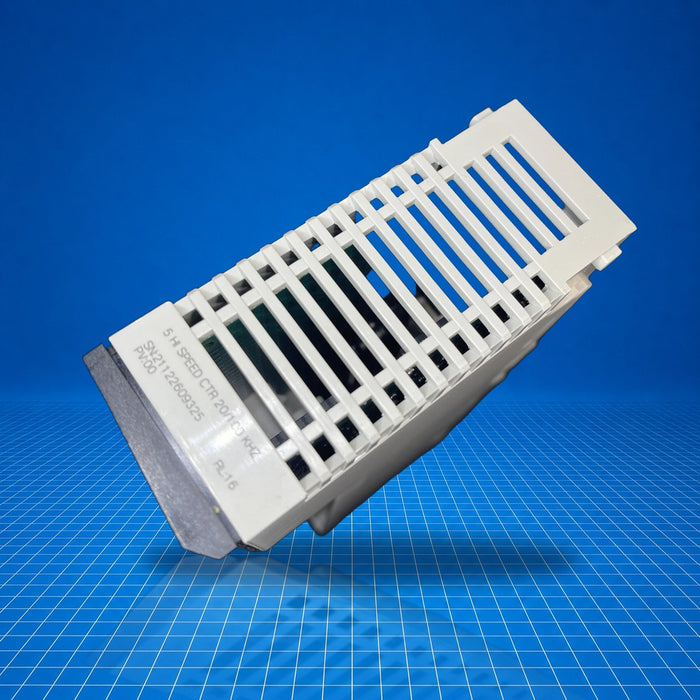

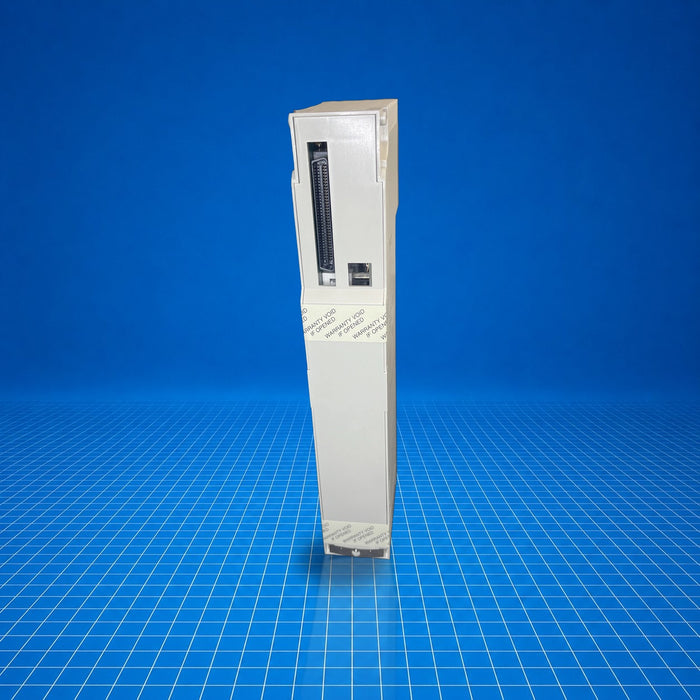

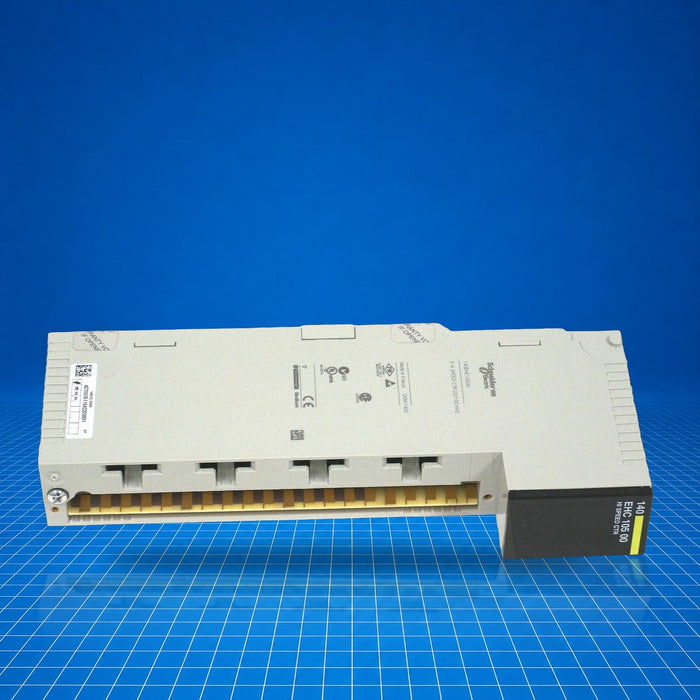

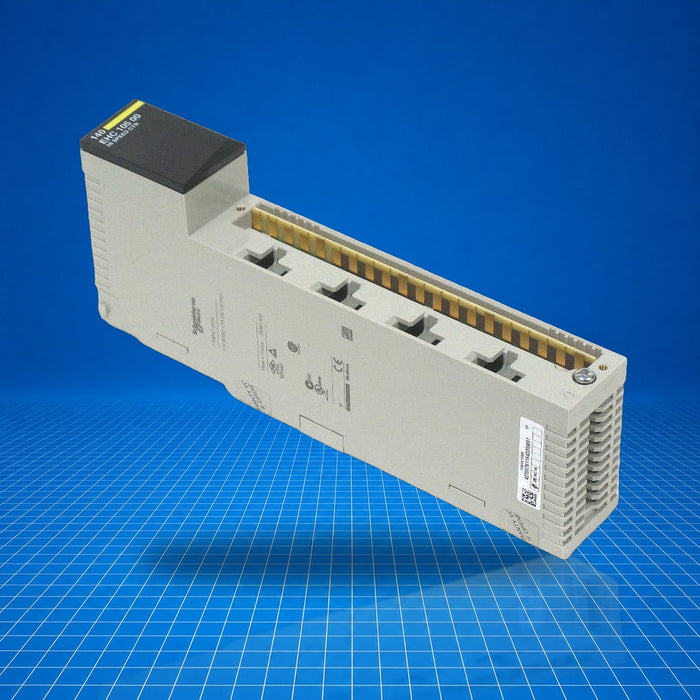

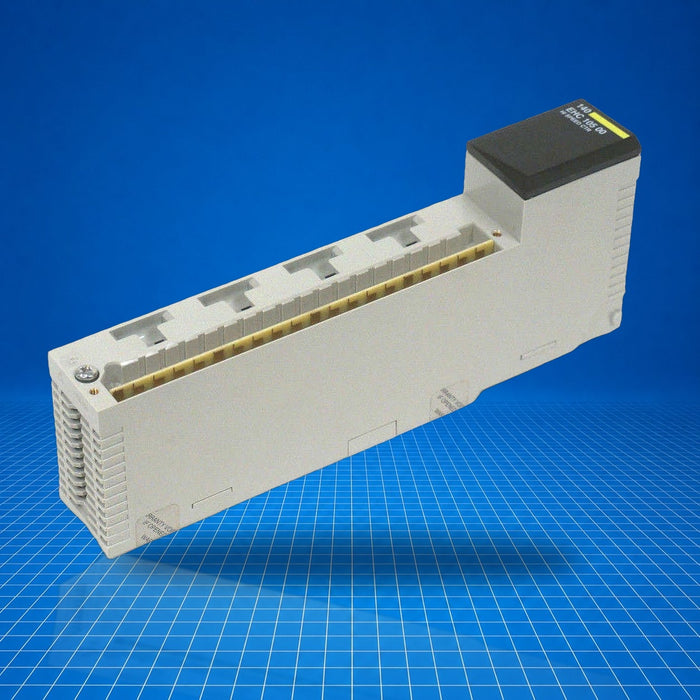

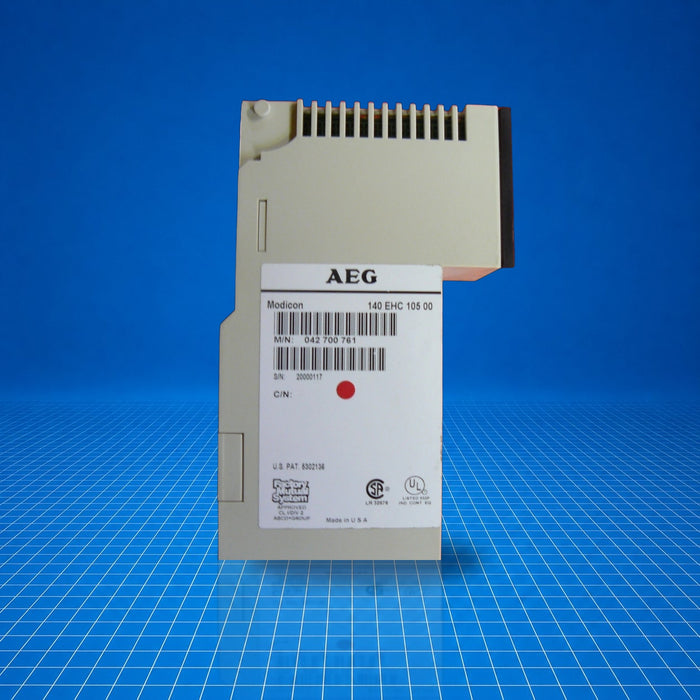

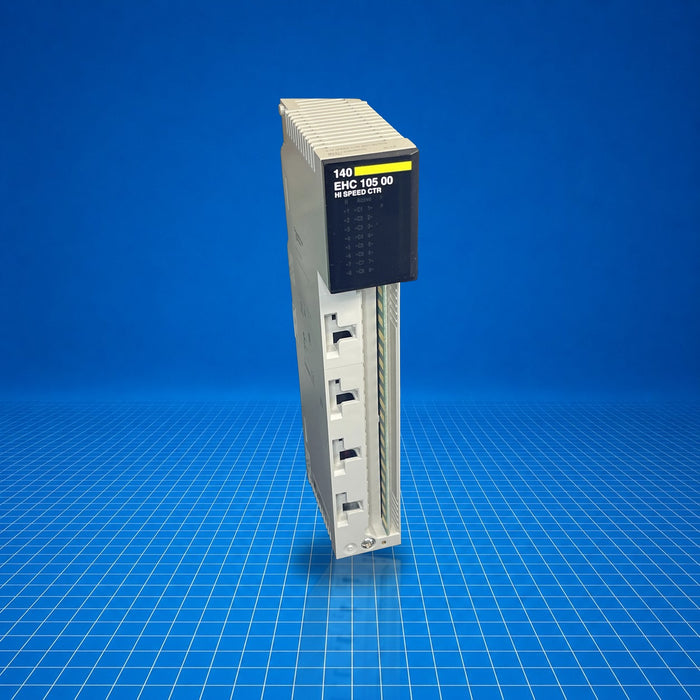

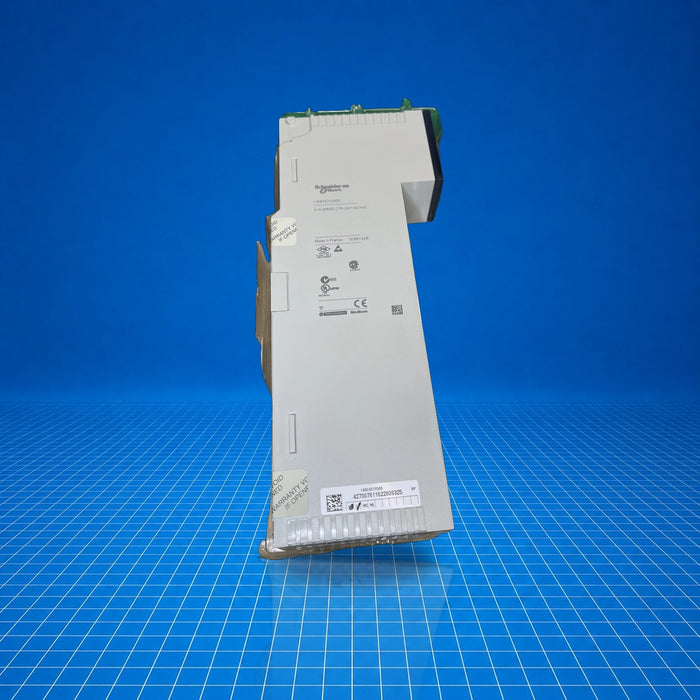

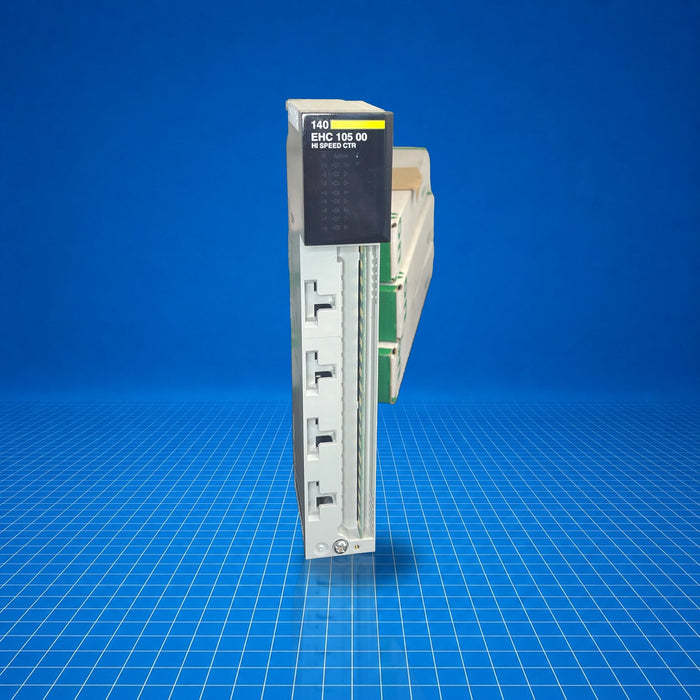

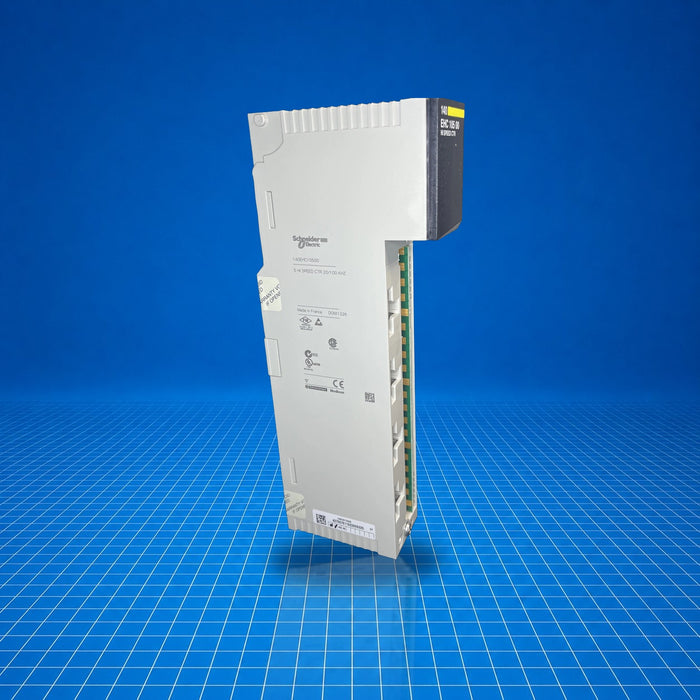

140EHC10500 Schneider
Original price
$420.00
-
Original price
$1,390.30
Original price
$420.00
$420.00
-
$1,390.30
Current price
$420.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 140EHC10500 is a high-speed counter module in the Modicon Quantum automation platform by Schneider Electric. It provides five counter inputs capable of handling frequencies up to 100 kHz (with 5 V logic) or 20 kHz (with 24 V), plus eight discrete inputs and outputs for related logic functions. The module fits into Quantum local or remote I/O racks (RIO), enabling precise pulse counting from incremental encoders or similar devices. It is commonly used in motion control, packaging machinery, registration systems, and other applications requiring accurate high-speed counting.
Best Suited For
- Incremental encoder pulse counting
- High-speed event counting up to 100 kHz
- Quantum remote I/O (RIO) drops
- Discrete logic and high-speed counter integration
Counter inputs
5
Max frequency (5 V)
100 kHz
Discrete I/O
8 inputs + 8 outputs
Power bus current
250 mA
Power dissipation
6 W
Technical Specifications
I/O & Electrical
Counter input frequency
100 kHz (5 V), 20 kHz (24 V)
Discrete input voltage
24 V c
Discrete input current (typical)
5 mA
Discrete input state-1 voltage
15...30 V c
Output type
24 V c FET
Output load current max
210 mA
Communication & Power
Bus current required
250 mA
Power dissipation
6 W
External supply voltage (Uᵉˣᵗ)
19.2...30 V c
Physical & Environmental
Mounting
Local or remote (RIO) rack
