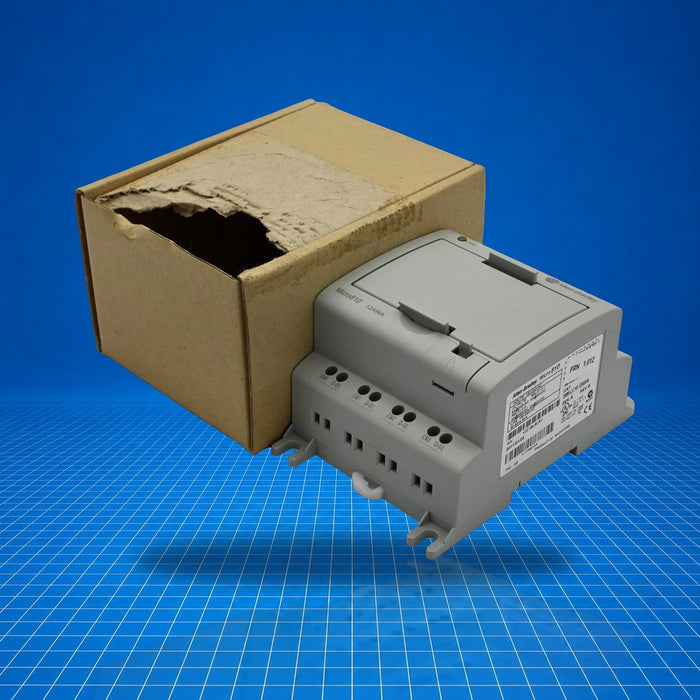

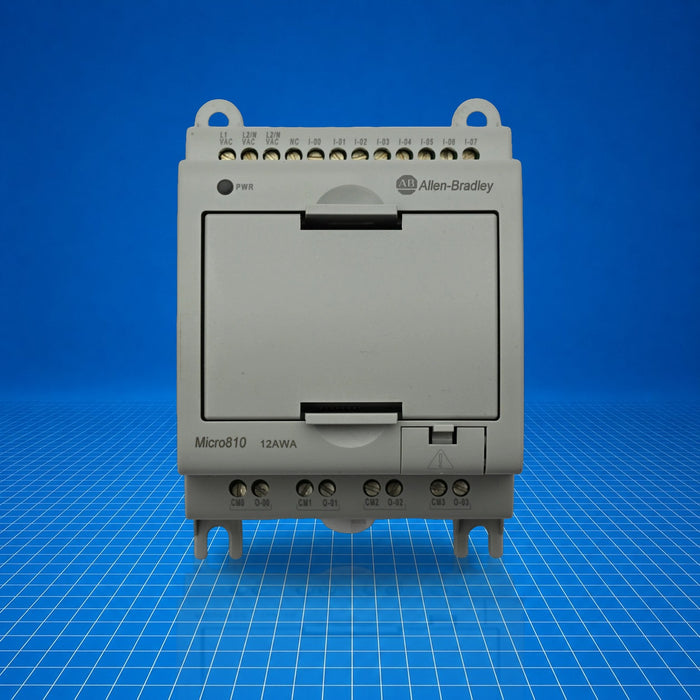

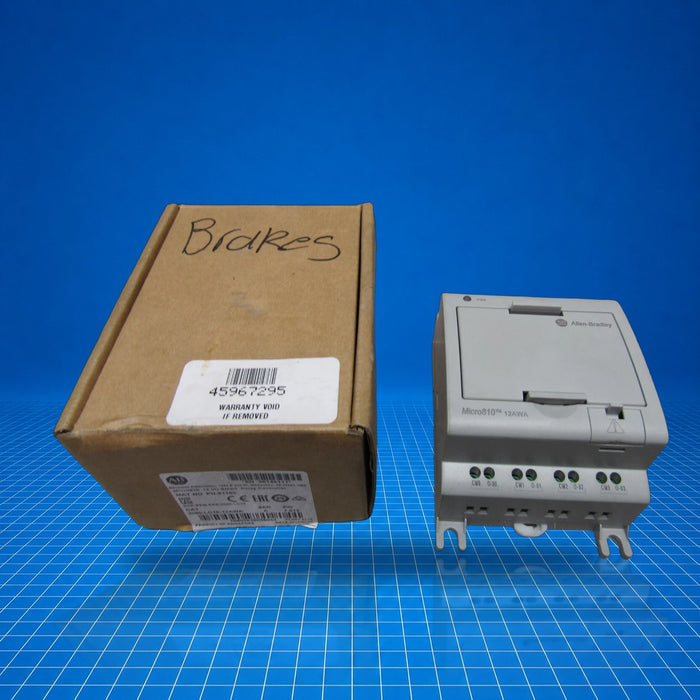

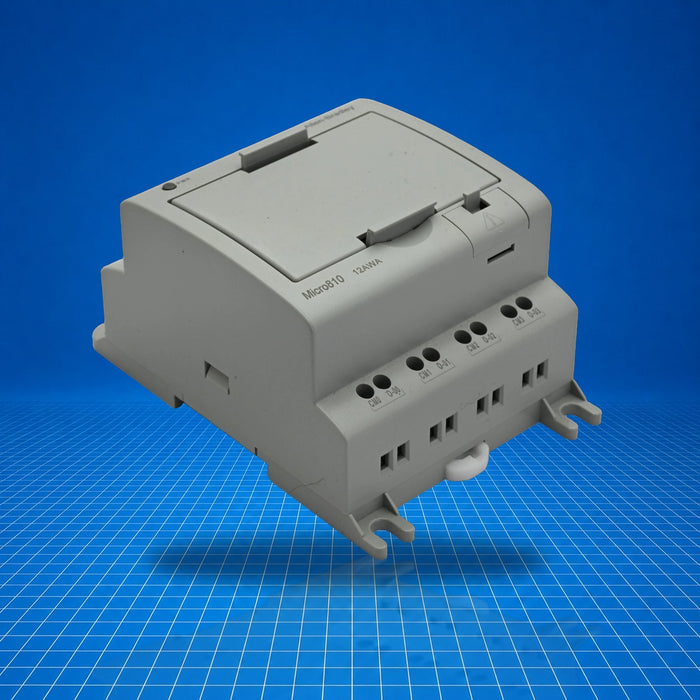

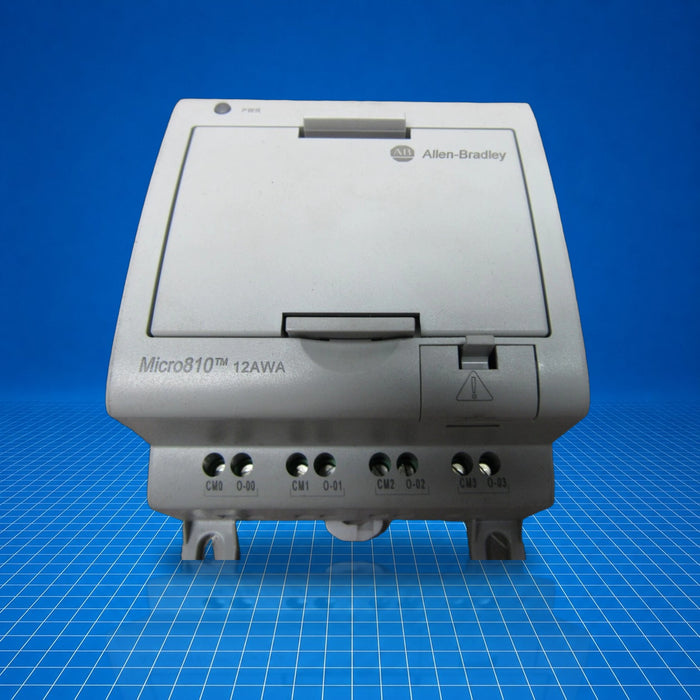

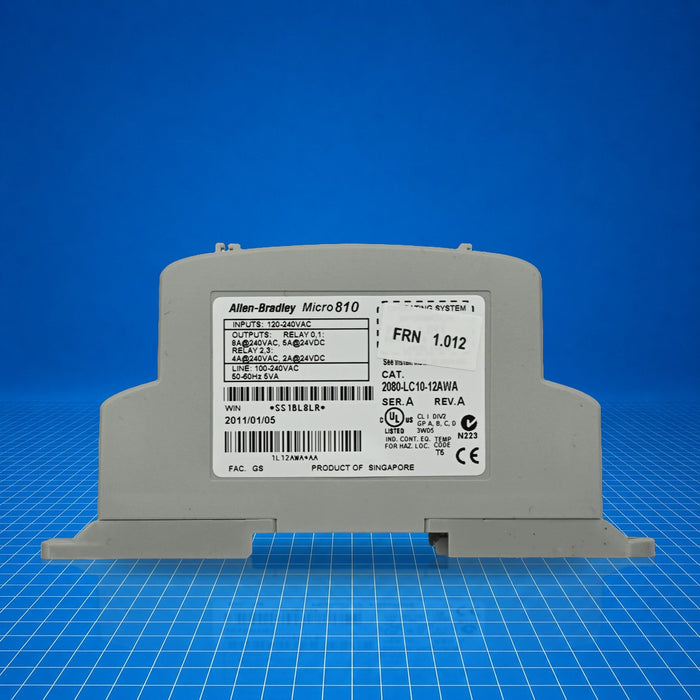

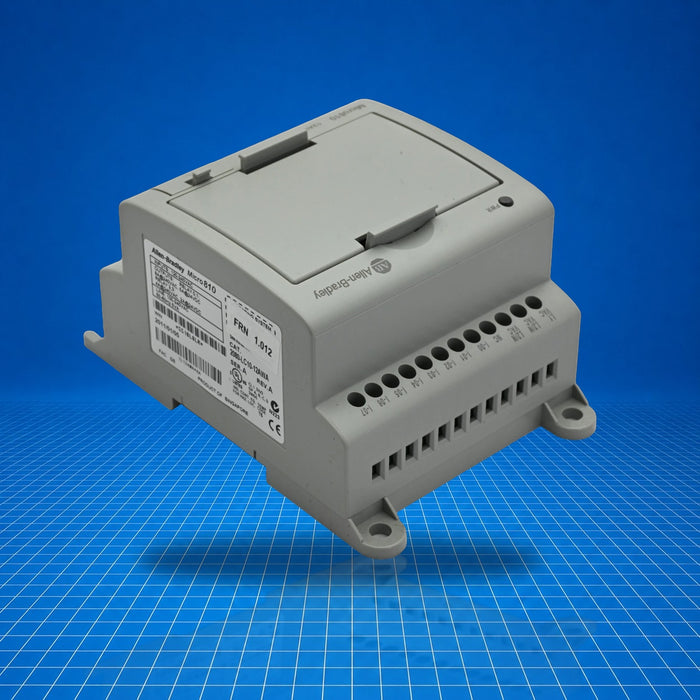

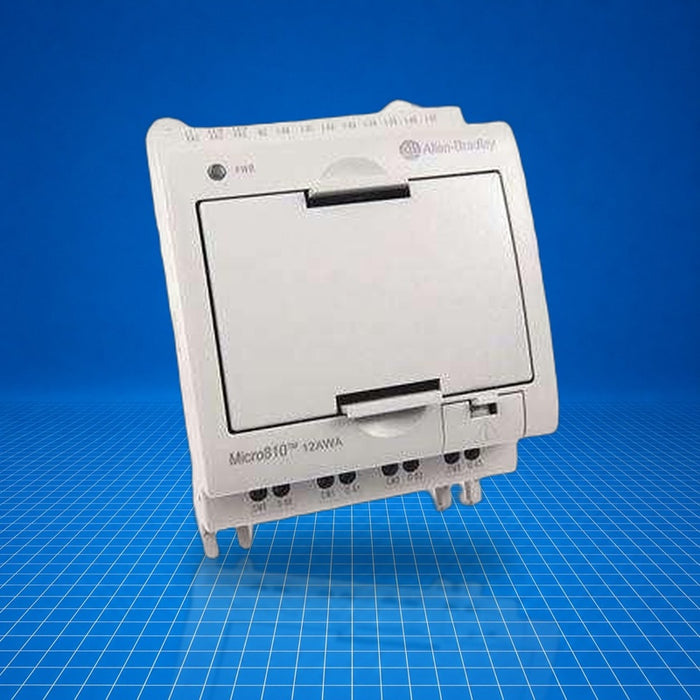

2080-LC10-12AWA Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

2080-LC10-12AWA Allen-Bradley

$357.00 - $400.00
$400.00
$357.00 - $400.00
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$357.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 2080-LC10-12AWA is an Allen-Bradley Micro810 smart relay controller featuring 12 total I/O points-8 inputs (4 digital, 4 configurable analog/digital) and 4 relay outputs. It serves as a compact, standalone logic controller in packaging machines, small conveyors, and simple process control applications. Configurable via Connected Components Workbench, it supports control and monitoring tasks where minimal footprint and integrated I/O suffice. 2080-LC10-12AWA provides AC-powered digital input and relay output control in distributed and OEM systems.

Best Suited For

  • Standalone small-machine logic control
  • Packaging and conveyor on-machine control
  • Replace hard-wired relays in legacy panels
  • OEM control modules with integrated I/O
Inputs / Outputs
8 inputs, 4 relay outputs
Supply voltage
100-240 V AC (47-63 Hz)
Dimensions
91 × 75 × 59 mm
Protection rating
IP20

Technical Specifications

I/O & Electrical

Number of inputs
8 (4 digital, 4 analog/digital configurable)
Number of outputs
4 relay
Input voltage rating
120-240 V AC
On-state voltage range (input)
79-265 V AC
Off-state voltage max
40 V AC
Off-state current max
0.095 mA
Output current rating
Relay 00 & 01: 8 A @ 240 V AC; Relay 02 & 03: 4 A @ 240 V AC

Communication & Power

Supply voltage range
100-240 V AC; also 85-263 V DC range
Supply frequency (AC)
47-63 Hz
Power consumption
5 VA (≈3 W)

Physical & Environmental

Dimensions (H×W×D)
91 × 75 × 59 mm
Weight
0.203 kg
Enclosure rating
IP20
Wire size-solid
0.32-2.1 mm² (22-14 AWG)
Wire size-stranded
0.32-1.3 mm² (22-16 AWG)
Temperature code
T5 (North America)

Certifications

Certified UL Listed, CE, Korean KC, Australian RCM, UL Listed Hazardous as of 2026-05-19.
