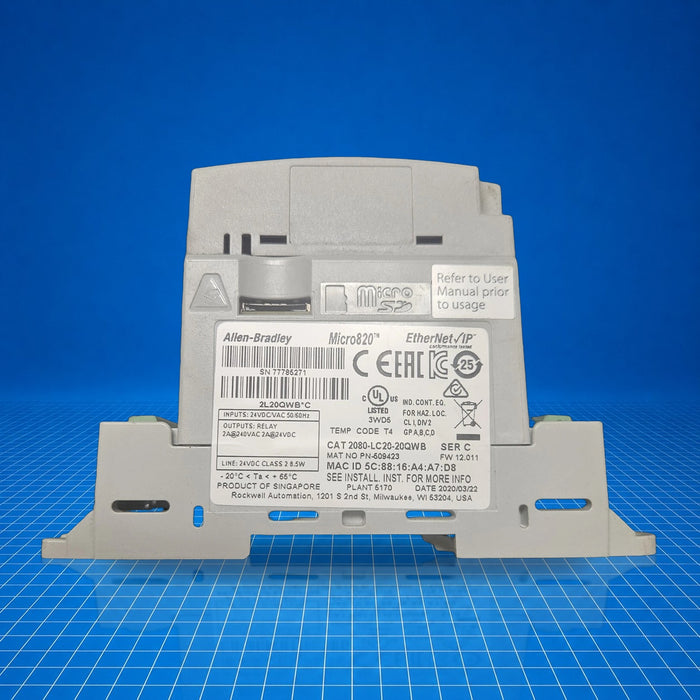

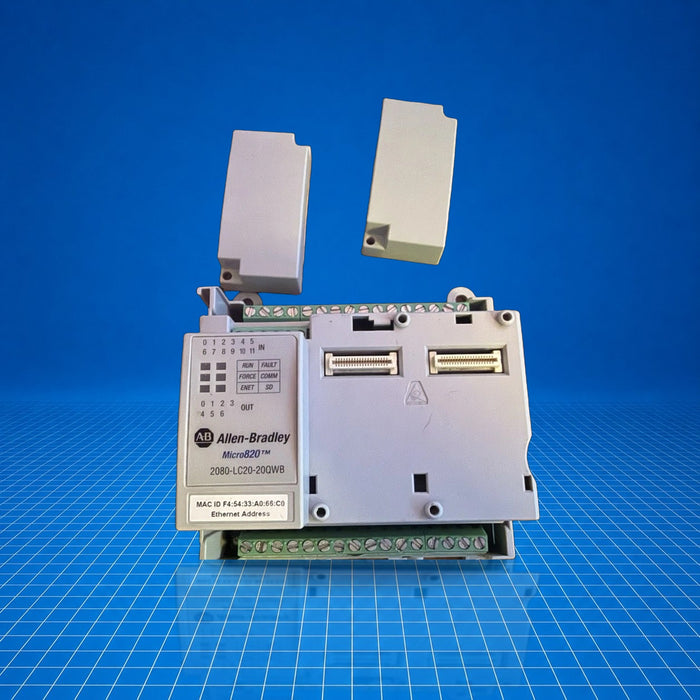

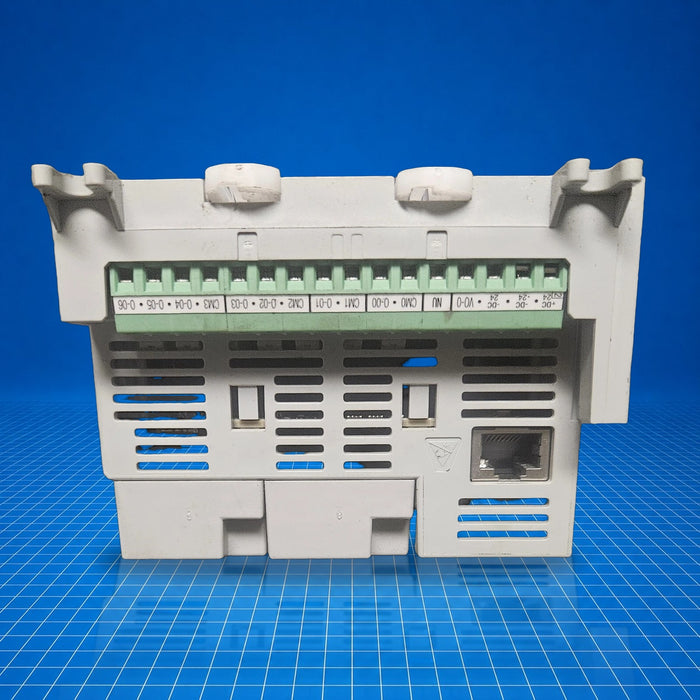

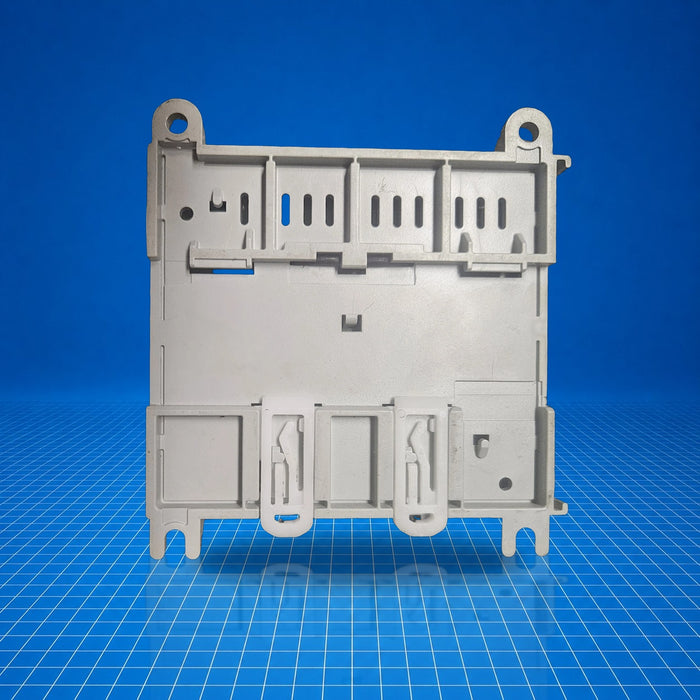

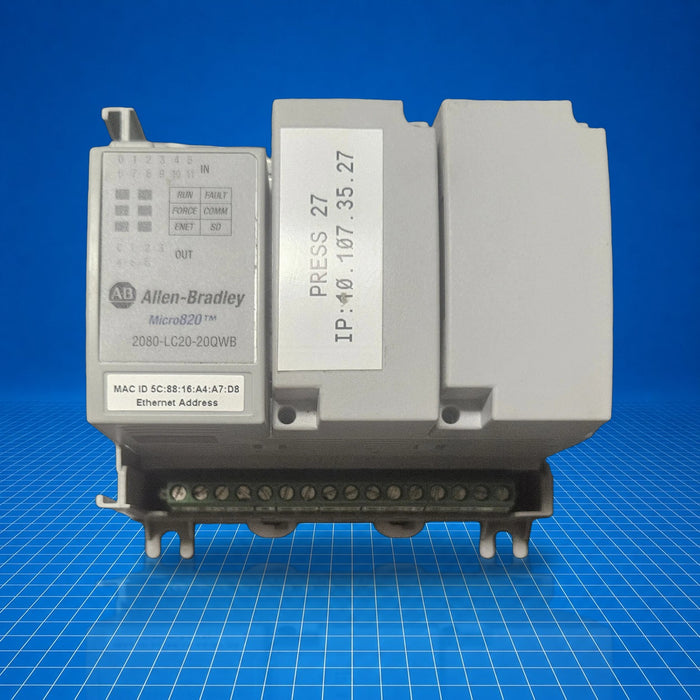

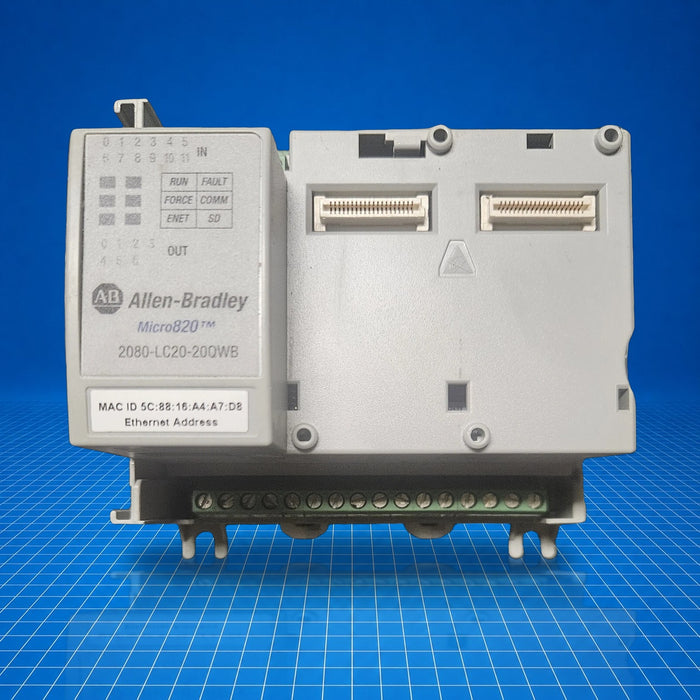

2080-LC20-20QWB Allen-Bradley

Name: 2080-LC20-20QWB Allen-Bradley
Brand: Allen Bradley
SKU: 2080-LC20-20QWB
Price: 599.97 USD
Availability: InStock

$330.00 - $599.97

$599.97

$330.00 - $599.97

$599.97

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 2080-LC20-20QWB is an Allen-Bradley Micro820 programmable controller within the Micro800 family. It provides 12 discrete 24 V DC inputs, 7 relay outputs and one 0-10 V analog output, plus four configurable analog inputs. It includes embedded Ethernet and RS-232/485 (non-isolated) serial communication, microSD card support, real-time clock (RTC) and two plug-in expansion slots. It serves in compact machine control, small system integration, and modular OEM applications.

Best Suited For

Small machine control via Micro820 platform
Embedded discrete and analog I/O applications
EtherNet/IP or serial-based communications in compact systems
Compact expandable PLC installations using plug-in modules

Discrete I/O

12 inputs / 7 relay outputs

Analog I/O

4 analog inputs (configurable) + 1 analog output

Communication

Ethernet + RS-232/485 serial

Expansion

2 plug-in slots

Power Dissipation

5.62 W (no plug-ins) / 8.5 W (with plug-ins)

Technical Specifications

I/O & Electrical

Discrete inputs

12 × 24 V DC sink/source, 8.8 mA per point

Analog inputs

4 configurable analog inputs (0-10 V shared with 24 V DC)

Relay outputs

7 relay outputs, 2 A at 240 V AC / 1 A at 24 V DC (1 A per point at 30 °C, 0.3 A per point at 65 °C)

Analog output

1 × 0-10 V

Communication & Power

Power input

24 V DC

Supply voltage range

20.4-26.4 V DC, Class 2

Power dissipation, max

5.62 W (without plug-ins), 8.5 W (with plug-ins)

Auxiliary supply for thermistor

10 V

Serial port

RS-232/RS-485 non-isolated

Physical & Environmental

Enclosure rating

IP20

Expansion slots

2 plug-in slots

microSD support

Embedded microSD card slot

RTC

Embedded real-time clock
