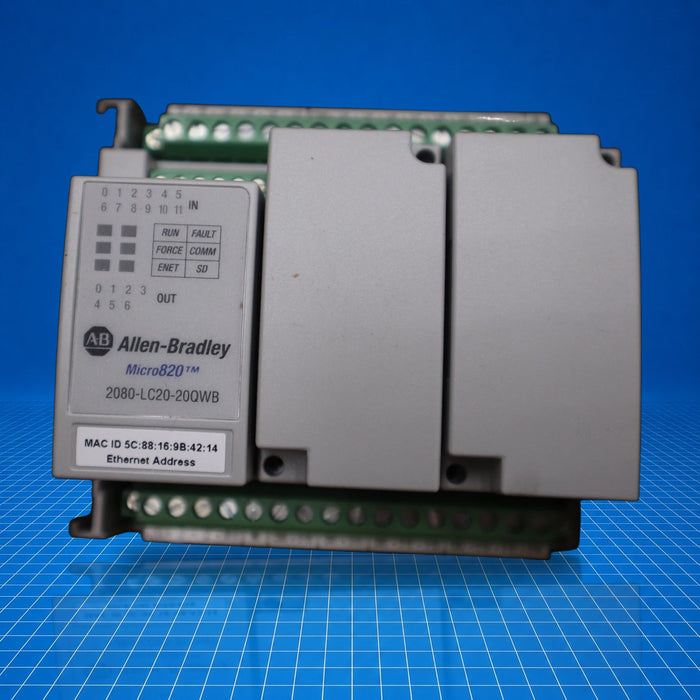

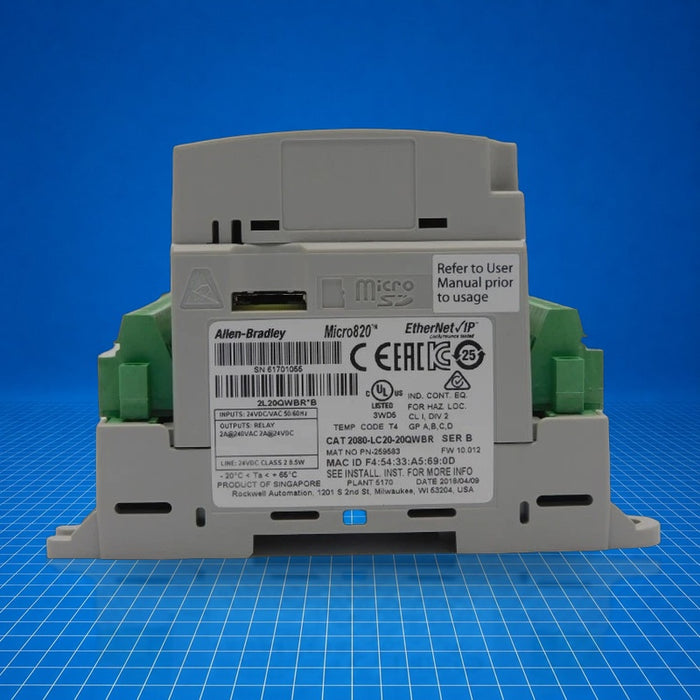

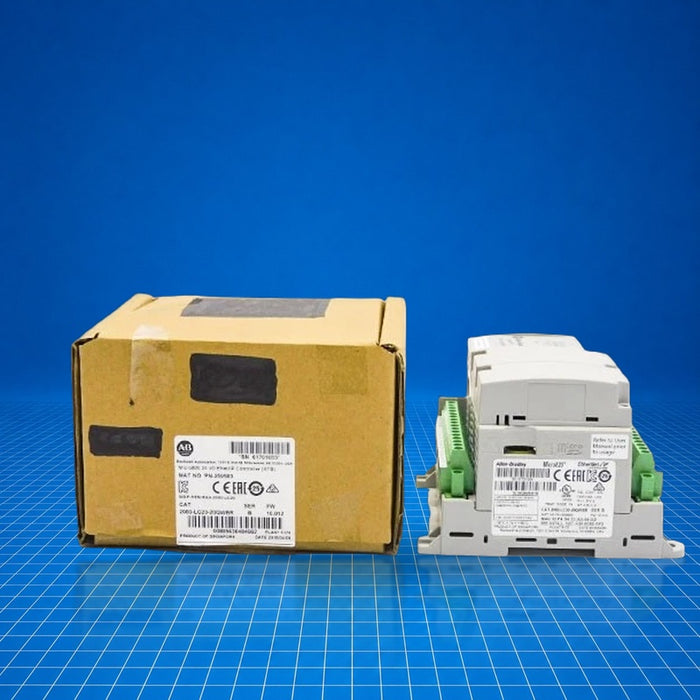

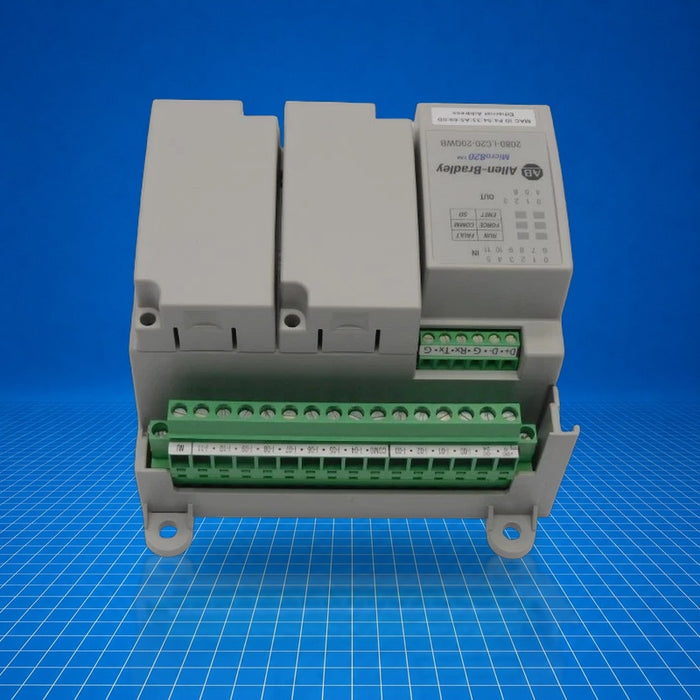

2080-LC20-20QWBR Allen-Bradley

Original price $600.00 - Original price $618.75
Original price
$618.75
$600.00 - $618.75
Current price $618.75
Surplus - Tested (With Warranty)
Need a Specific Revision?
$618.75
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$600.00
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 2080-LC20-20QWBR is an Allen-Bradley Micro820 programmable logic controller. It provides 20 I/O points (12 digital 24 V DC inputs, 7 relay outputs, 1 analog output) with additional embedded analog inputs and communication interfaces. It serves as a compact automation controller in small machine or remote applications requiring mixed digital/analog control, networking via Ethernet or serial, and expandable I/O capability. 2080-LC20-20QWBR integrates microSD support for data storage and optional plug-in modules.

Best Suited For

  • Compact standalone machine control
  • Remote automation requiring mixed digital/analog I/O
  • Small-scale process control with data logging
  • Applications needing Ethernet and serial communication
  • Systems requiring microSD-based recipe or log storage
Digital inputs
12 (24 V DC)
Relay outputs
7
Analog I/O
4 AI, 1 AO (0-10 V)
Communications
Ethernet + RS-232/RS-485 + microSD
Power consumption
~5.6 W (6 W dissipation)

Technical Specifications

I/O & Electrical

Digital inputs
12 (24 V DC)
Input on-state voltage range
9.8-26.4 V DC
Relay outputs
7
Analog inputs
4 (0-10 V, shared with digital)
Analog output
1 (0-10 V)
Pilot duty rating
C300, R150

Communication & Power

Power supply voltage range
20.4-26.4 V DC, Class 2
Power consumption
approx. 5.62 W
Power dissipation
6 W
Embedded Ethernet
Yes, RJ45; supports EtherNet/IP, Modbus TCP, Modbus RTU, DHCP, TCP/UDP sockets
Serial port
RS-232/RS-485 non-isolated (38,400 baud)
microSD slot
Yes, for data logs/recipes

Physical & Environmental

Dimensions (HxWxD)
3.54 × 4.09 × 2.95 in (90 × 104 × 75 mm)
Weight
0.38 kg (0.83 lb)
Enclosure rating
Meets IP20
Operating temperature
-20 to 65 °C
Terminal blocks
Removable; wiring 0.14-2.5 mm²
