LC1D32B7 Schneider Electric
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

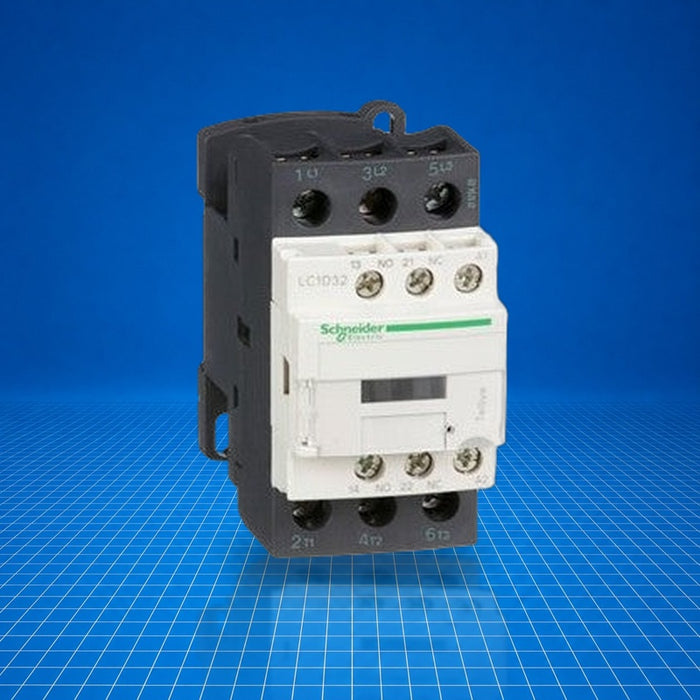

The Schneider Electric LC1D32B7 is a TeSys Deca series three-pole AC-3 non-reversing contactor rated for 32 A (≤ 440 V) and designed to control three-phase motors. It integrates a 24 V AC 50/60 Hz coil and includes one normally open (NO) plus one mechanically linked normally closed (NC) auxiliary contact, with the NC contact mirror-certified. The contactor supports direct-on-line motor starting up to 20 HP at 480 VAC and is used in applications requiring reliable motor switching, coordination in Type 1 starter assemblies, and high electrical endurance. Part number LC1D32B7.
Best Suited For
- Direct-on-line three-phase motor control
- Type 1 motor starter assemblies
- Facilities requiring IEC/UL/CSA certification
- Environments with up to 3600 cycles/hour demands
- Applications needing compact DIN-rail or screw mounting
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Compliant with IEC 60947, UL, CSA, CCC, EAC, Marine; IEC 60335-1 compliance; pollution degree 3; overvoltage category III.
