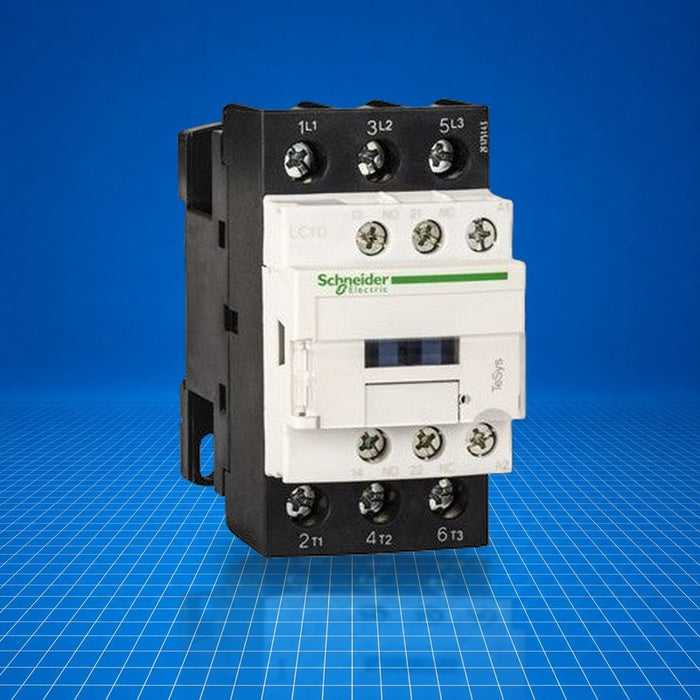

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
LC1D32P7 Schneider Electric
Original price
$378.00
-
Original price
$400.00
Original price
$378.00
$378.00
-
$400.00
Current price
$378.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The LC1D32P7 is a Schneider Electric TeSys D three-pole (3 NO) AC-3 contactor designed for power control in industrial systems. With a 32 A rated current and ≤440 V AC switching capability, it features a 230 V AC 50/60 Hz coil and built-in auxiliary contacts. Typical installations include motor starting, on-machine control panels, and industrial automation applications where compact, DIN-rail or screw mounting is required.
Best Suited For
- Three-phase motor control up to 32 A
- AC-3 category switching (motors)
- Compact control panels (45 mm width)
- DIN-rail or screw-fixed installations
- Applications requiring built-in auxiliary contact
Rated current
32 A
Control voltage
230 V AC (50/60 Hz)
Poles
3 NO
Width
45 mm
Weight
0.375 kg
Technical Specifications
I/O & Electrical
Power circuit rated current
32 A
Utilisation category
AC-3 / AC-3e
Control circuit voltage limits
0.8…1.1 Uc at 50 Hz; 0.85…1.1 Uc at 60 Hz operational; 0.3…0.6 Uc drop-out
Inrush power
70 VA at 20 °C (cos φ 0.75), 50/60 Hz
Hold-in power
7 VA at 20 °C (50 Hz), 7.5 VA (60 Hz)
Heat dissipation
2…3 W at 50/60 Hz
Communication & Power
Auxiliary contacts
1 NO + 1 NC, mechanically linked; NC mirror contact
Physical & Environmental
Mounting
DIN-rail or screw
Dimensions (H×W×D)
85 mm × 45 mm × 92 mm
Weight
0.375 kg
Operating ambient temp.
-20…60 °C (-40…70 °C with derating)
Storage temp.
-60…80 °C
Protection
IP2x front face
Mechanical robustness
Shocks open 8 g/11 ms, closed 15 g/11 ms; Vibrations open 2 g, closed 4 g (5…300 Hz)
Certifications
IEC 60947-4-1IEC 60947-5-1ULCSAGreen Premium
Certified to IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, IEC 60335-1 Clause 30.2, IEC/EN/UL 60335-2-40 Annex JJ; flame-retardant V-1 per UL 94; Green Premium (RoHS/REACh compliant).
