LC1D65AM7 Schneider Electric-Schneider-Never Used Surplus-PLC Department
Product image is representative; revision or series may vary.
Contact us to request a specific version.

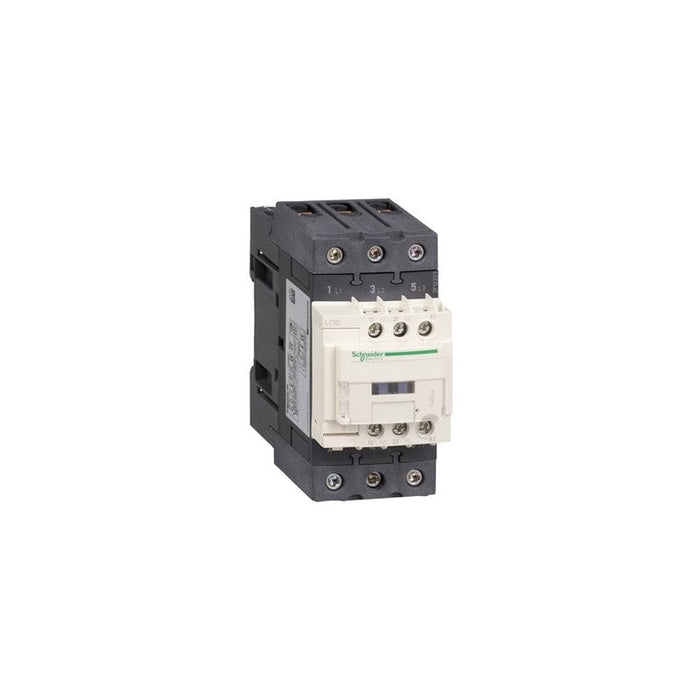

LC1D65AM7 Schneider Electric

$629.75 - $687.50
$629.75
$629.75 - $687.50
$629.75
Surplus - Tested (With Warranty)
Need a Specific Revision?
$629.75
3 in stock
New / Open-Box Surplus
Need a Specific Revision?
$687.50
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The LC1D65AM7 is a Schneider Electric TeSys D series three-pole (3 NO) AC-3 contactor rated for up to 65 A at ≤ 400 V AC with a 220 V AC 50/60 Hz control coil. It interfaces between control systems and motor power circuits, enabling switching of motors up to 30 kW (AC-3 at 380-400 V). Typical uses include motor control in industrial and HVAC applications. Part number LC1D65AM7.

Best Suited For

  • Three-phase motor control up to 65 A
  • HVAC systems
  • Industrial automation panels
  • Replacement in TeSys D contactor assemblies
Poles / Contacts
3 P / 3 NO
Rated current (AC-3)
65 A
Control coil
220 V AC 50/60 Hz
Maximum motor power (380-400 V AC)
30 kW

Technical Specifications

I/O & Electrical

Rated operational current (AC-3)
65 A (≤ 60 °C) at ≤ 440 V AC
Rated operational current (AC-1)
80 A (≤ 60 °C) at ≤ 440 V AC
Rated operational voltage
≤ 690 V AC (25-400 Hz); ≤ 300 V DC (power circuit)
Motor power (380-400 V AC AC-3)
30 kW
Motor power (220-230 V AC AC-3)
18.5 kW
Auxiliary contacts
1 NO + 1 NC

Communication & Power

Coil voltage
220 V AC 50/60 Hz

Physical & Environmental

Width
75 mm
Height
127 mm
Depth
119 mm
Weight
1.4 kg
Ambient operating temperature
-5…60 °C
Ambient storage temperature
-60…80 °C
Altitude (no derating)
≤ 3000 m
Heat dissipation (control circuit)
4…5 W at 50/60 Hz
IP rating
IP2x

Certifications

EN 60947-4-1EN 60947-5-1UL 508CSADNVGLCCC

Standards: EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14. Certifications include BV, CCC, CSA, DNV, GL, GOST, Lloyd's RINA, UL. Fire resistance: 850 °C (IEC 60695-2-1). Mechanical & electrical endurance: mechanical durability 6 000 000 cycles; B10d = 13 698 863 cycles (nominal load) / 20 000 000 cycles (mechanical load). Shock/vibration: 15 gn closed, 10 gn open; vibration 4 gn closed, 2 gn open (5-300 Hz).
