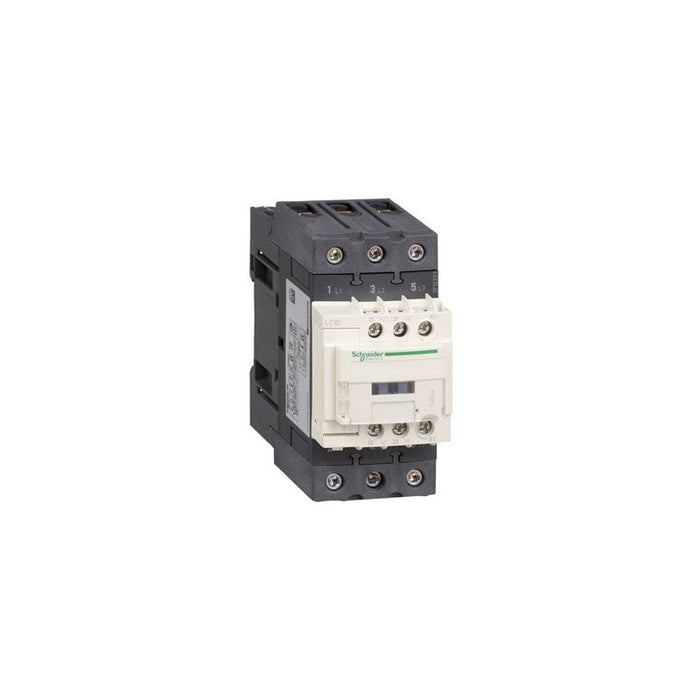

LC1D65AP7 Schneider Electric
Original price
$646.22
-
Original price
$646.91
Original price
$646.91
$646.22
-
$646.91
Current price
$646.91
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The LC1D65AP7 is a TeSys D (part of the LC1D family) non-reversing 3-pole contactor by Schneider Electric. It is designed for AC-3 motor control applications up to 65 A (≤ 440 V AC), utilizing a 230 V AC 50/60 Hz control coil. In power systems, it controls three-phase motors and switching operations. It is commonly applied in industrial motor starters, HVAC systems, pump control panels, and general-purpose motor switching in manufacturing and infrastructure environments. LC1D65AP7 integrates into contactor/overload relay combinations for standard motor control circuits.
Best Suited For
- Three-phase AC motor start/stop control (AC-3)
- HVAC motor control applications
- Pump and fan motor switching panels
- Integration into motor starter assemblies
Rated operational current (AC-3)
65 A (≤ 60 °C, ≤ 440 V AC)
Control coil voltage
230 V AC 50/60 Hz
Poles
3 NO
Auxiliary contacts
1 NO + 1 NC (mirror contact)
Technical Specifications
I/O & Electrical
Rated operational voltage (power)
≤ 690 V AC (25…400 Hz), ≤ 300 V DC
Rated operational current (AC-3)
65 A (≤ 60 °C, ≤ 440 V AC)
Rated operational current (AC-1)
80 A (≤ 60 °C, ≤ 440 V AC)
Motor power (kW) AC-3
30 kW at 380-400 V; 37 kW at 500 V; 37 kW at 660-690 V; 18.5 kW at 220-230 V AC-3
Motor power (hp)
40 hp at 460/480 V AC; 20 hp at 200-208 V; 50 hp at 575/600 V
Control circuit voltage
230 V AC 50/60 Hz coil
Control circuit type
AC 50/60 Hz
Impulse withstand voltage
According to IEC 60947
Overvoltage category
III
Communication & Power
Power dissipation (AC-3)
9.6 W per pole
Heat dissipation
4…5 W at 50/60 Hz
Maximum operating rate
3600 cycles/hour at 60 °C
Physical & Environmental
Operating temperature
-40 °C to 60 °C (derating to 70 °C)
Mechanical durability
6 million cycles
Electrical durability
1.4 million cycles (80 A AC-1)
Height × Width × Depth
122 mm × 55 mm × 120 mm
Weight
0.86 kg
Certifications
IECULCSACCCEACMarine
