LC1D80004M7 Schneider Electric
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

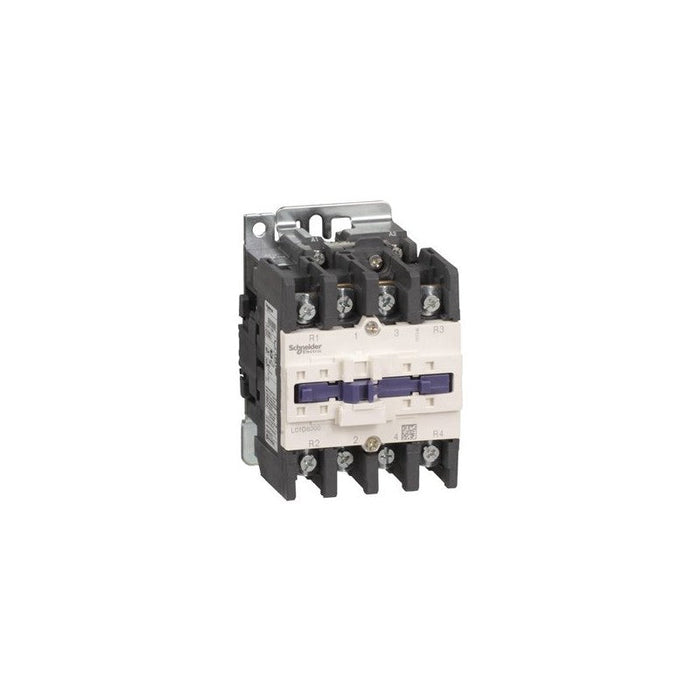

The LC1D80004M7 is a Schneider Electric TeSys Deca series four-pole (4 NO) AC-1 category contactor with a 220 VAC coil at 50/60 Hz. It provides switching capability for resistive and light inductive loads up to 125 A and is engineered for control of motors and power switching in industrial systems. It is suitable for panel mounting or DIN-rail installations and serves in applications like machine control panels, HVAC systems, and general power distribution.
Best Suited For
- Switching resistive or lightly inductive loads up to 125 A AC-1
- Panel or DIN-rail mounted power control assemblies
- Industrial motor control circuits (22 kW at 230 V, 37 kW at 400 V)
- Control systems requiring multi-standard certified contactors (IEC, UL, CSA, CCC, EAC, Marine)
Technical Specifications
I/O & Electrical
Communication & Power
Physical & Environmental
Certifications
Certified per IEC, UL, CSA, CCC, EAC, Marine standards. RoHS-compliant (10 substances), Green Premium designation, complies with REACh no SVHC above thresholds.
