LC1D80F7 Schneider Electric
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

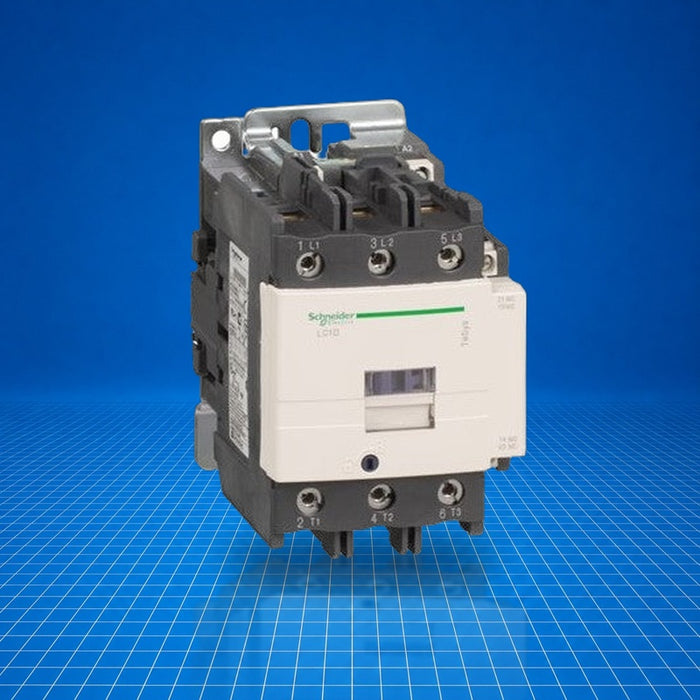

The LC1D80F7 is a Schneider Electric TeSys D three-pole (3 NO) AC-3 contactor with a 110 V AC 50/60 Hz coil, rated for 80 A up to 440 V AC. It serves as a switching device in motor control and power distribution systems, enabling remote switching of motors and resistive loads. Typical use cases include motor starters, pump controls, HVAC applications, and general industrial machinery where reliable switching of three-phase loads is required. LC1D80F7 integrates into control panels and supports flexible mounting.
Best Suited For
- Three-phase motor switching (AC-3 category)
- Pump and fan control circuits
- HVAC system motor starters
- Industrial machinery control panels
Technical Specifications
I/O & Electrical
Physical & Environmental
Certifications
Flame retardance V-1 (UL 94); fire resistance 850 °C (IEC 60695-2-1); pollution degree 3; TH protective treatment; utilisation categories AC-1/AC-3/AC-4; impulse withstand voltage 8 kV per IEC 60947.
