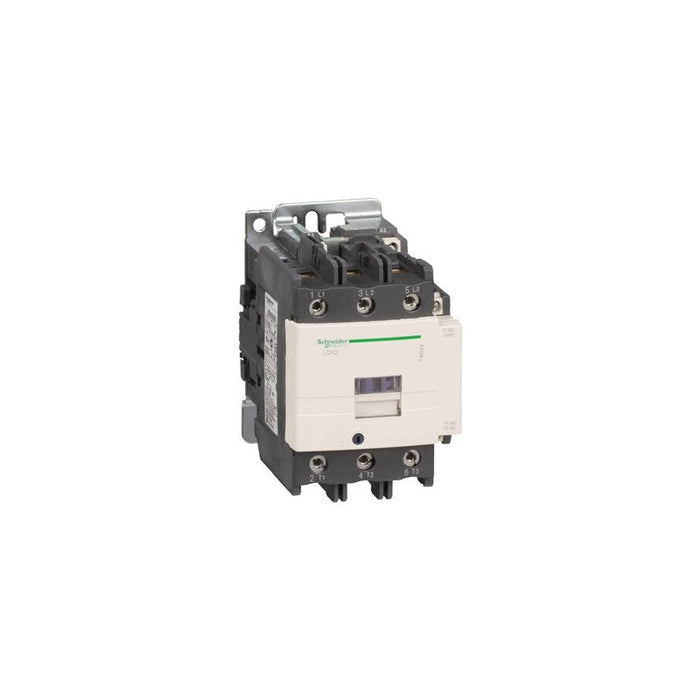

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
LC1D80M7 Schneider Electric
Original price
$0.00
-
Original price
$948.75
Original price
$948.75
$0.00
-
$948.75
Current price
$948.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Schneider Electric LC1D80M7 is a 3-pole (3 NO) TeSys D (Deca) contactor designed for motor control and resistive load applications. It supports AC-3 utilization up to 440 V, handling up to 80 A at ambient temperatures below 60 °C. Equipped with a 220 V AC 50/60 Hz coil, it integrates one NO and one NC auxiliary contact. The device is compact (85 mm width), suitable for DIN-rail or panel mounting, and intended for industrial equipment such as motor starters, control panels, and machinery protection systems in manufacturing or processing environments.
Best Suited For
- Three-phase motor switching up to 80 A
- Control panels requiring compact DIN-rail contactors
- Applications needing AC-3 performance up to 440 V
- Systems using 220 V AC control coils
Rated operational current
80 A (AC-3 ≤ 440 V)
Control circuit voltage
220 V AC 50/60 Hz coil
Auxiliary contacts
1 NO + 1 NC
Width
85 mm
Max operating rate
3600 cycles/h at 60 °C
Technical Specifications
I/O & Electrical
Rated operational voltage (power circuit)
≤ 690 V AC, ≤ 300 V DC
Rated current (AC-1)
125 A (at < 60 °C, ≤ 440 V AC)
Rated current (AC-3)
80 A (at < 60 °C, ≤ 440 V AC)
Motor power (AC-3)
22 kW at 220 V; 37 kW at 380-400 V; 45 kW at 415-440 V; 55 kW at 500 V; 45 kW at 660-690 V
Communication & Power
Control circuit voltage
220 V AC 50/60 Hz
Inrush power
245 VA (50/60 Hz, cos φ 0.75 at 20 °C)
Hold-in power consumption
26 VA (50/60 Hz, cos φ 0.3 at 20 °C)
Heat dissipation
6-10 W (50/60 Hz)
Control voltage limits
Operational: 0.85-1.1 Uc; Drop-out: 0.3-0.6 Uc (at 55 °C)
Auxiliary contact type
Mechanically linked 1 NO + 1 NC; mirror NC contact
Signalling frequency
25-400 Hz
Min switching voltage
17 V
Min switching current
5 mA
Insulation resistance
> 10 MΩ
Non-overlap time
1.5 ms between NC and NO (on energisation/de-energisation)
Physical & Environmental
Mounting
DIN-rail or panel
Dimensions (HxWxD)
127 × 85 × 130 mm
Weight
1.59 kg
Operating rate
3600 cycles/h at 60 °C
Ambient temperature (operation)
-5…60 °C (-40…70 °C at Uc derated)
Storage temperature
-60…80 °C
Operating altitude
≤ 3000 m
IP rating (front face)
IP20
Fire resistance
850 °C (IEC 60695-2-1)
Flame retardance
V-1 (UL 94)
Mechanical robustness
Vibrations: 2 g open, 3 g closed; Shocks: 8 g open, 10 g closed
Certifications
IEC 60947-4-1IEC 60947-5-1UL 60947-4-1CSA C22.2 No 14CCCEACMarineGreen Premium
