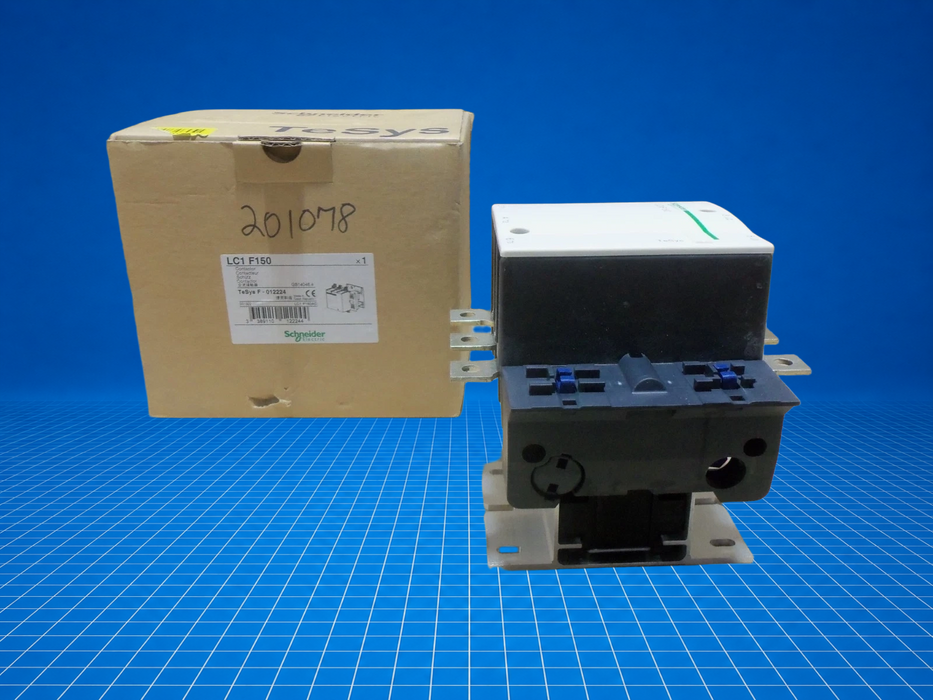

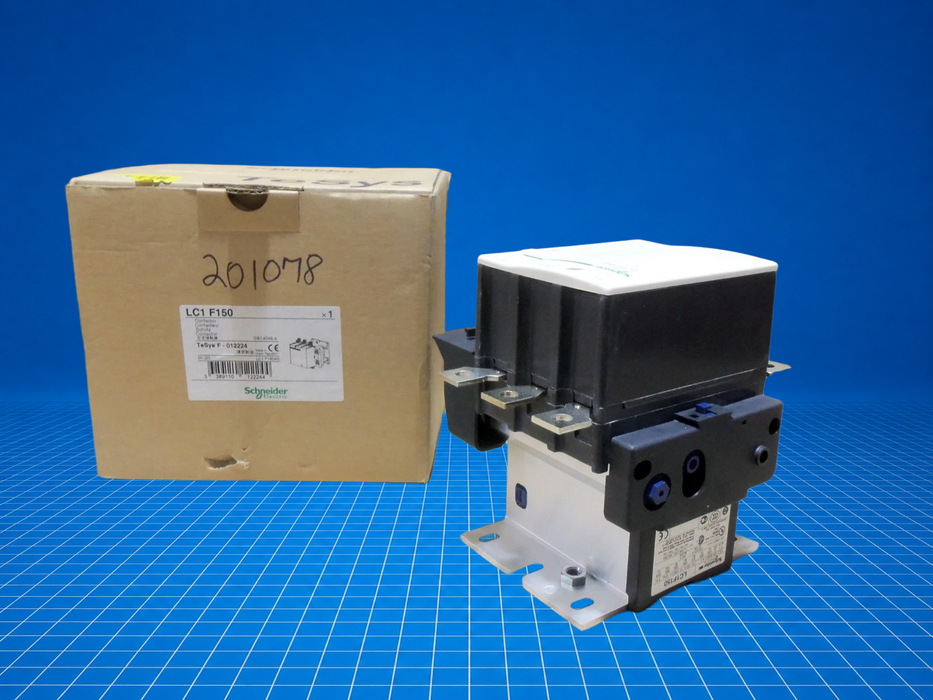

LC1F150 Schneider Electric
Original price
$400.00
-
Original price
$687.47
Original price
$400.00
$400.00
-
$687.47
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Schneider Electric LC1F150 is a TeSys F three-pole (3 NO) power contactor body without coil, designed for AC-3 motor control switching. It is rated for up to 150 A at ≤ 440 V AC and conforms to IEC 60947-4-1 standards. The device is used in industrial motor starters, pump control panels, and machinery switching applications where high current switching capability is required. LC1F150 is commonly specified for rugged environments demanding frequent cycling and precise motor control.
Best Suited For
- Three-phase motor control in AC-3 category
- Panel mount motor starter assemblies
- High-current switching in industrial machinery
- Direct motor breaking at up to 150 A AC-3
- Replacement of legacy LC1F series in maintenance operations
Rated current (AC-3)
150 A (≤ 55 °C, ≤ 440 V AC)
Poles
3 NO
Mounting
Plate mount
Power dissipation per pole
8 W (AC-3), 22 W (AC-1)
Technical Specifications
I/O & Electrical
Rated operational current (AC-3)
150 A (≤ 55 °C, ≤ 440 V AC)
Rated operational current (AC-1)
250 A (≤ 40 °C, ≤ 440 V AC)
Rated operational voltage
≤ 440 V AC / ≤ 460 V DC (
Utilisation categories
AC-1, AC-3
Motor power (AC-3)
40 kW @ 220-230 V, 80 kW @ 415-440 V, 90 kW @ 500 V, 100 kW @ 660-690 V
Conventional free-air thermal current (Ith)
1500 A (IEC 60947-4-1)
Rated making capacity (Irms)
1200 A (IEC 60947-4-1)
Short-time withstand current (Icw)
350 A 10 min, 450 A 3 min, 600 A 1 min, 700 A 30 s, 1200 A 10 s (≤ 40 °C)
Average impedance
0.35 mΩ @ 50 Hz (Ith 250 A)
Rated insulation voltage (Ui)
1000 V (IEC 60947-4-1), 1500 V (VDE 0110 group C)
Impulse withstand voltage (Uimp)
8 kV
Communication & Power
Power dissipation per pole
8 W (AC-3), 22 W (AC-1)
Control circuit voltage limits
Operational 0.85…1.1 Uc; Drop-out 0.35…0.55 Uc (at 55 °C)
Inrush power (VA)
660 VA (cos φ 0.3) @ 60 Hz; 550 VA @ 50 Hz
Hold-in power consumption (VA)
55 VA @ 60 Hz; 45 VA @ 50 Hz
Physical & Environmental
Operating time
23…35 ms closing; 5…15 ms opening
Mechanical durability
10 million cycles
Maximum operating rate
2400 cycles/hour @ ≤ 55 °C
Connections - power circuit
Connector or lugs up to 120 mm²; bar 2×(25×3 mm)
Connections - control circuit
Screw clamp terminals, solid/flexible 1…4 mm² (flexible 1…2.5 mm² with ferrule)
Tightening torque
Power circuit 18 N·m; Control circuit 1.2 N·m
Ambient operating temperature
-5…55 °C
Ambient storage temperature
-60…80 °C
Operating altitude
≤ 3000 m without derating
Shock resistance
15 g closed, 9 g open (11 ms)
Vibration tolerance
6 g closed, 2 g open (5…300 Hz)
Dimensions (H×W×D)
170 × 163.5 × 171 mm
Weight
3.43 kg
Enclosure rating
IP2x front face with shrouds
