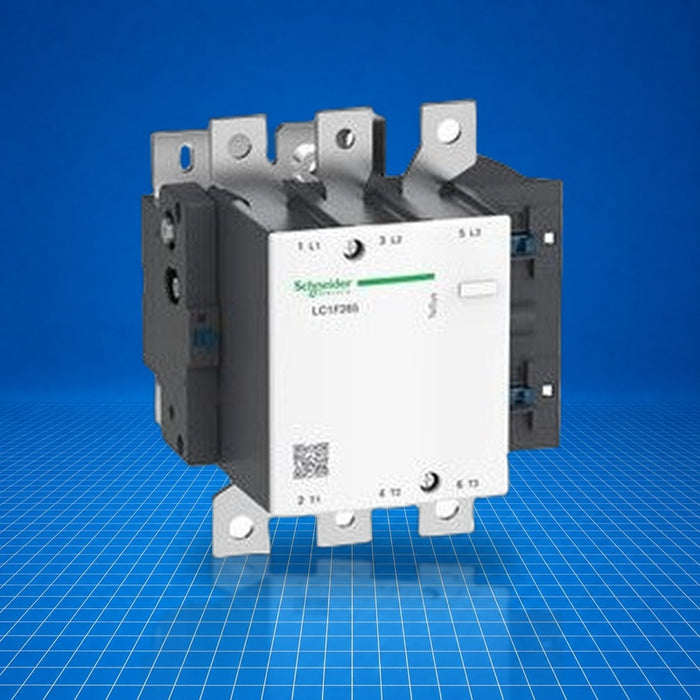

LC1F265F7 Schneider Electric
Original price
$1,363.15
-
Original price
$1,499.48
Original price
$1,363.15
$1,363.15
-
$1,499.48
Current price
$1,363.15
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
Schneider Electric LC1F265F7 is a TeSys F series three-pole (3 NO) contactor designed for AC-3 utilization up to 265 A at ≤ 440 V AC. It serves as a main switching device for motor control and resistive load applications in industrial control systems. The part is discontinued (end of commercialization December 30, 2024), with TeSys Giga replacements suggested. LC1F265F7 provides high rated current switching in demanding environments.
Best Suited For
- Three-phase motor switching (AC-3 category)
- Resistive load switching (AC-1)
- Heavy-duty industrial starter applications
- Panel-mounted control systems
Rated operational current (AC-3)
265 A
Rated operational current (AC-1)
350 A
Rated insulation voltage
1000 V
Power dissipation per pole (AC-3)
21 W
Discontinued on
December 30, 2024
Technical Specifications
I/O & Electrical
Poles
3 NO
Utilisation categories
AC-1, AC-3, AC-4
Rated operational voltage
≤ 1000 V AC, ≤ 460 V DC
Rated operational current (AC-1)
350 A at < 40 °C
Rated operational current (AC-3)
265 A at < 55 °C
Motor power (AC-3)
132 kW @ 380-400 V, 140 kW @ 415 V, 140 kW @ 440 V, 147 kW @ 1000 V, 160 kW @ 500 V, 75 kW @ 220-240 V, 160 kW @ 660-690 V
Communication & Power
Control circuit voltage (LX1/LX9 coil)
24…1000 V AC 40…400 Hz
Control circuit voltage (LX4 coil)
24…460 V DC
Control circuit voltage (LXE coil)
100…250 V AC 50/60 Hz or 100…380 V DC
Power dissipation per pole (AC-1)
37 W
Power dissipation per pole (AC-3)
21 W
Physical & Environmental
Impulse withstand voltage
8 kV
Conventional free-air thermal current (Ith)
350 A
Rated short-time withstand current
2200 A (10 s), 1230 A (30 s), 950 A (1 min), 620 A (3 min), 480 A (10 min)
Rated breaking capacity
2120 A
Average impedance
0.3 mΩ (Ith 350 A 50 Hz)
Mounting
Plate
Mechanical durability
10 million cycles
Closing time
40-65 ms (LX1/LX9), 40-50 ms (LX4), 40-80 ms (LXE)
Opening time
100-170 ms (LX1/LX9), 40-65 ms (LX4), 6-54 ms (LXE)
Terminal types
Bar, ring lug, connector up to 240 mm²; Control circuit screw clamp 0.2-4 mm²
Tightening torque
35 N·m (power), 0.6-1.2 N·m (control)
Certifications
ABSCBDNVRMRSULCSARINALRBV
Product certified to IEC 60947-1, IEC 60947-4-1, JIS C8201-4-1, EN 60947-1, EN 60947-4-1; and certified by ABS, CB, DNV, RMRS, UL, CSA, RINA, LR (Lloyd's), BV.
