LC2D12FD Schneider Electric

Name: LC2D12FD Schneider Electric
Brand: Schneider
SKU: LC2D12FD
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

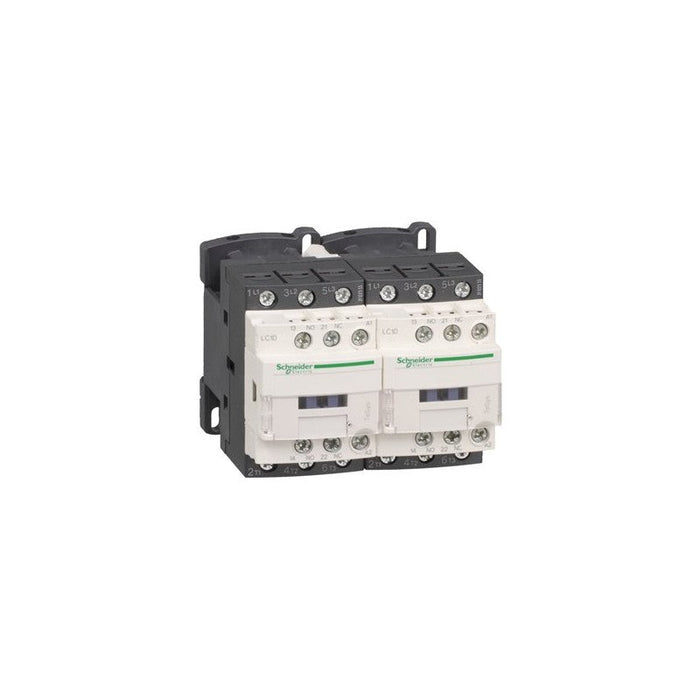

The Schneider Electric LC2D12FD is a TeSys D reversing contactor designed for motor control and resistive load applications. It belongs to the TeSys Deca (formerly TeSys D) family, offering a reversing function with a preassembled power busbar across three poles. The LC2D12FD is typically used in reversing motor starters within control panels, machinery, and automation systems requiring reversal of motor direction. It provides a dependable solution for applications such as conveyor control, motor direction switching, and compact panel installations. Part number LC2D12FD.

Best Suited For

Three-phase motor reversing applications
Compact panel-mount reversing starters
Replacing older LC2D12 contactors
Motor direction control in machinery

Poles

3 NO (power poles)

Rated current (AC-3)

12 A at ≤440 V AC

Motor power (AC-3 380…400 V)

5.5 kW

Control voltage

110 V AC 50/60 Hz

Auxiliary contacts

1 NO + 1 NC

Technical Specifications

I/O & Electrical

Rated operational current (AC-3)

12 A (≤ 60 °C) at ≤ 440 V AC

Rated operational current (AC-1)

25 A (≤ 60 °C) at ≤ 440 V AC

Motor power (220…230 V)

3 kW

Motor power (380…400 V)

5.5 kW

Motor power (500 V)

7.5 kW

Control circuit voltage

110 V AC 50/60 Hz

Communication & Power

Inrush coil power (if confirmed)

Physical & Environmental

Dimensions (H × W × D)

77 mm × 90 mm × 86 mm

Weight

0.697 kg

Ambient temperature (operation)

-20…60 °C

Storage temperature

-60…80 °C

IP rating

IP20 (front face)

Mechanical durability

15 million cycles

Certifications

IEC 60947-4-1IP20Green PremiumRoHS CompliantREACH Compliant

Overvoltage category III; conforms to IEC 60947; Green Premium, RoHS and REACH compliant.
