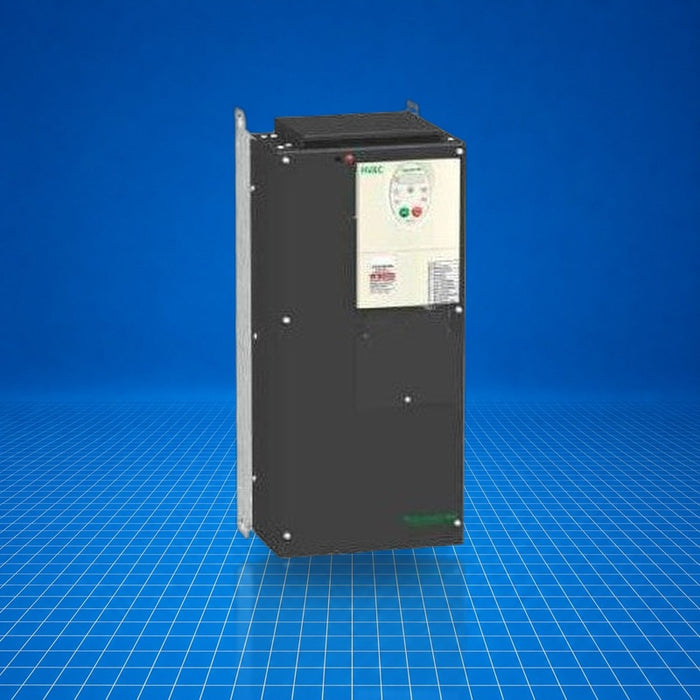

ATV212HD37N4 Schneider

Name: ATV212HD37N4 Schneider
Brand: Schneider
SKU: ATV212HD37N4
Price: 1424.98 USD
Availability: InStock

$1,424.98 - $3,987.90

$1,424.98

$1,424.98 - $3,987.90

$1,424.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The ATV212HD37N4 is a member of Schneider Electric's Altivar 212 variable-speed drive series, designed for controlling three-phase asynchronous motors. With a rated motor power of 37 kW (50 hp) and three-phase input at 380-480 V, it provides adjustable-speed control for variable torque applications such as fans, pumps, and compressors. The drive features integrated I/O including logic and analog inputs, analog and relay outputs, an LED display with keypad, and multi-protocol communication support including Modbus, BACnet, Metasys N2, and Apogee P1 via the included RJ45 and terminal block interfaces. ATV212HD37N4 supports option cards for additional connectivity such as LonWorks.

Best Suited For

Variable-torque pump or fan applications
Three-phase motor speed control at 380-480 VAC
Building automation via BACnet or Modbus integration
System upgrades where central LED/keypad interface is required

Motor power (kW)

37 kW

Input voltage

380 - 480 V AC, 3-phase

Continuous output current

94 A

Dissipated power at full load

1 253 W

Enclosure rating

IP20 (open-style), optional Type 1 with conduit kit

Technical Specifications

I/O & Electrical

Logic inputs

3

Analog inputs

2

Analog outputs

1

Relay outputs

2 (1 NO + 1 NO/NC)

Communication & Power

Communication ports

RJ45 Modbus plus 4-screw terminal block for BACnet, Modbus, Metasys N2, Apogee P1; optional LonWorks card

Input voltage

380 - 480 V AC, three-phase

Continuous output current

94 A

Maximum transient current (60 s)

103.4 A

Physical & Environmental

Dissipated power (full load)

1 253 W

Operating switching frequency

6-16 kHz (with derating above thresholds)

Ambient temperature

Continuous operation at 40 °C; higher frequencies require derating

Enclosure rating

IP20 open-style; UL Type 1 option with conduit kit

Certifications

AHRI certified
