ATV630D18N4 Schneider Electric
Product image is representative; revision or series may vary.
Contact us to request a specific version.

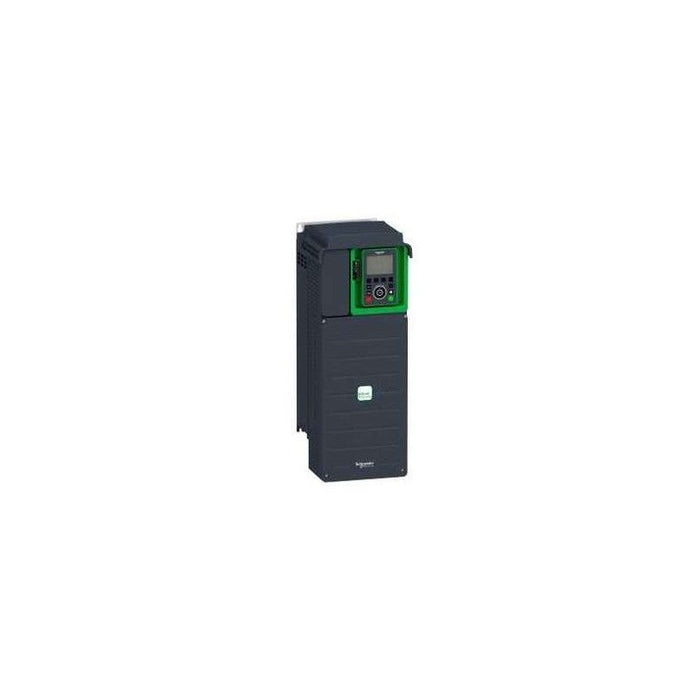

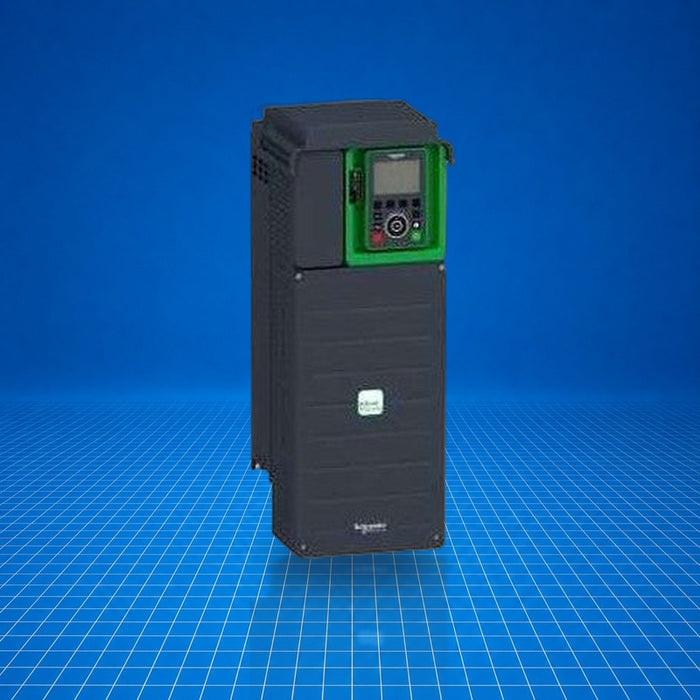

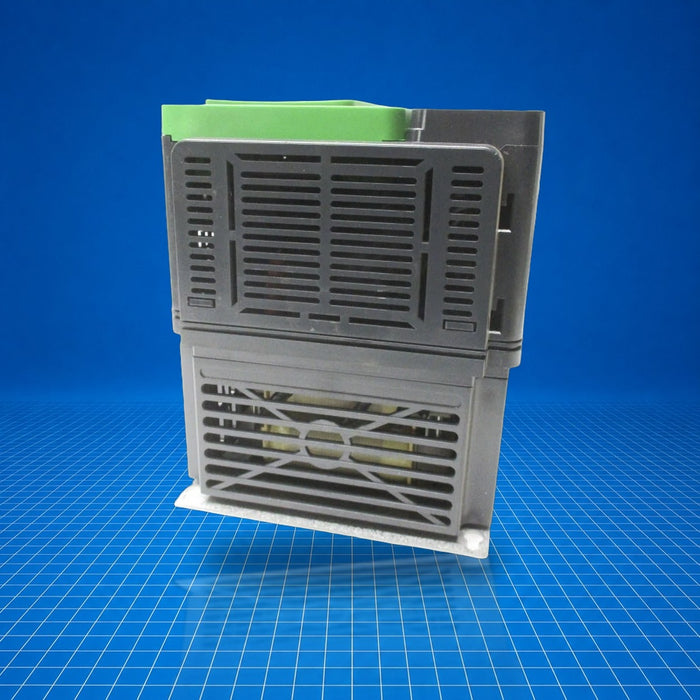

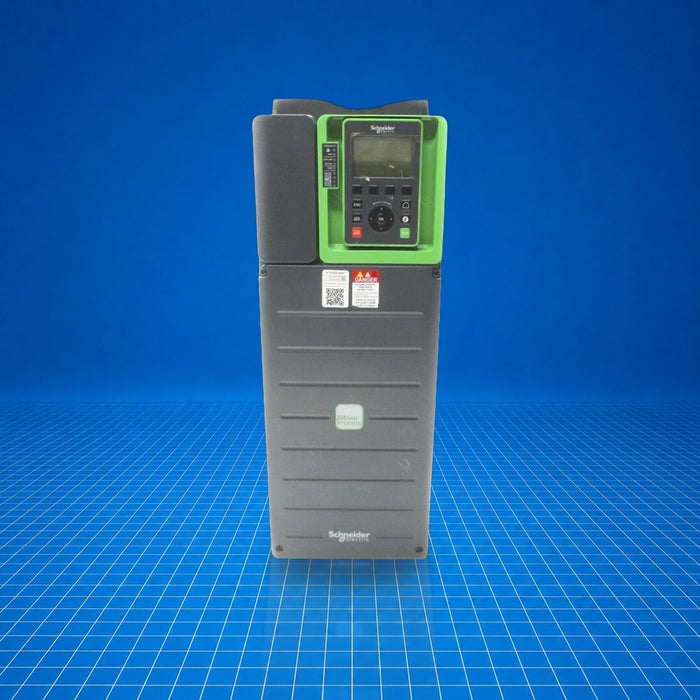

ATV630D18N4 Schneider Electric

$1,875.00 - $4,767.00
$1,875.00
$1,875.00 - $4,767.00
$1,875.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,875.00
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$4,767.00
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Schneider distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The ATV630D18N4 is a variable frequency drive (Altivar Process ATV600 series) intended for industrial motor control in process and utilities applications. The unit provides speed regulation of three-phase synchronous and asynchronous motors, supporting up to 18.5 kW (25 hp) under normal-duty and 15 kW (20 hp) under heavy-duty conditions. It accepts a 380…480 V three-phase supply, offers embedded power measurement, process monitoring, 'Stop and Go' standby function, and Safe Torque Off (STO) at SIL 3 for functional safety applications. ATV630D18N4 integrates into control systems for fluid management, mining, water/wastewater, and similar industrial sectors. Part number ATV630D18N4.

Best Suited For

  • Process and utilities motor control
  • Fluid management systems
  • Water and wastewater applications
  • Mining and minerals process drives
Power rating (normal duty)
18.5 kW (25 hp)
Input voltage
380…480 V AC (3-phase)
Continuous output current
39.2 A (4 kHz, normal duty)
Protection rating
IP21 / UL Type 1
Functional safety
STO (Safe Torque Off) SIL 3

Technical Specifications

I/O & Electrical

Rated supply voltage
380…480 V AC, ±10 %
Frequency range
50…60 Hz, ±5 %
Motor power (heavy duty)
15 kW (20 hp)
Line current (normal duty)
33.4 A at 380 V; 28.9 A at 480 V
Line current (heavy duty)
27.7 A at 380 V; 24.4 A at 480 V
Continuous output current
39.2 A (4 kHz, normal duty); 31.7 A (heavy duty)
Switching frequency
2…12 kHz adjustable (derating above 4 kHz)
Maximum transient current
43.1 A (60 s normal); 47.6 A (60 s heavy)
Apparent power
24 kVA (480 V normal); 20.3 kVA (480 V heavy)

Communication & Power

Communication ports
3× RJ45 (Ethernet); Modbus TCP slave
Safety function
STO SIL 3

Physical & Environmental

Mounting
Wall-mount vertical ±10 °
Cooling
Forced convection
Protection
IP21 (IEC); UL Type 1
Dimensions (W×H×D)
211 mm × 546 mm × 232 mm (8.3 in × 21.5 in × 9.1 in)
Weight
14.2 kg (31.3 lb)
Operating frequency
50…60 Hz

Certifications

UL 508CIEC 61800-5-1SIL 3
