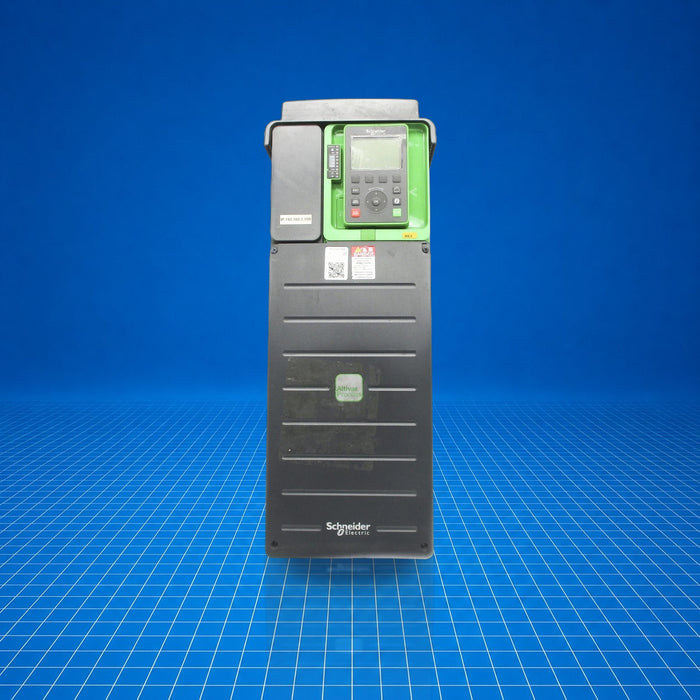

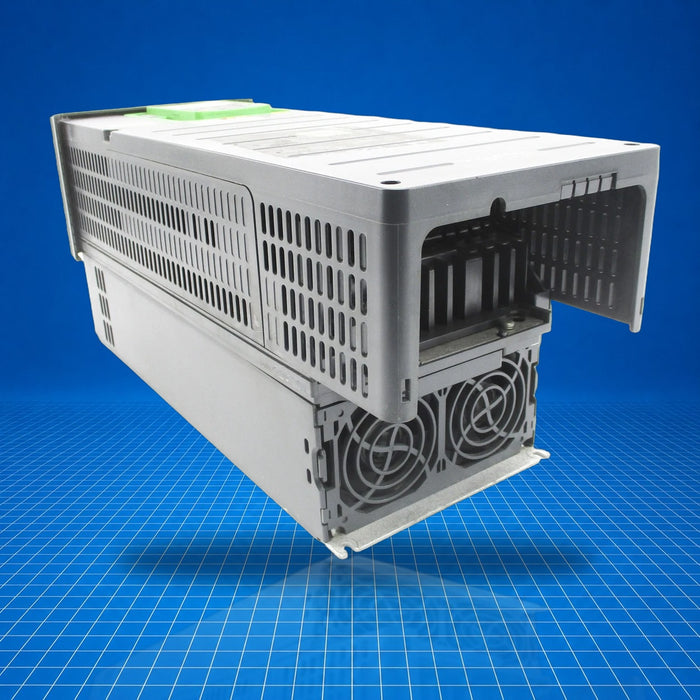

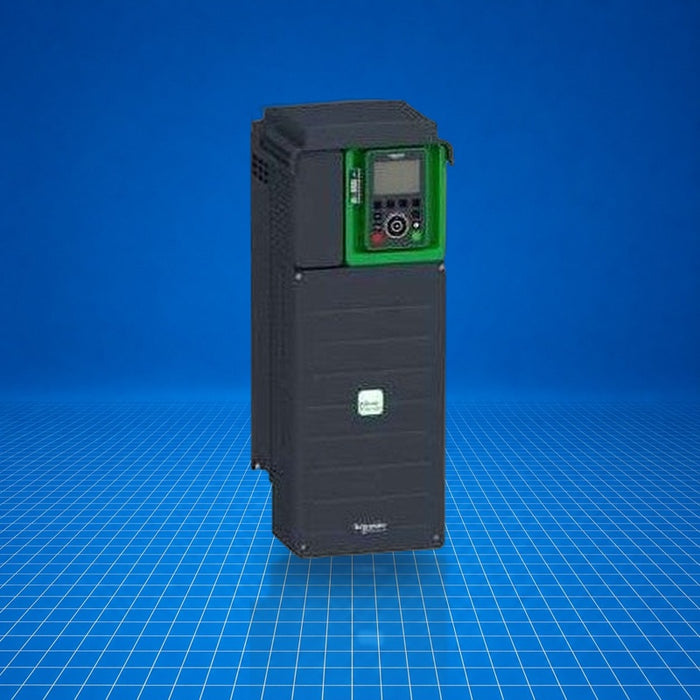

ATV930D15N4 Schneider Electric
Original price
$5,049.00
-
Original price
$5,475.00
Original price
$5,049.00
$5,049.00
-
$5,475.00
Current price
$5,049.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The ATV930D15N4 is a Schneider Electric Altivar Process ATV930 variable speed drive, offering 15 kW (20 hp) output at 400-480 V three-phase, equipped with an integrated braking unit and forced-convection cooling. It supports both asynchronous and synchronous motors and is typically used in industrial process control systems. Suited for use in hoisting, conveyors, pumps, mixers and other constant-torque equipment, the ATV930D15N4 provides controlled motor acceleration, deceleration, and braking within medium-voltage process environments.
Best Suited For
- Constant-torque industrial applications (mixers, hoists)
- Applications requiring integrated braking via chopper
- Synchronous and asynchronous motor control
- Medium-voltage process system integration
Power (normal/heavy duty)
15 kW / 11 kW
Supply voltage
380…480 V AC
Continuous output current (4 kHz)
31.7 A / 23.5 A
Integrated braking unit
Yes
IP rating
IP21
Technical Specifications
I/O & Electrical
Supply voltage
380…480 V AC -15…+10 %
Motor power
15 kW (normal), 11 kW (heavy duty)
Motor power (hp)
20 hp normal, 15 hp heavy
Line current
27 A @380 V (normal), 23.3 A @480 V (normal), 20.6 A @380 V (heavy), 18.1 A @480 V (heavy)
Continuous output current
31.7 A (normal duty) / 23.5 A (heavy duty) @4 kHz
Maximum transient current
16.4 A (60 s, normal duty)
Communication & Power
EMC filter
Integrated 50 m (C2) and 150 m (C3)
Cooling
Forced convection
Supply frequency
50…60 Hz ±5 %
Network phases
3-phase
Prospective short-circuit current (Isc)
50 kA
Apparent power
19.4 kVA (normal), 15 kVA (heavy) @480 V
Physical & Environmental
IP degree of protection
IP21 (IEC 61800-5-1, IEC 60529)
UL degree of protection
UL Type 1 (UL 508C)
Certifications
UL Type 1IEC 61800-5-1IEC 60529
