Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

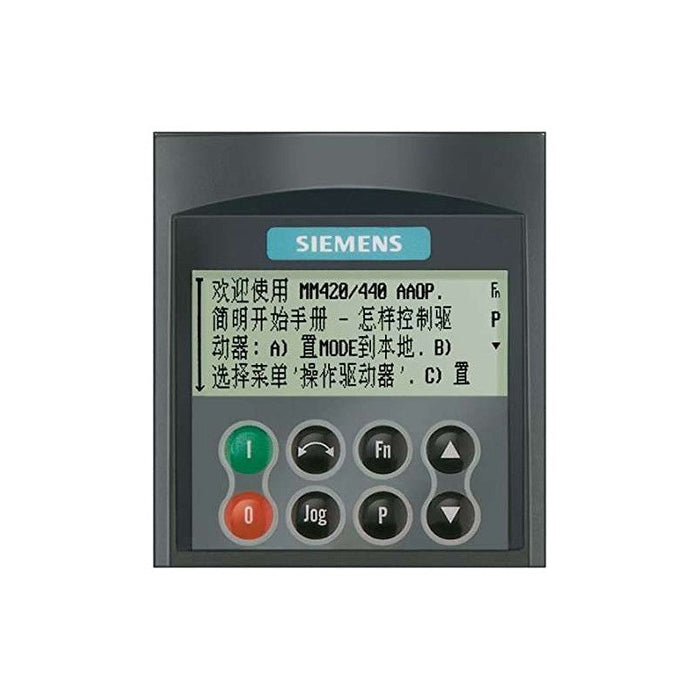

The Siemens 6SE6400-0AP00-0AB0 is the Asian language variant of the Advanced Operator Panel (AOP) for the MICROMASTER 420/440 series drives. It serves as a user interface mounted on the drive or cabinet door, enabling parameter programming, control (e.g., start, stop, direction), and diagnostics in the control system. Typically used on AC motor drives in industrial machinery such as conveyors, pumps, fans, and general-purpose motor control panels. Using one operator panel across MICROMASTER series simplifies setup and maintenance.
Best Suited For
- MICROMASTER 420/440 drive parameterization
- Cabinet-door mounted human-machine interface
- Diagnostics and fault code display with local control
- Applications requiring Asian language support
Display type
LCD, monochrome
Mounting type
Cabinet-door or drive-front mounting
Power supply
Internal from inverter or 24 V ±10 %
Communication
RS-485 (USS); option for RS-232 for AOP-AAOP
Technical Specifications
I/O & Electrical
Power supply (internal)
6.5 V ±5 %, max. 300 mA
Power supply (external)
24 V ±10 %, max. 350 mA
Termination supply
5 V ±10 %, max. 100 mA galvanically isolated
Communication & Power
Data transmission rate
max. 12 Mbaud (USS)
Interfaces
RS-485 (USS); RS-232 (via adapter cable)
Physical & Environmental
Degree of protection
IP20
Operating temperature
-10 °C to +50 °C
Storage/transport temperature
-25 °C to +70 °C
Relative humidity
≤ 85 % non-condensing (operation); ≤ 95 % (storage)
Certifications
ULCEC-Tick
