Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

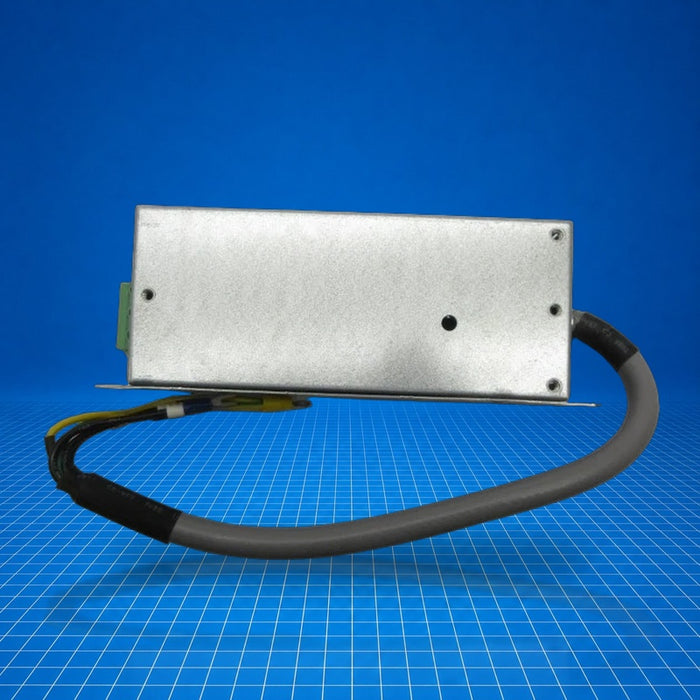

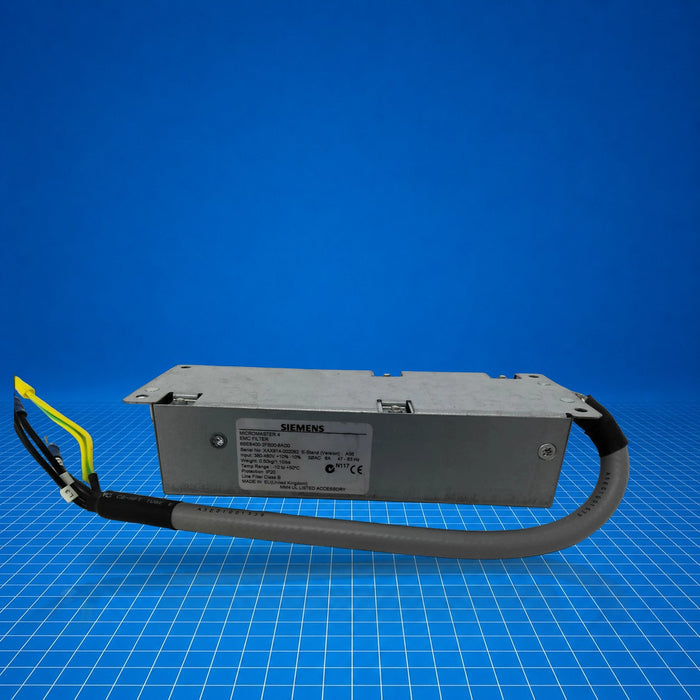

The Siemens 6SE6400-2FB00-6AD0 is an EMC (electromagnetic compatibility) filter, Class B, from the MICROMASTER 4 accessory range. It is intended for line-side installation in three-phase drives (200-480 V AC) to suppress common-mode and differential-mode interference. It is used with SINAMICS G120C and MICROMASTER inverters where EMC compliance is required. This filter supports up to 6 A and aids in meeting electromagnetic disturbance limits when integrated with compatible drive systems.
Best Suited For
- Line-side EMC suppression for MICROMASTER 4 variable-frequency drives
- Installation on SINAMICS G120C FSAA frame in Class B EMC configurations
- Industrial environments requiring compliance with EMC emissions
- Integration in three-phase 200-480 V drive systems
EMC Filter Class
B
Voltage range
200-480 V AC 3-phase
Rated current
6 A
Power loss (at 50 Hz)
0.5 … 1.5 W
Degree of protection
IP20
Technical Specifications
I/O & Electrical
Voltage range
200-480 V AC 3-phase
Rated current
6 A
Power loss (at 50 Hz)
0.5 … 1.5 W
Communication & Power
EMC filter class
B
Physical & Environmental
Protection rating
IP20
Mounting/thread size
4 × M4 bolts, torque 2.5 Nm
Dimensions (W × H × D)
73 × 200 × 43.5 mm
Weight
0.6 kg
Certifications
CE
