Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

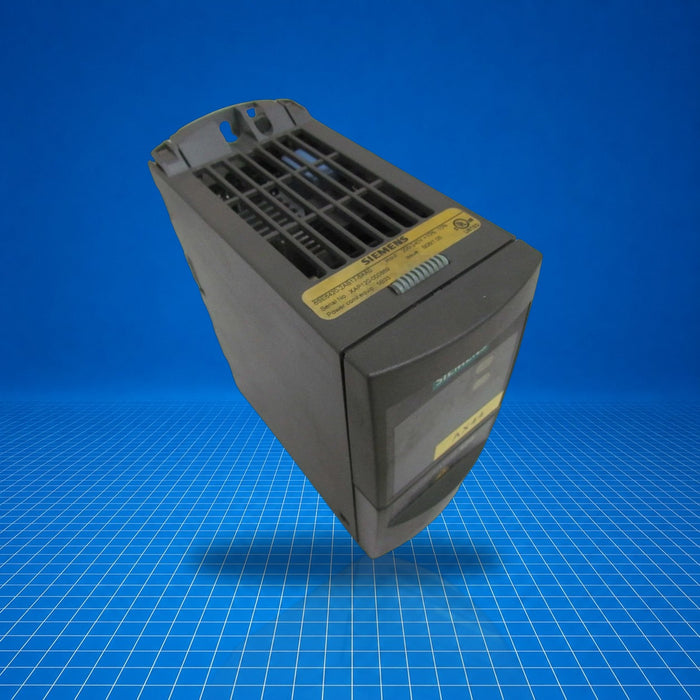

The Siemens 6SE6420-2AB17-5AA0 is a MICROMASTER 420 series AC drive designed to regulate three-phase motor speed and torque. Part of the established Micromaster family, it accepts single-phase 200-240 V AC input and provides variable-frequency output for motors up to approximately 0.75 kW (1.0 hp). The drive is typically used in machinery requiring controlled speed such as conveyors, pumps, fans, and packaging systems, facilitating energy-efficient motor control and process tuning. 6SE6420-2AB17-5AA0 integrates into medium-duty industrial installations where precise motor management is required.
Best Suited For
- Single-phase 200-240 V motor speed control
- Machinery like conveyors, pumps, fans
- Applications up to ~0.75 kW motor output
- Retrofitting equipment using Micromaster 420 drives
Input voltage range
1 AC 200 - 240 V ±10 %
Motor output power
0.75 kW (1.0 hp)
Overload capability
150 % for 60 s in 300 s cycle
Protection rating
IP20
Dimensions (H×W×D)
173 × 73 × 149 mm
Technical Specifications
I/O & Electrical
Input voltage
1 AC 200 - 240 V ±10 %
Input current
6.6 A (for 0.75 kW)
Max output current
5.5 A (for 0.75 kW)
Communication & Power
Motor output power
0.75 kW / 1.0 hp
Overload capability
150 % output current for 60 s in 300 s cycle
Physical & Environmental
Protection rating
IP20
Ambient temperature, operation
-10 … 50 °C
Transport/storage temperature
-40 … 70 °C
Dimensions (H×W×D)
173 × 73 × 149 mm
Weight
1.00 kg
Certifications
ULCE
