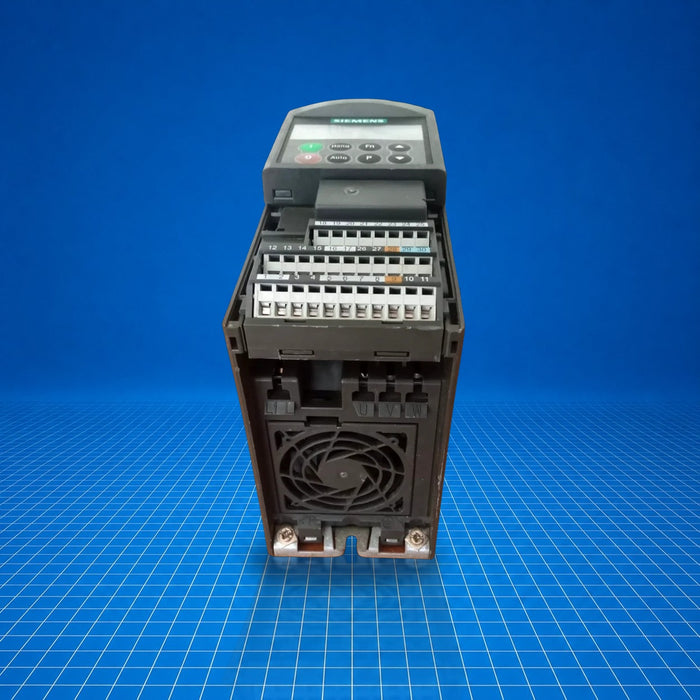

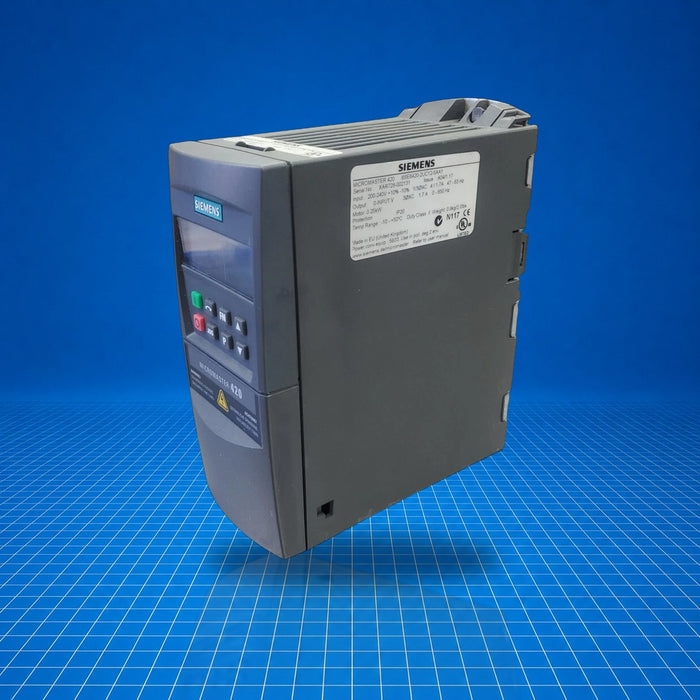

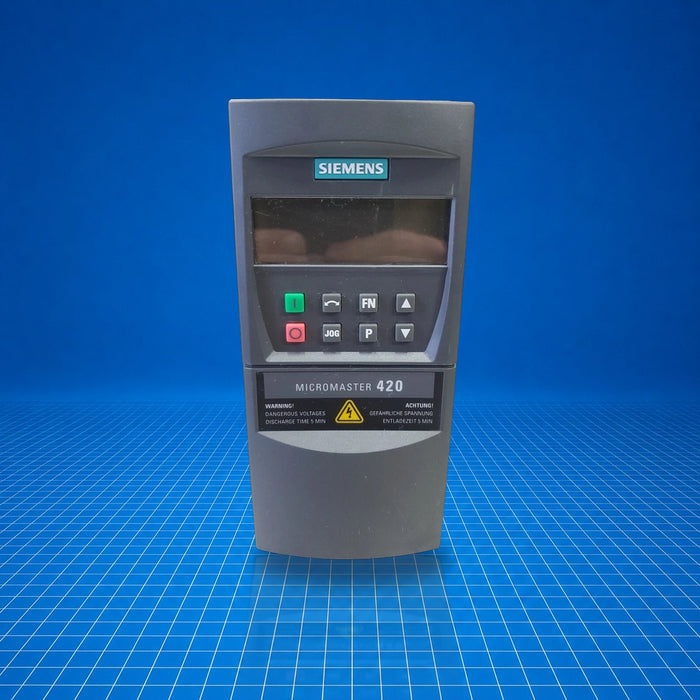

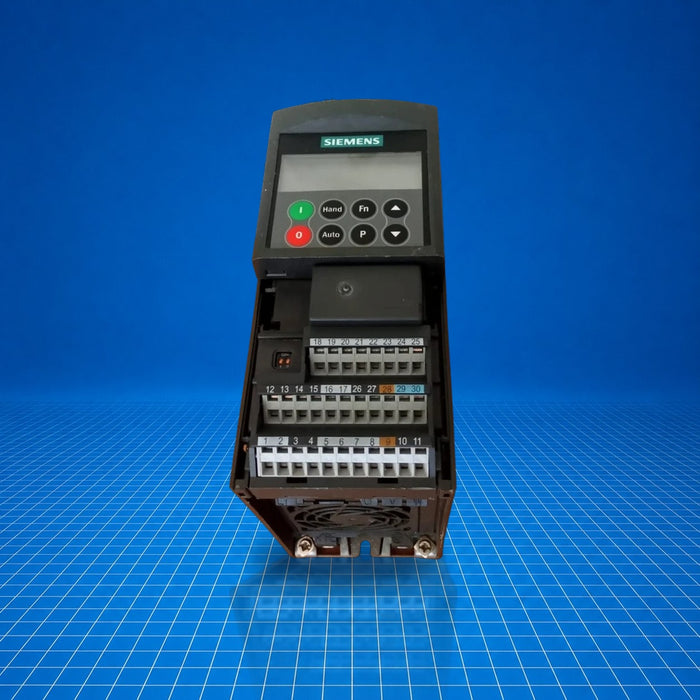

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SE6420-2UC12-5AA1 Siemens
Original price
$434.97
-
Original price
$822.25
Original price
$434.97
$434.97
-
$822.25
Current price
$434.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SE6420-2UC12-5AA1 is a Siemens MICROMASTER 420 unfiltered 1-/3-phase AC inverter drive. It belongs to the MICROMASTER 420 family and operates on a 200-240 V AC ±10 % supply at 47-63 Hz. Designed to convert fixed-voltage mains AC into variable-frequency motor output, it delivers up to 0.25 kW (0.33 hp) output power. In control systems, it modulates motor speed for conveyor belts, small pumps or fans, and machine tools. The drive supports constant-torque operation and offers digital and analog interface options. (6SE6420-2UC12-5AA1 mentioned twice)
Best Suited For
- Small machinery requiring variable speed control
- Conveyors, fans, or pumps under 0.25 kW
- Retrofit in existing MICROMASTER 420 installations
- Spare-part replacement for legacy unfiltered drives
Output power
0.25 kW / 0.33 hp
Input voltage
3 AC 200-240 V ±10 %
Degree of protection
IP20 / UL open type
Frame size
FSA
Technical Specifications
I/O & Electrical
Input voltage range
3 AC 200-240 V ±10 %
Rated input current
3.20 A / 1.90 A (HO)
Rated output current
1.70 A (HO)
Output power
0.25 kW / 0.33 hp
Overload capability
150 % for 60 s, then 100 % for 240 s in 300 s cycle
Communication & Power
Line frequency
47-63 Hz
Power factor
λ = 0.95
Efficiency
η = 0.96
Physical & Environmental
Degree of protection
IP20 / UL open type
Frame size
FSA
Dimensions (W×H×D)
73.0 mm × 173.0 mm × 149.0 mm
Net weight
1.00 kg
Ambient temperature (operation)
-10…50 °C
Ambient temperature (transport/storage)
-40…70 °C
Cooling method
Fan
Pulse frequency
16 000 Hz
Max output frequency (V/f control)
550…650 Hz limit
