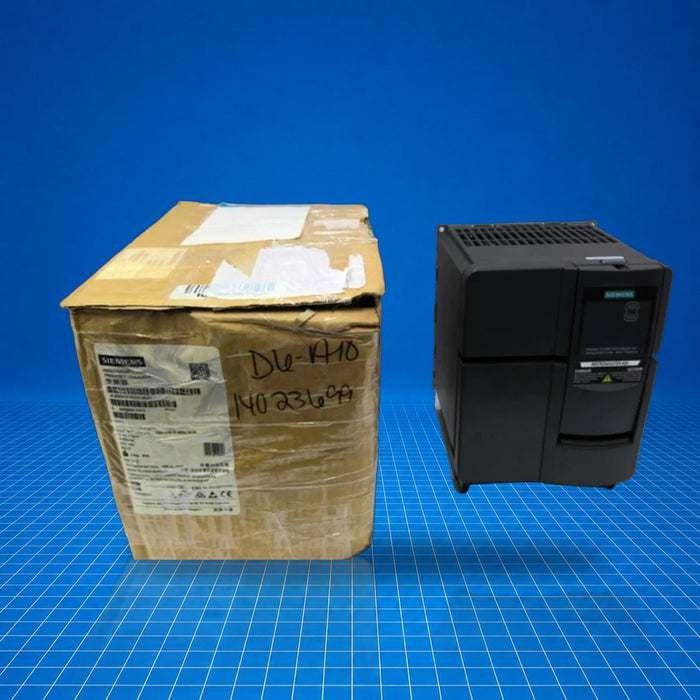

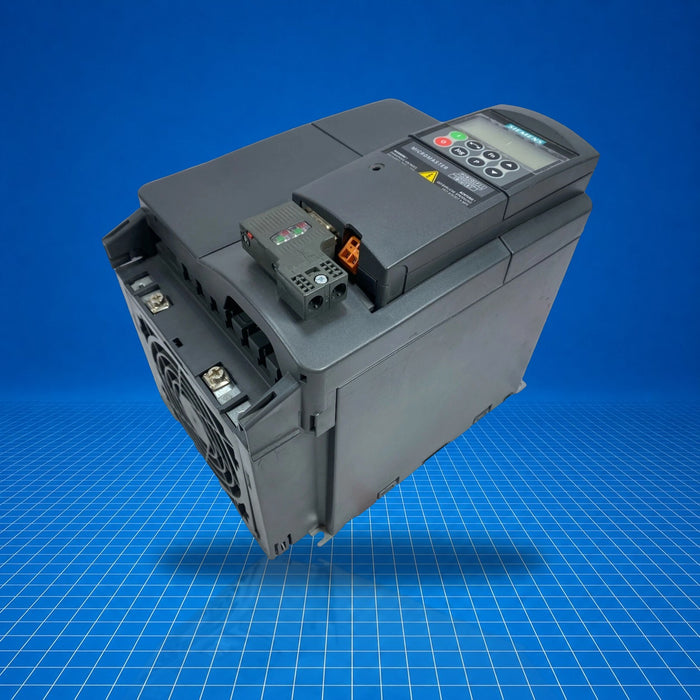

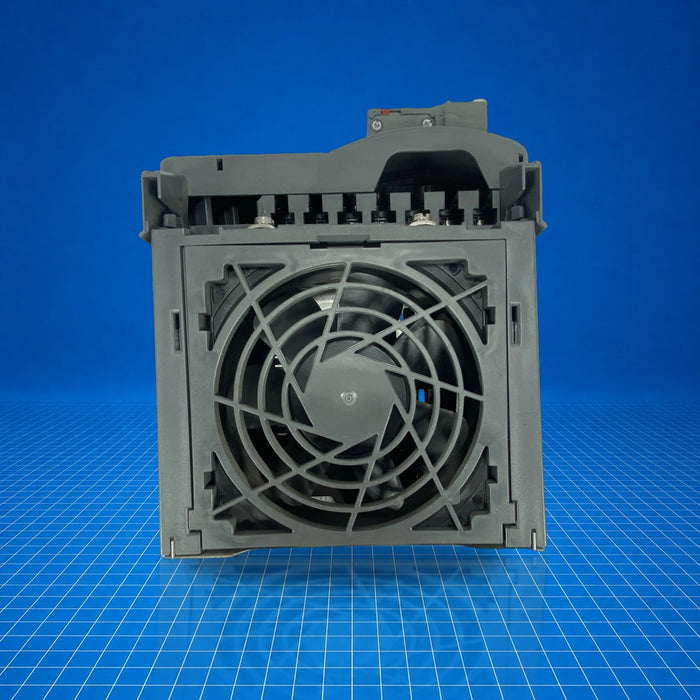

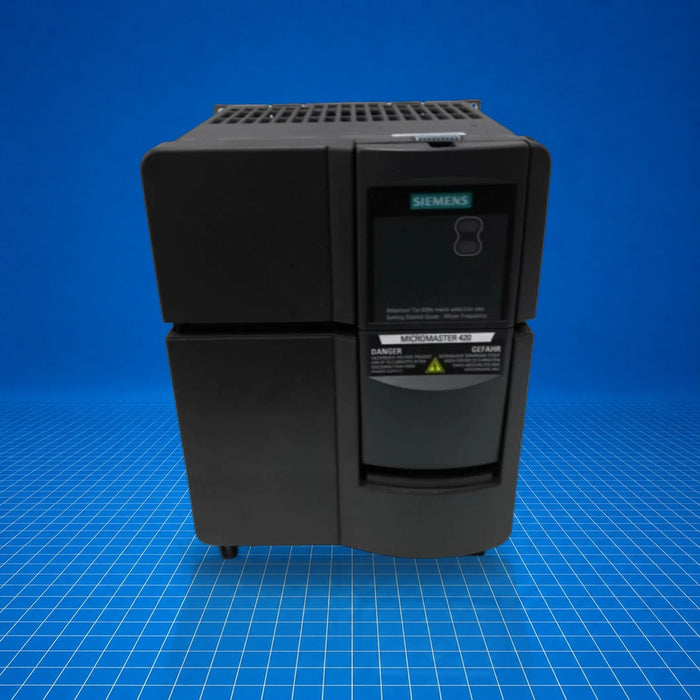

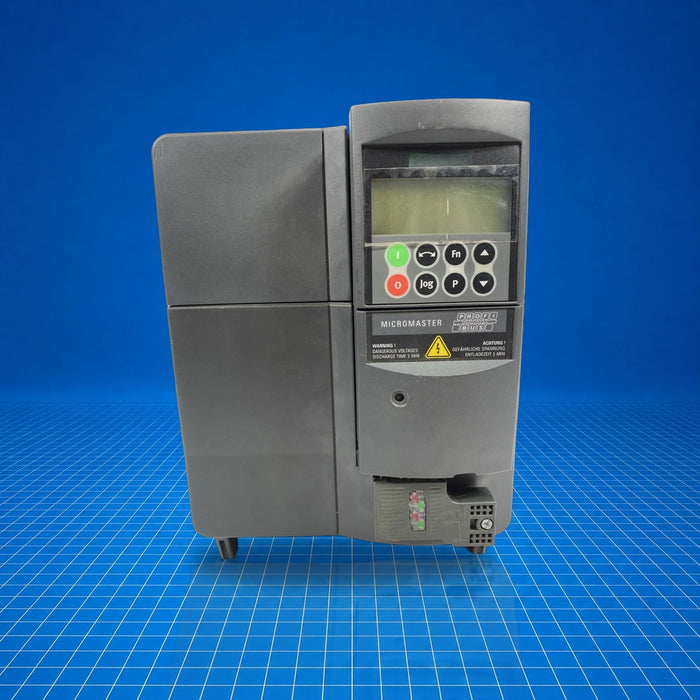

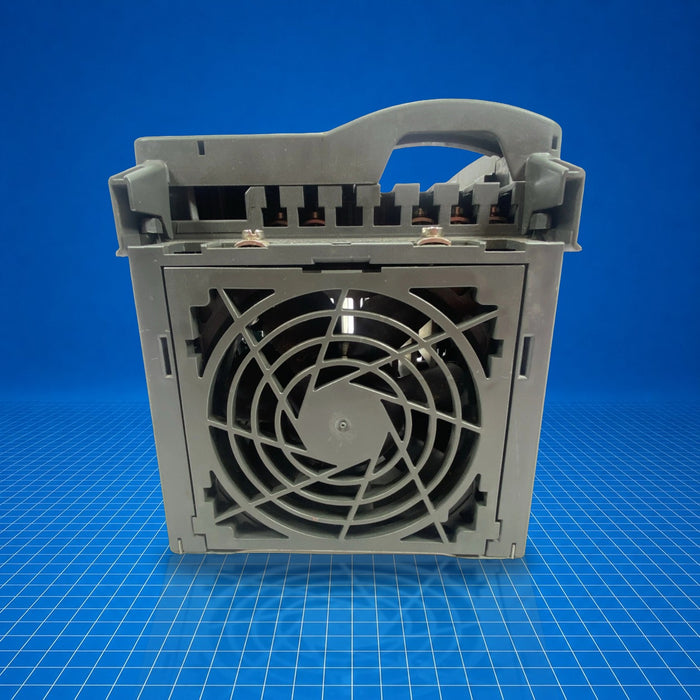

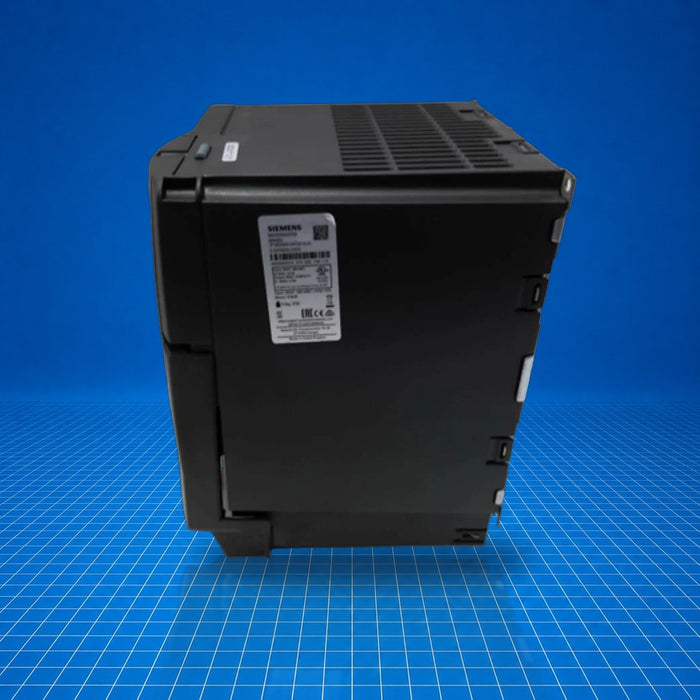

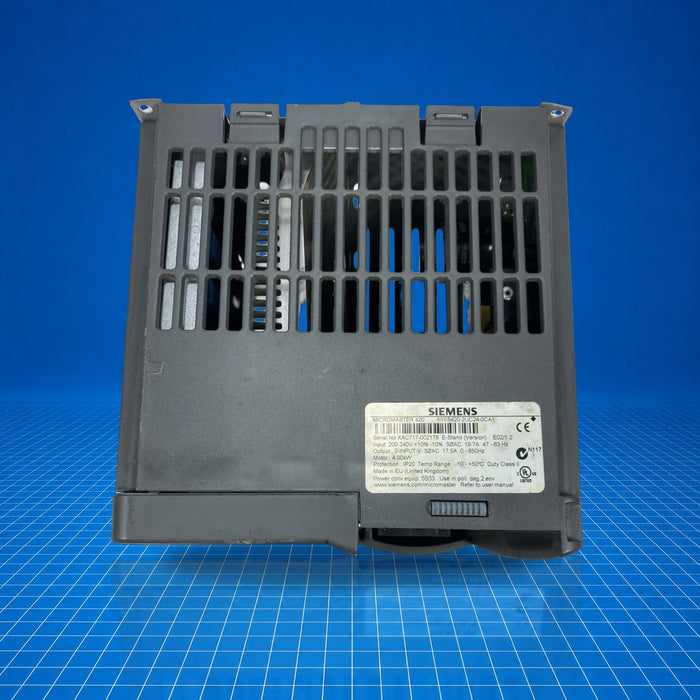

6SE6420-2UC24-0CA1 Siemens
Original price
$1,750.00
-
Original price
$2,849.00
Original price
$1,750.00
$1,750.00
-
$2,849.00
Current price
$1,750.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SE6420-2UC24-0CA1 is a MICROMASTER 420 series variable frequency drive designed for AC motor speed control. Belonging to the 6SE6420 platform, this drive accepts 200 V-240 V AC supply and provides an output rating of 4.0 kW (5.0 hp). In an industrial automation control environment it regulates motor speed and torque via control interface connections and protects motor systems. It is commonly applied in conveyor systems, pump control, fan drives, and machine tool feed drives. 6SE6420-2UC24-0CA1 delivers compact motor control suitable for panel mounting and on-machine installations.
Best Suited For
- Panel-mounted motor speed control
- Conveyor and pump drive applications
- Retrofit of 3.0-5.0 kW motors
- General industrial motor speed regulation
Output power
4.0 kW (5.0 hp)
Input voltage
200 V - 240 V AC
Input current
19.7 A
Enclosure protection
IP20 / UL open type
Technical Specifications
I/O & Electrical
Standard digital inputs
3
Relay output
1
Analog input
1
Analog output
1
Communication & Power
Input voltage
200 V - 240 V AC
Input current
19.7 A
Output current
17.5 A
Output power
4.0 kW (5.0 hp)
Fuse (recommended)
32 A (3NA 3812)
Physical & Environmental
Degree of protection
IP20 / UL open type
Weight
5.5 kg (12.1 lbs)
Input cable, min/max
2.5 mm² / 10.0 mm² (14 AWG / 8 AWG)
Output cable, min/max
2.5 mm² / 10.0 mm² (14 AWG / 8 AWG)
