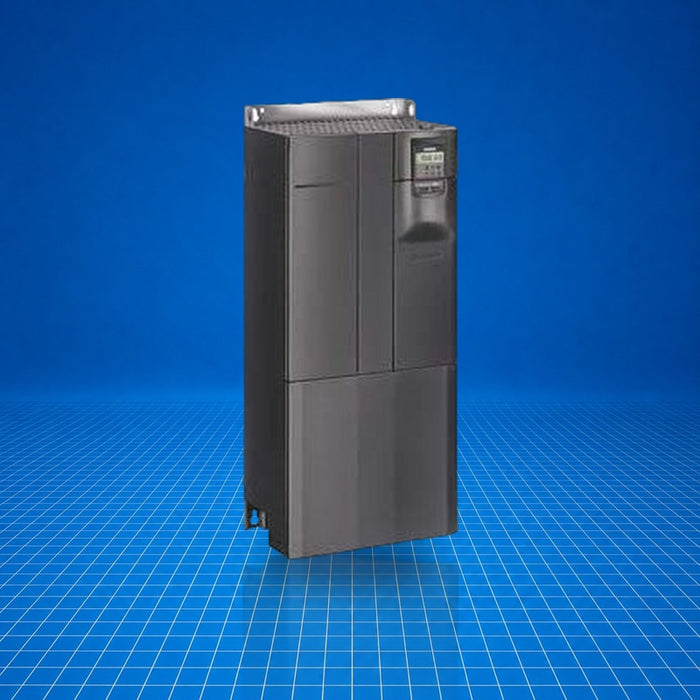

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SE6430-2UD33-7EA0 Siemens
Original price
$0.00
-
Original price
$2,401.00
Original price
$2,401.00
$0.00
-
$2,401.00
Current price
$2,401.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens MICROMASTER 430 series variable frequency drive, model 6SE6430-2UD33-7EA0, is a three-phase AC motor drive designed to control motor speed via V/f control. It is part of Siemens's MICROMASTER platform and delivers up to 37 kW (50 hp) motor output at 480 V while supporting up to 650 Hz. In industrial systems, this drive regulates motor acceleration, torque, and speed for pumps, conveyors, fans, and machine tools. The 6SE6430-2UD33-7EA0 integrates into control panels where compact footprint and flexible ambient operation are required.
Best Suited For
- Variable-speed control of 3-phase motors up to 37 kW
- Pumps, fans, conveyors in industrial environments
- Applications requiring extended frequency up to 650 Hz
- Panel-mounted installations in control cabinets
Motor output rating
37 kW / 50 hp
Input voltage range
3-phase AC 380 - 480 V ±10 %
Max output frequency
650 Hz
VT input current
71.7 A
IP rating
IP20
Technical Specifications
I/O & Electrical
Motor output rating
37 kW / 50 hp
VT input current
71.7 A
VT output current (max)
75 A
Input voltage range
3-phase AC 380 - 480 V ±10 % (Unfiltered)
Communication & Power
Control method
V/f control
Output power
47.3 kVA
Physical & Environmental
Operating temperature
-10 °C to +40 °C
Storage/Transport temperature
-40 °C to +70 °C
Enclosure rating
IP20
Dimensions (W×H×D)
275 × 650 × 245 mm
Weight
20 kg (44 lbs)
