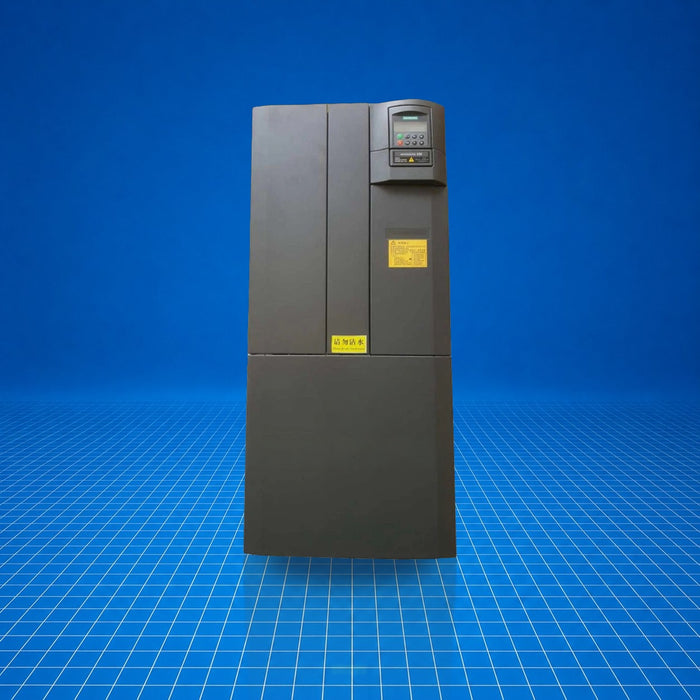

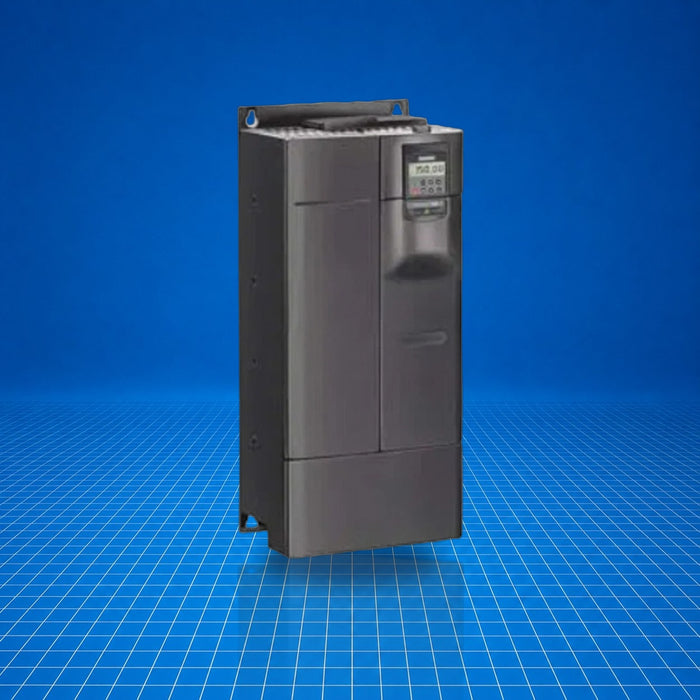

6SE6430-2UD37-5FB0 Siemens
Original price
$0.00
-
Original price
$3,705.43
Original price
$3,705.43
$0.00
-
$3,705.43
Current price
$3,705.43
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SE6430-2UD37-5FB0 is a MICROMASTER 430 variable frequency drive, part of the MM430 platform. It provides adjustable-speed control for three-phase AC motors in industrial environments. Installed without line filter, it handles 380-480 V AC ±10%, delivering up to 75 kW (100 hp) output. It supports torque control in square-law mode and enables extended overload capacity with defined current windows. Typical applications include conveyor drives, pump systems, fans, and general machine drive control.
Best Suited For
- AC motor speed control up to 75 kW
- Industrial conveyor and pump drives
- Torque-regulated applications in square-law region
- Replacement drive in existing MICROMASTER 430 installations
- Mounting in IP20 open-type control cabinets
Rated motor output
75 kW / 100 hp
Input voltage range
3 AC 380-480 V ±10 %
Overload capability
140 % for 3 s, then 110 % for 57 s
Enclosure protection
IP20 (UL open type)
Dimensions (W×H×D)
350 × 850 × 320 mm
Technical Specifications
I/O & Electrical
Input voltage range
3 AC 380 V - 480 V, ± 10 %
Rated motor output
75 kW / 100 hp
Input current
138.5 A (approx)
Overload capability
140 % 3 s, then 110 % 57 s
Physical & Environmental
Degree of protection
IP20 / UL open type
Dimensions (W×H×D)
350 × 850 × 320 mm
Net weight
56 kg
Ambient temperature (operation)
-10 … 40 °C
Ambient temperature (storage)
-40 … 70 °C
