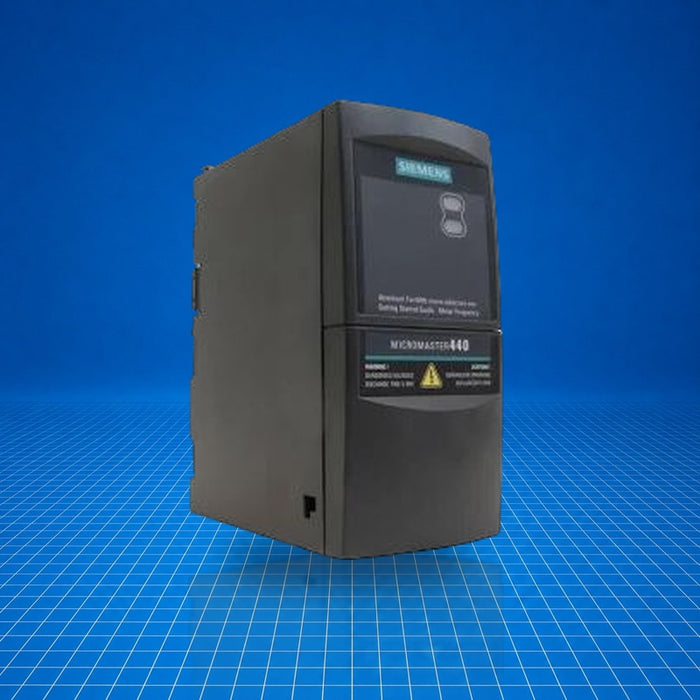

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SE6440-2AB11-2AA1 Siemens
Original price
$987.25
-
Original price
$1,097.25
Original price
$987.25
$987.25
-
$1,097.25
Current price
$987.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SE6440-2AB11-2AA1 is a member of the MICROMASTER 440 frequency converter family. It is a single-phase to three-phase inverter designed for motor control in industrial drive systems. It supports constant torque operation up to 0.12 kW (0.16 hp) and is typically used for small motor control in applications such as conveyor drives, small pumps, and general-purpose machinery where variable speed control is required. 6SE6440-2AB11-2AA1 integrates necessary input filtering and overload capability for reliable operation.
Best Suited For
- Single-phase mains input to three-phase motor control
- Low-power applications (0.12 kW/0.16 hp)
- Variable speed conveyors and small pumps
- Upgrades or replacements where MICROMASTER 440 is standard
Motor output (kW)
0.12 kW
Input voltage range
200-240 V AC ± 10 %
Rated output current
0.90 A
Ambient operating temperature
-10…50 °C
Degree of protection
IP20 / UL open type
Technical Specifications
I/O & Electrical
Input voltage
200…240 V AC ±10 %
Line frequency
47…63 Hz
Number of phases (input)
1 AC
Power factor λ
0.95
Efficiency η
0.96
Rated current (HO)
1.80 A
Output phases
3 AC
Rated output current
0.90 A
Rated power
0.12 kW / 0.16 hp
Pulse frequency
16 000 Hz
Overload capability
150 % for 60 s, 100 % for 240 s in 300 s cycle
Physical & Environmental
Cooling
Fan
Ambient temperature, operation
-10…50 °C
Transport / Storage temperature
-40…70 °C
Degree of protection
IP20 / UL open type
Frame size (FSA) - dimensions (W×H×D)
73.0 × 173.0 × 149.0 mm
Net weight
1.30 kg
