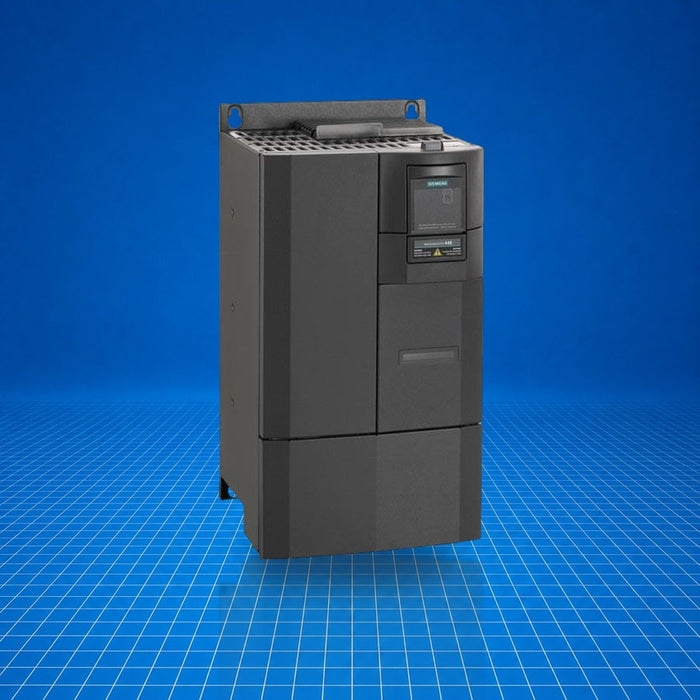

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SE6440-2AD31-5DA1 Siemens
Original price
$2,449.88
-
Original price
$11,283.00
Original price
$2,449.88
$2,449.88
-
$11,283.00
Current price
$2,449.88
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens MICROMASTER 440 frequency inverter, model 6SE6440-2AD31-5DA1, is a three-phase variable-frequency drive with internal Class A EMC filter. It accepts 380-480 V AC at 47-63 Hz and provides controlled motor output of 18.5 kW (low-overload) and 15 kW (high-overload). As part of the MICROMASTER 440 platform, it modulates speed via V/f control (up to 650 Hz) and is suited for applications such as pump, fan, and material handling systems in industrial environments. This unit is offered primarily as a spare or replacement drive.
Best Suited For
- Replacing MICROMASTER 440 drives with 18.5 kW rating
- Pumps and fans requiring V/f control up to 550 Hz
- Industrial motor speed control in 3 × 380-480 V networks
- Applications requiring embedded Class A EMC filtering
Input voltage range
380…480 V AC ±10 %
Rated output power (LO/HO)
18.5 kW / 15 kW
Rated current (LO/HO)
38 A / 32 A
Operating ambient temperature
-10…50 °C
Protection class
IP20
Technical Specifications
I/O & Electrical
Input phases
3 AC
Line frequency
47…63 Hz
Output phases
3 AC
Pulse frequency
4 000 Hz
Output frequency (V/f control)
0…650 Hz (limited to 550 Hz in production)
Overload capability (LO)
140 % for 3 s, then 110 % for 57 s, then 100 % for 240 s in 300 s cycle
Overload capability (HO)
150 % for 60 s, then 100 % for 240 s in 300 s cycle
Physical & Environmental
Cooling method
Fan
Ambient temperature (LO)
-10…40 °C
Ambient temperature (HO)
-10…50 °C
Transport/storage temperature
-40…70 °C
Dimensions (H × W × D)
520 × 275 × 245 mm
Weight
13 kg
Degree of protection
IP20
