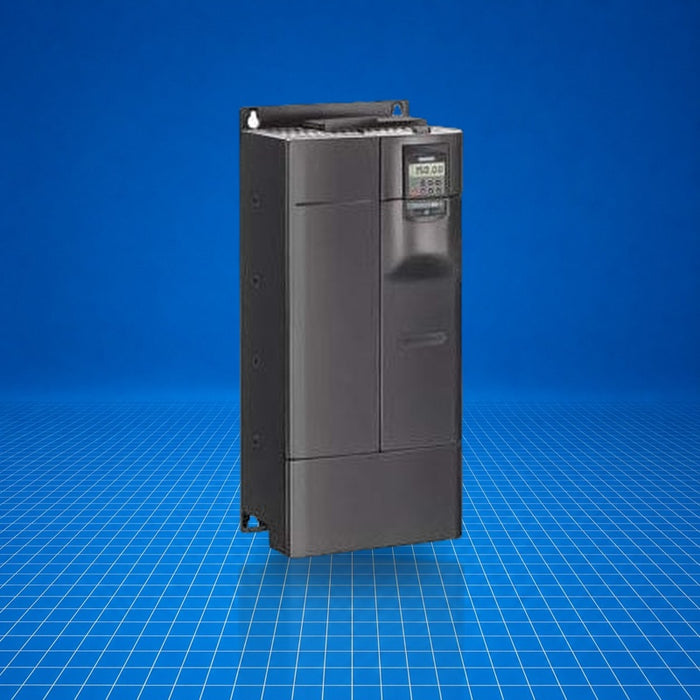

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

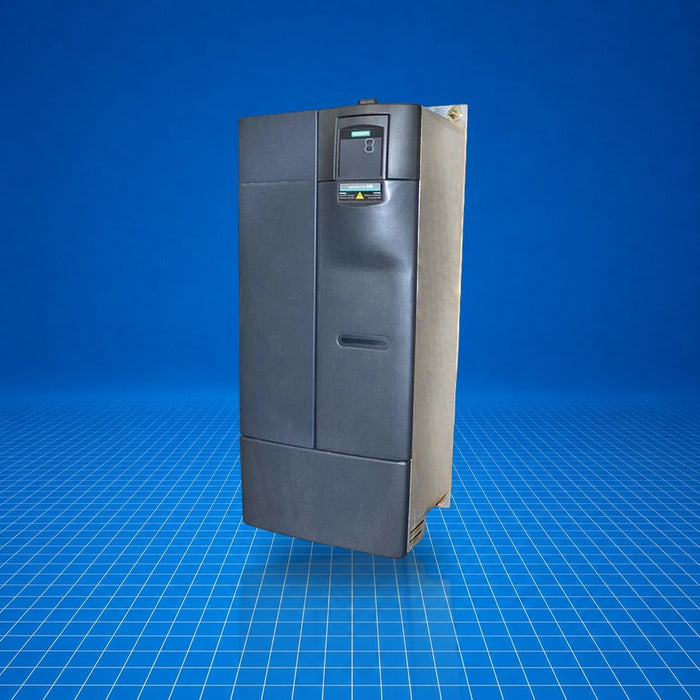

6SE6440-2AD33-7EA1 Siemens
Original price
$14,848.88
-
Original price
$21,783.35
Original price
$14,848.88
$14,848.88
-
$21,783.35
Current price
$14,848.88
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens MICROMASTER 440 variable frequency drive (VFD), model 6SE6440-2AD33-7EA1, is part of the industry-proven MICROMASTER 440 platform. It regulates three-phase AC motors using V/f control up to 480 V, providing adjustable constant and reduced torque output for industrial drives. Typical installations include pumping stations, conveyors, fans, and general machine tool applications requiring flexible motor speed control. The drive accepts 380-480 V AC input and delivers up to 45 kW continuous (60 hp), with overload handling and environmental design per industrial standards.
Best Suited For
- AC motor speed control in conveyors or fans
- Pump and compressor applications requiring adjustable torque
- Retrofitting of older MICROMASTER 440 systems
- Industrial machinery where compact IP20 drive is acceptable
Motor power (CT, continuous)
45 kW / 60 hp
Input voltage
380…480 V AC ±10 %, 3 AC
Output current (LO)
90 A
Ambient temp. (operation)
-10…40 °C (LO), -10…50 °C (HO)
Technical Specifications
I/O & Electrical
Input voltage
380…480 V AC ±10 %, 3 AC
Rated current (LO)
90 A
Rated current (HO)
75 A
Rated power (LO)
45 kW / 60 hp
Rated power (HO)
37 kW / 50 hp
Pulse frequency
4 000 Hz
Output frequency
0…650 Hz (production limit 550 Hz)
Overload capability LO
140 % for 3 s, 110 % for 57 s, 100 % for 240 s in a 300 s cycle
Overload capability HO
150 % for 60 s, 100 % for 240 s in a 300 s cycle
Physical & Environmental
Ambient temperature (operation LO)
-10…40 °C
Ambient temperature (operation HO)
-10…50 °C
Transport / Storage temperature
-40…70 °C
Cooling
Fan
