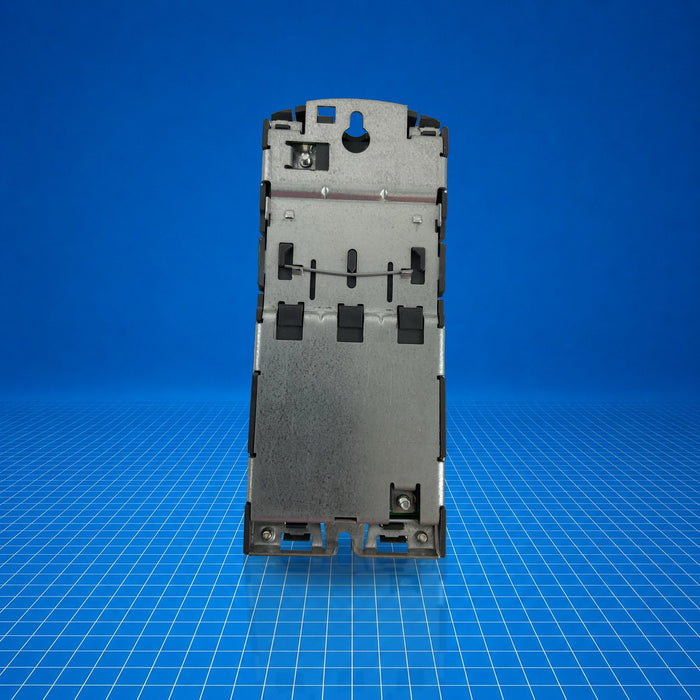

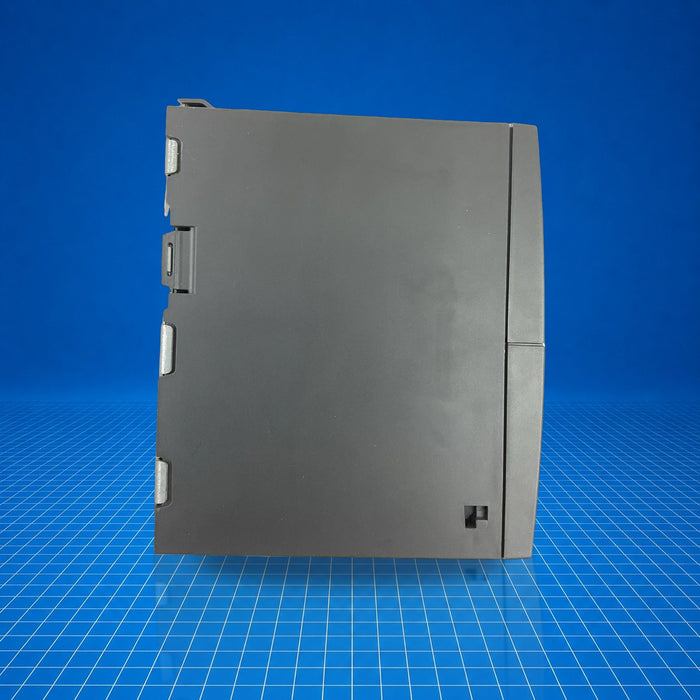

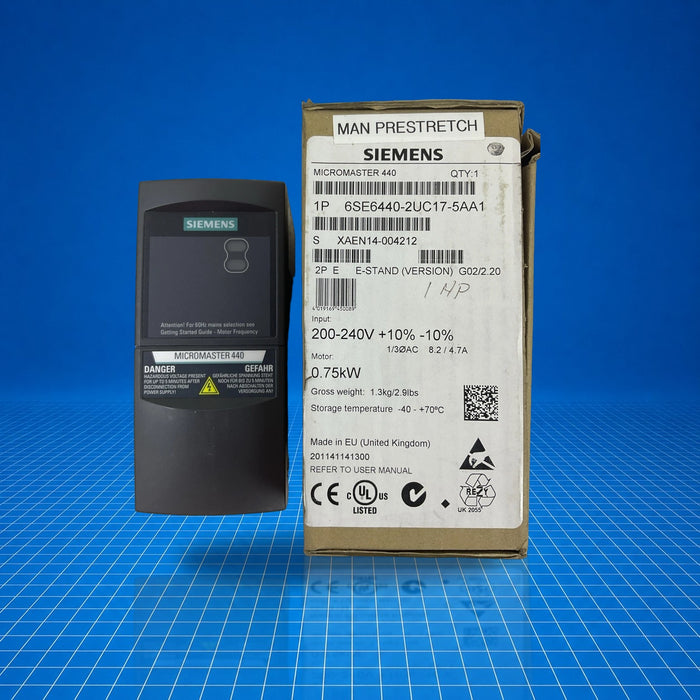

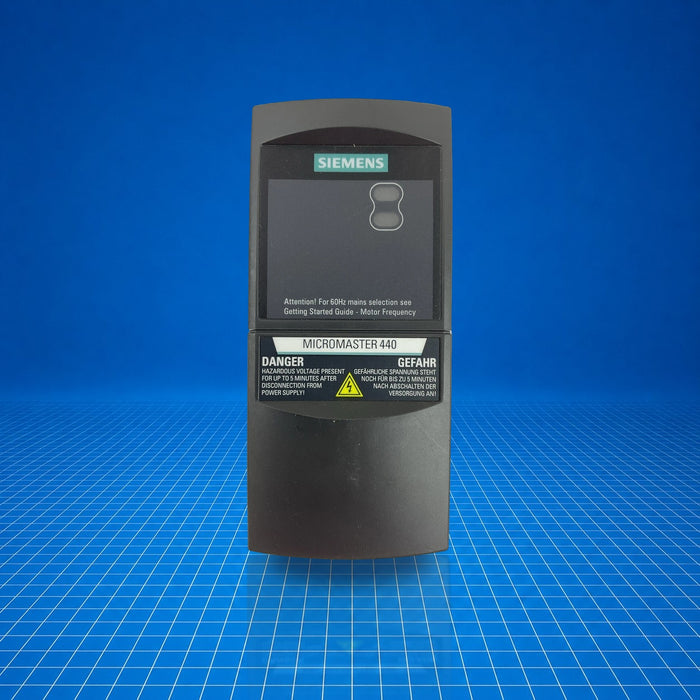

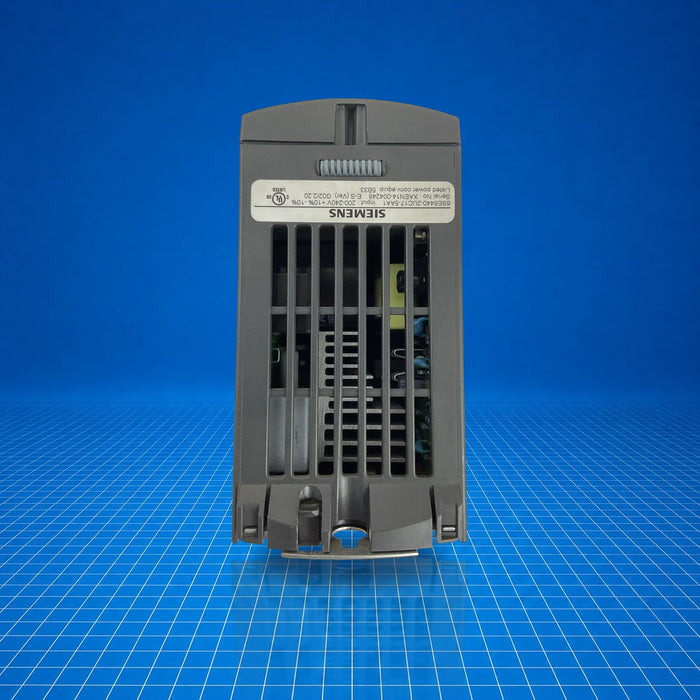

6SE6440-2UC17-5AA1 Siemens
Original price
$400.00
-
Original price
$1,848.89
Original price
$400.00
$400.00
-
$1,848.89
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens MICROMASTER 440 variable frequency drive, model number 6SE6440-2UC17-5AA1, is a single- or three-phase AC inverter of Frame Size A used to control 0.75 kW (1.0 hp) induction motors via constant-torque operation. It is part of the MICROMASTER 440 family and fits into motor control systems for pump drives, conveyor systems, and general machinery. The drive accepts 200-240 V AC input and enables precise speed/frequency control without external filters or chokes.
Best Suited For
- Replacement for discontinued MICROMASTER 440 drives
- Constant-torque motor control (e.g. conveyors, pumps)
- Indoor cabinet or panel mounting
- Simple single-phase or three-phase installations
Motor output
0.75 kW / 1.0 hp
Input voltage
1/3 AC 200-240 V ±10 %
Output current (CT)
3.9 A
Overload capability
150 % for 60 s
Protection class
IP20
Technical Specifications
I/O & Electrical
Input voltage
1 / 3 AC 200-240 V ±10 %
Input frequency
47-63 Hz
Output frequency range
0-650 Hz (typical)
Rated output current (CT-Output)
3.9 A
Overload capability
150 % output current for 60 s
Physical & Environmental
Cooling
Fan
Ambient temperature (operation)
-10…+50 °C
Transport/storage temperature
-40…+70 °C
Dimensions (H×W×D)
173 × 73 × 149 mm
Protection class
IP20
Weight
1.3 kg
Certifications
RoHS
Compliant with RoHS; product discontinued (spare-parts only).
