Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

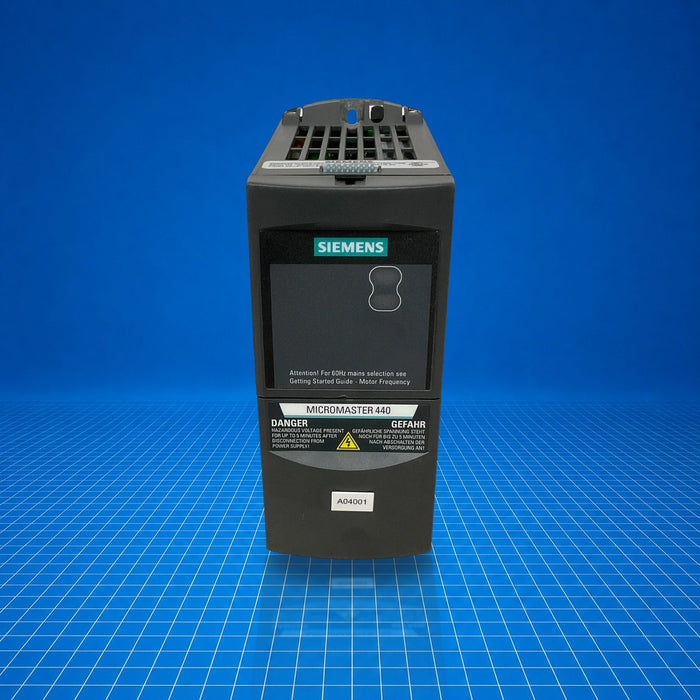

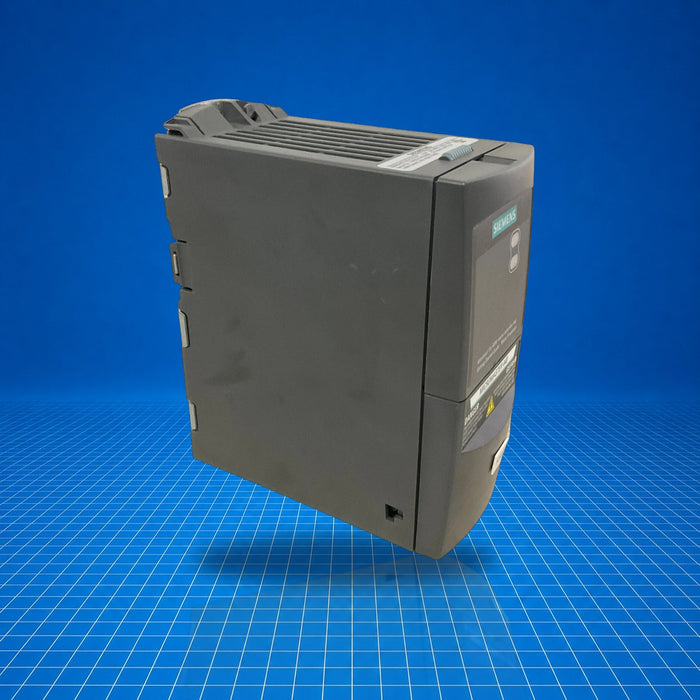

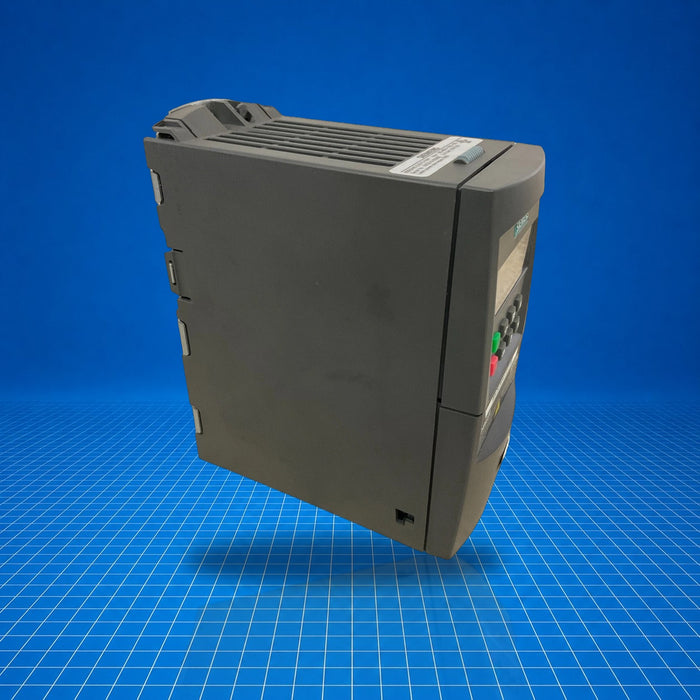

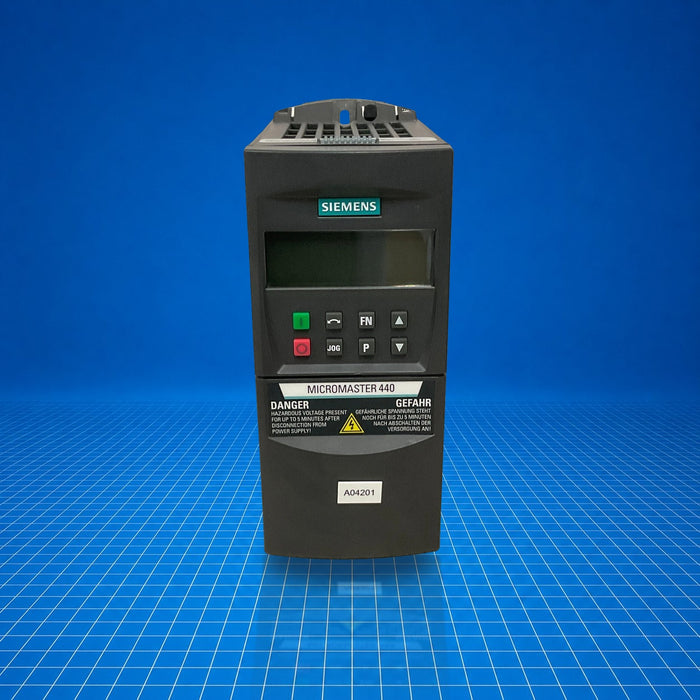

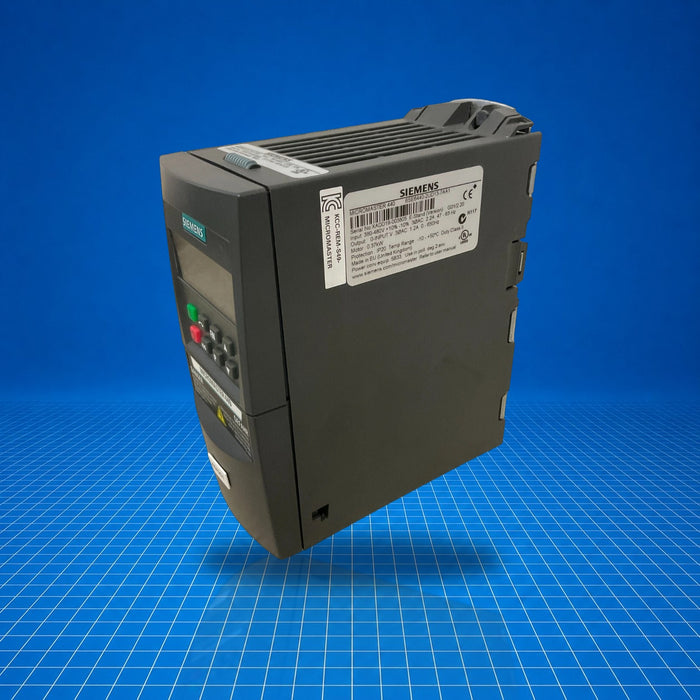

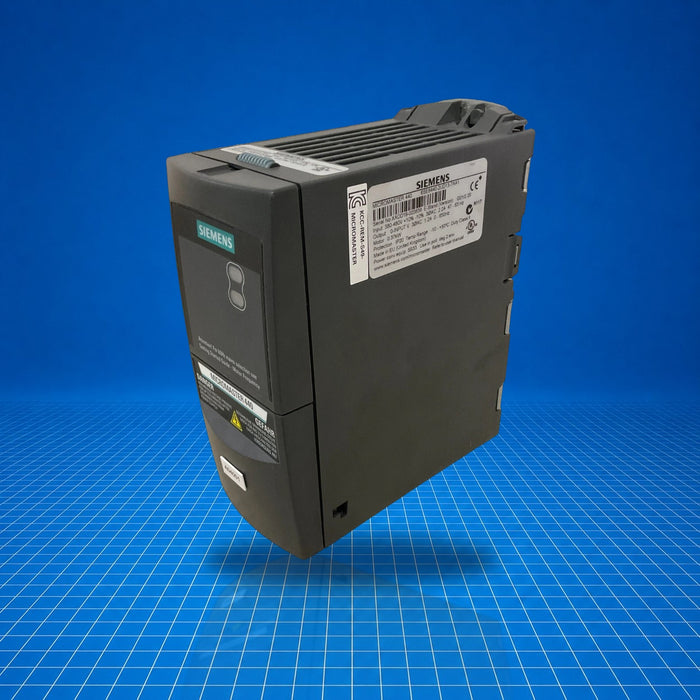

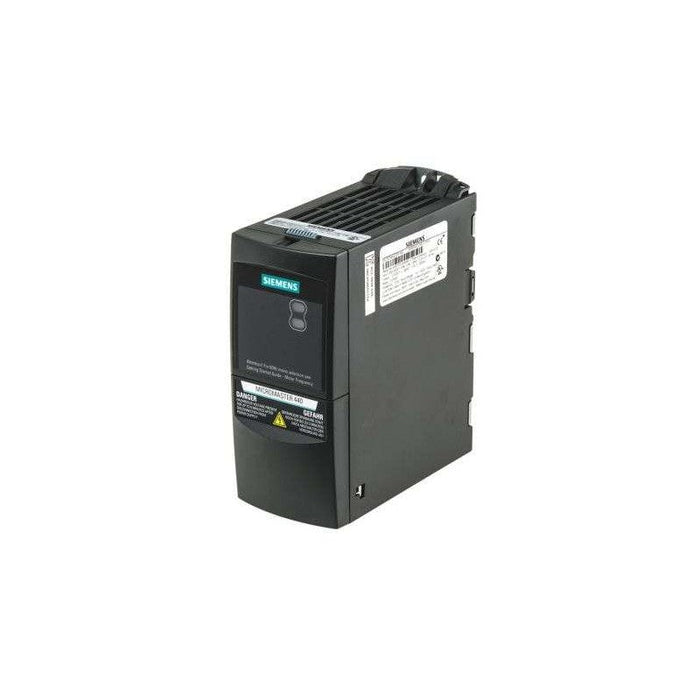

The Siemens 6SE6440-2UD13-7AA1 is a MICROMASTER 440 series AC motor inverter (variable frequency drive). It provides continuous motor drive control up to 0.37 kW (0.5 hp), converting three-phase 380-480 V AC supply (±10 %) at 47-63 Hz to a variable-frequency output. Typically it is used in conveyor drives, pumps, fans or small machine tool applications where adjustable speed control of low-power AC motors is required. Practical roles include replacing fixed-speed starters, speed control in manufacturing lines, and energy-saving retrofit upgrades.
Best Suited For
- Low-power motor speed control (0.37 kW / 0.5 hp)
- Three-phase 380-480 V AC supply environments
- Conveyor, fan or pump drives
- Retrofit and replacement of fixed-speed starters
Rated output power
0.37 kW / 0.50 hp
Input voltage
3 AC 380-480 V ±10 %
Overload capability
150 % for 60 s, then 100 % for 240 s
IP rating
IP20 / UL open type
Ambient temp (operation)
-10…50 °C
Technical Specifications
I/O & Electrical
Input voltage range
3 AC 380 V - 480 V ±10 %
Input frequency
47-63 Hz
Rated output current
2.20 A (HO)
Output voltage
3 AC 480 V
Rated output current (CT)
1.30 A
Motor output rating
0.37 kW / 0.5 hp
Pulse frequency
4 000 Hz
Output frequency range
0…650 Hz (legally limited to 550 Hz)
Overload
150 % for 60 s, then 100 % for 240 s
Communication & Power
Power factor λ
≥ 0.95
Efficiency η
≈ 0.96
Physical & Environmental
Degree of protection
IP20 / UL open type
Dimensions (WxHxD)
73 mm × 173 mm × 149 mm
Net weight
1.30 kg
Ambient temperature (operation)
-10…50 °C
Ambient temperature (storage/transport)
-40…70 °C
