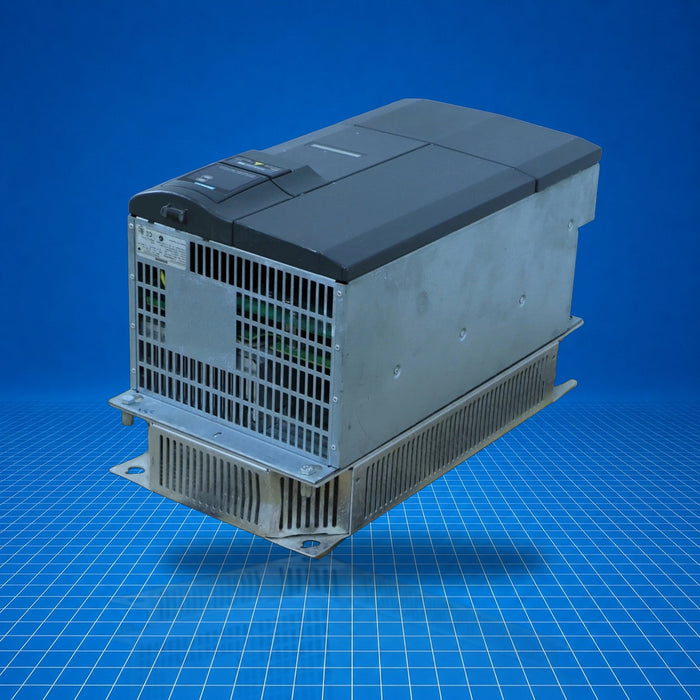

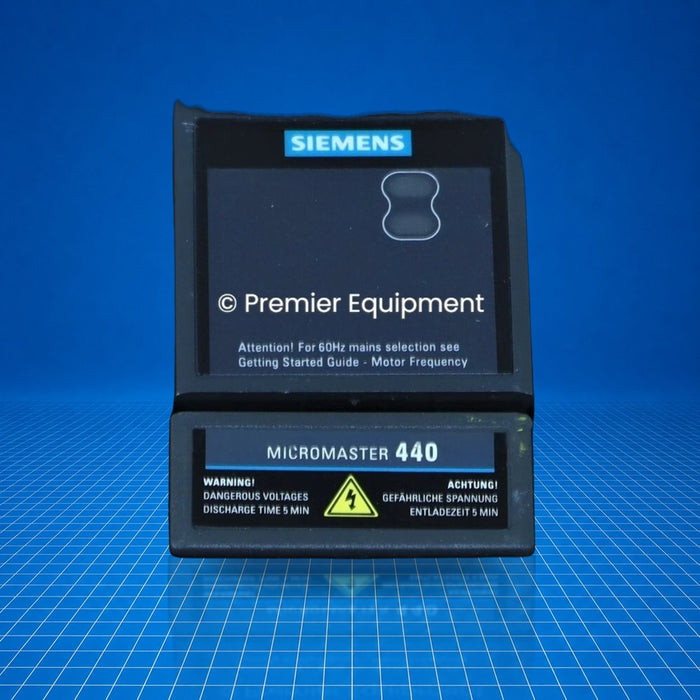

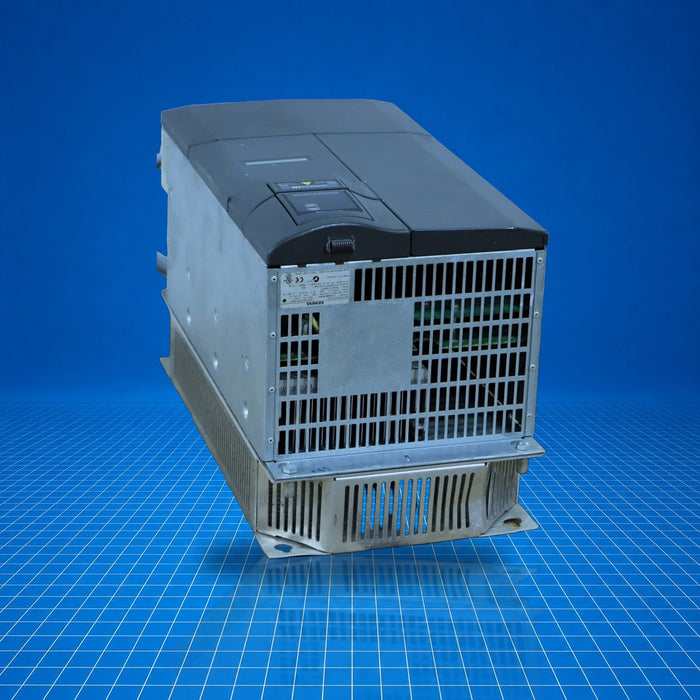

6SE6440-2UD31-5DA1 Siemens
Original price
$1,910.98
-
Original price
$3,801.46
Original price
$1,910.98
$1,910.98
-
$3,801.46
Current price
$1,910.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens MICROMASTER 440 variable frequency drive, model 6SE6440-2UD31-5DA1, regulates three-phase asynchronous motors. It functions within the MICROMASTER family and provides precise speed and torque control via V/f and sensorless flux vector methods. Designed for integration in drive control loops, it suits industrial systems where adjustable motor drive control is needed-such as pumps, conveyors, compressors, and fans. It accepts 380-480 V AC 3-phase input and delivers up to 15 kW constant torque or 18.5 kW variable torque.
Best Suited For
- General-purpose motor speed control
- Pump and fan systems
- Conveyor line variable-speed operation
- Retrofitting older drive panels
Supply voltage
380-480 V AC 3-phase ±10%
Power rating (constant/variable torque)
15 kW / 18.5 kW
I/O
6 digital inputs, 2 analog inputs, 3 relay outputs, 2 analog outputs
Degree of protection
IP20
Technical Specifications
I/O & Electrical
Supply voltage
380-480 V AC 3-phase ±10%
Constant torque output power
15 kW
Variable torque output power
18.5 kW
Overload capacity (constant torque)
150% for 60 s, 200% for 3 s
Overload capacity (variable torque)
110% for 60 s, 140% for 3 s
Input current
33.8 A (constant torque), 37 A (variable torque)
Frequency adjustment range
0-650 Hz
I/O counts
6 digital inputs; 2 analog inputs; 3 relay outputs; 2 analog outputs; 1 PTC/KTY interface
Physical & Environmental
Dimensions (H×W×D)
520 mm × 275 mm × 245 mm
Weight
16 kg (approx. 35.3 lbs)
Degree of protection
IP20 / UL open type
Operating temperature
-10 °C to +50 °C
Mounting
Wall/cabinet with M8 bolts; 300 mm vertical clearance
