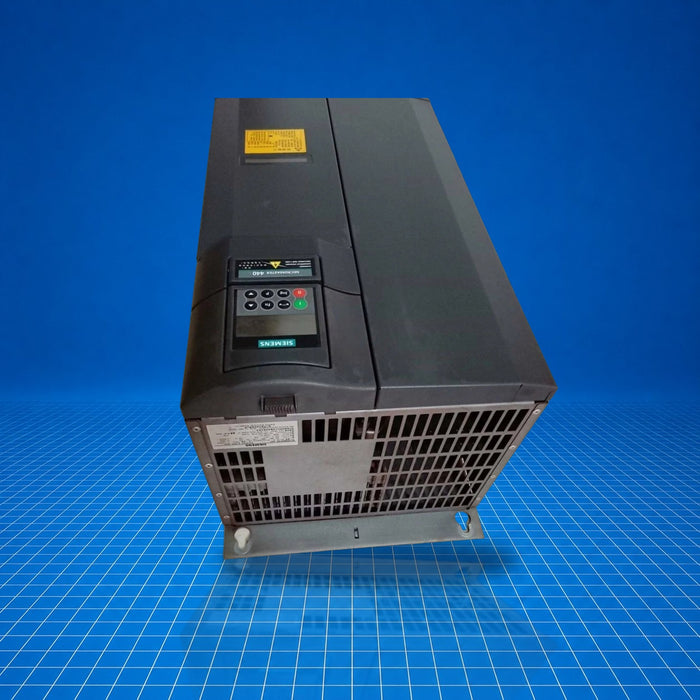

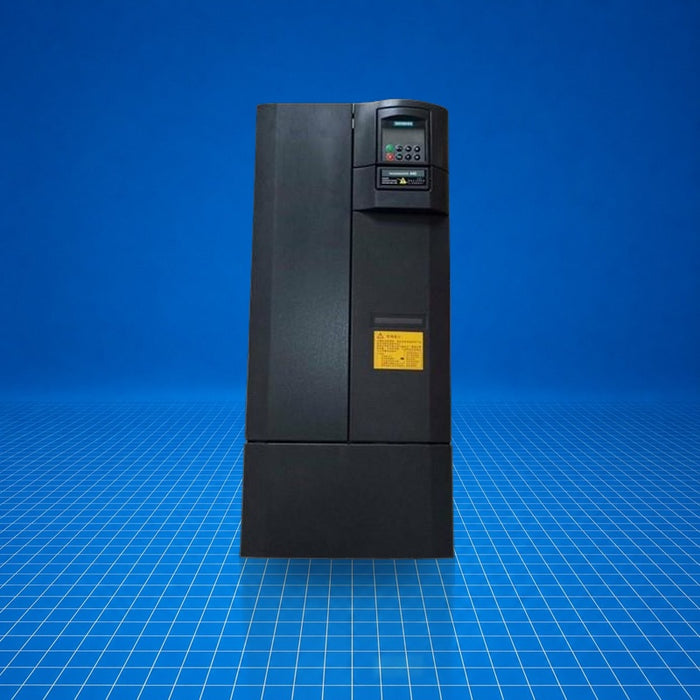

6SE6440-2UD33-0EB1 Siemens
Original price
$0.00
-
Original price
$2,723.22
Original price
$2,723.22
$0.00
-
$2,723.22
Current price
$2,723.22
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SE6440-2UD33-0EB1 is a spare-part variant of the MicroMaster 440 variable frequency drive (VFD), designed for three-phase 380-480 V AC motor control. It delivers up to 30 kW (constant torque) and supports temporary overloads up to 200 % for 3 s. It integrates into industrial motor control systems to regulate motor speed and torque. Typical applications include retrofit drives in existing panels, spare-part replacements in standard drive installations, and maintenance spare units. Part number 6SE6440-2UD33-0EB1.
Best Suited For
- Retrofit of MicroMaster 440 drive systems
- Field replacement in existing 30 kW drive panels
- Maintenance stock for three-phase variable-speed applications
- Industrial pump, fan, or conveyor control at 380-480 V
Voltage range
3 AC 380-480 V ±10 %
Constant torque power
30 kW
Square-law torque power
37 kW
Dimensions (H×W×D)
650 × 275 × 245 mm
Degree of protection
IP20
Technical Specifications
Communication & Power
Input voltage
3 AC 380-480 V ±10 %
Line frequency
47-63 Hz
Constant torque rating
30 kW
Square-law torque rating
37 kW
Physical & Environmental
Dimensions (H×W×D)
650 × 275 × 245 mm
Net weight
20 kg
Degree of protection
IP20
Ambient temperature (operation)
-10 ... +50 °C
