6SE7021-0TP50-Z Siemens
Original price
$0.00
-
Original price
$1,374.97
Original price
$1,374.97
$0.00
-
$1,374.97
Current price
$1,374.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

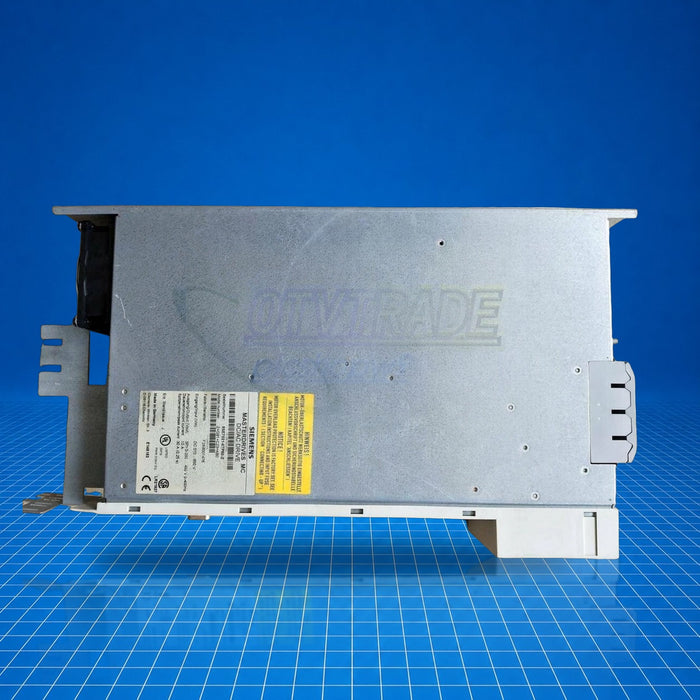

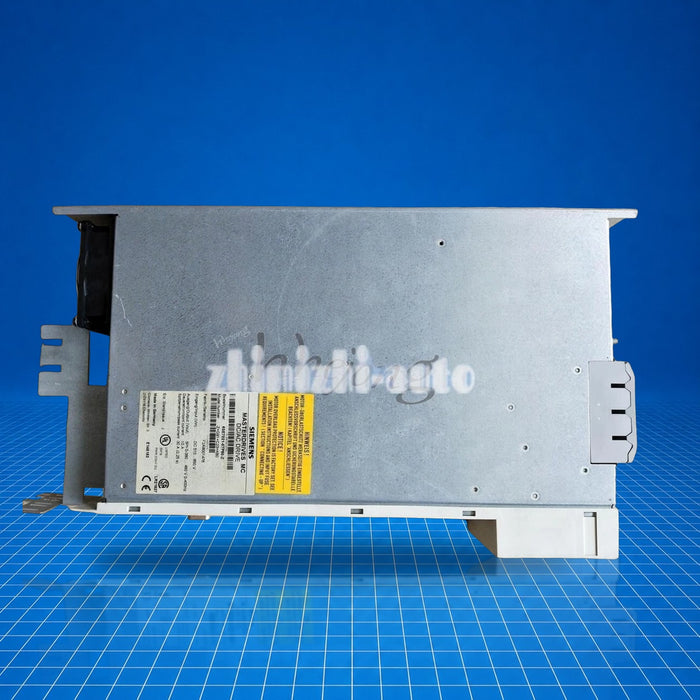

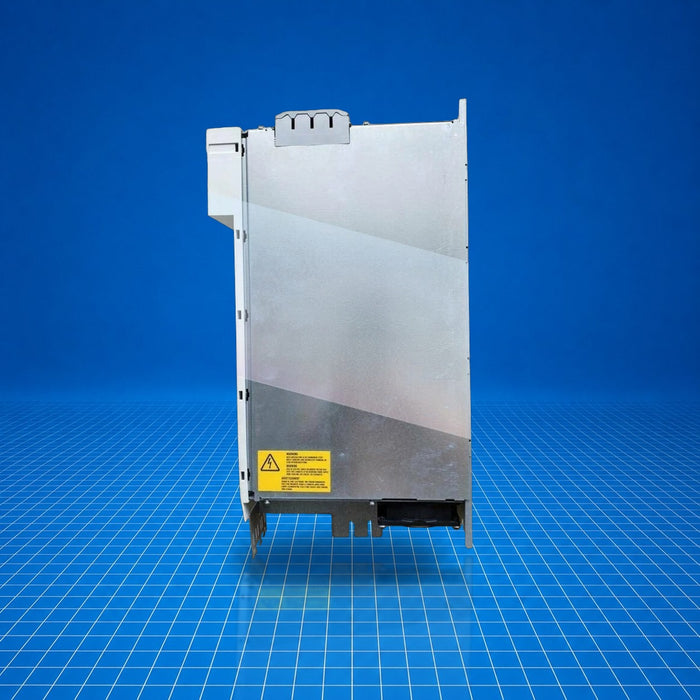

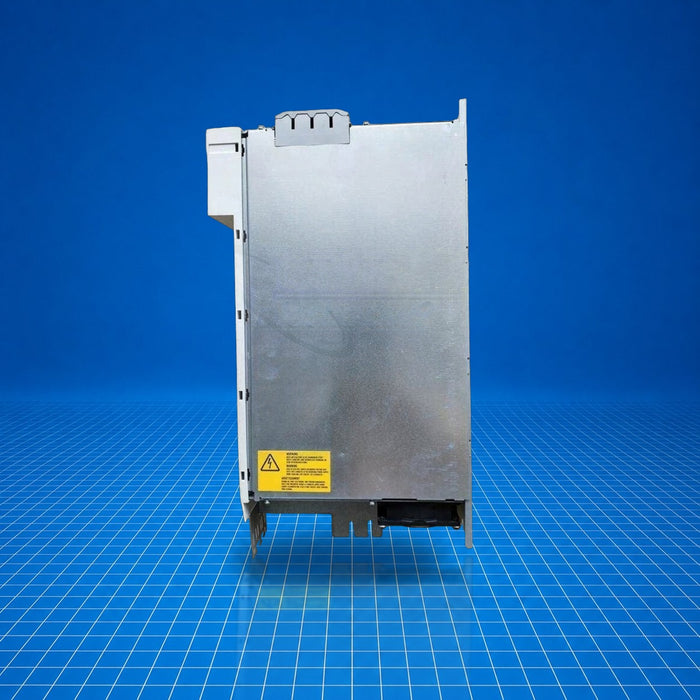

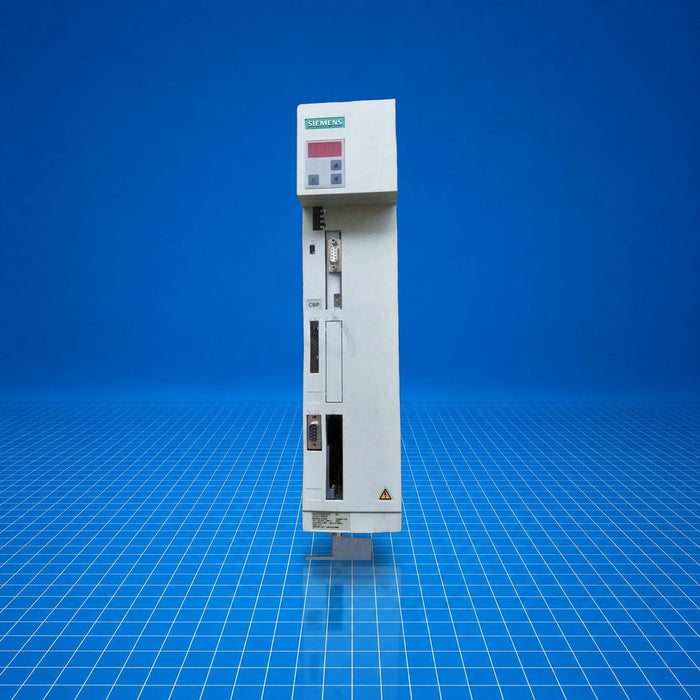

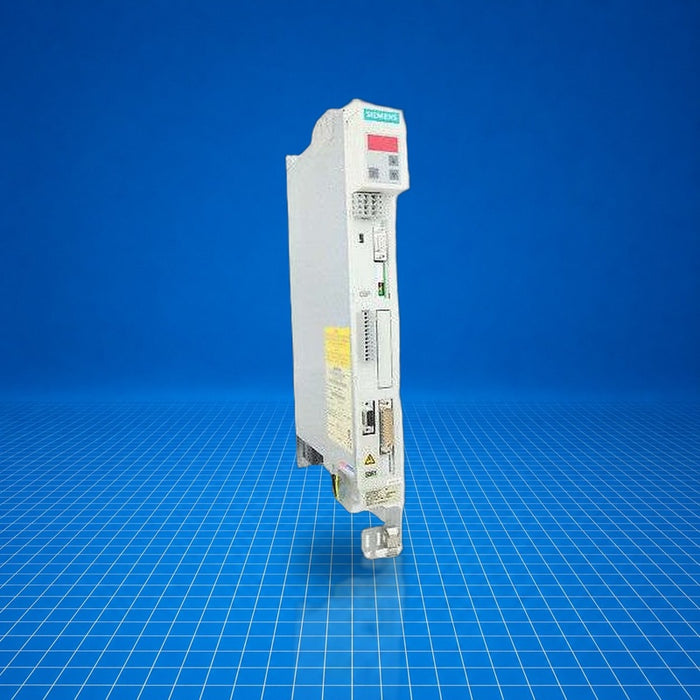

The Siemens 6SE7021-0TP50-Z is a Compact-PLUS series DC-AC inverter (SIMOVERT Masterdrives platform). It converts a 3-phase AC supply (380 V -15% to 480 V +10%) into variable-frequency output to control AC motors. The unit is designed for machine-level motion control applications, such as positioning axes, pumps or conveyors. It offers rated output current of 10.2 A and includes integrated DC-link drive electronics. Typically used as a standalone inverter module on compact machinery and small drive systems. (6SE7021-0TP50-Z)
Best Suited For
- Variable-frequency motor speed control in compact machines
- Standalone drive axes in production equipment
- DC-link integration in small drive systems
- Replacement in existing Compact-PLUS inverter systems
Rated output current
10.2 A
Supply voltage range
3 AC 380 V -15% to 480 V +10%
Dimensions (WxHxD)
90 × 360 × 260 mm
Weight
approx. 3.8 kg
Technical Specifications
I/O & Electrical
Rated output current
10.2 A
Supply voltage
3 AC 380 V -15% to 480 V +10%
Communication & Power
Auxiliary current requirement (DC 24 V)
0.018 A
Power loss at 5 kHz
0.156 kW
Physical & Environmental
Dimensions (W × H × D)
90 × 360 × 260 mm
Weight
approx. 3.8 kg
