6SE7031-2TF60-Z Siemens
Original price
$5,099.92
-
Original price
$16,068.90
Original price
$5,099.92
$5,099.92
-
$16,068.90
Current price
$5,099.92
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

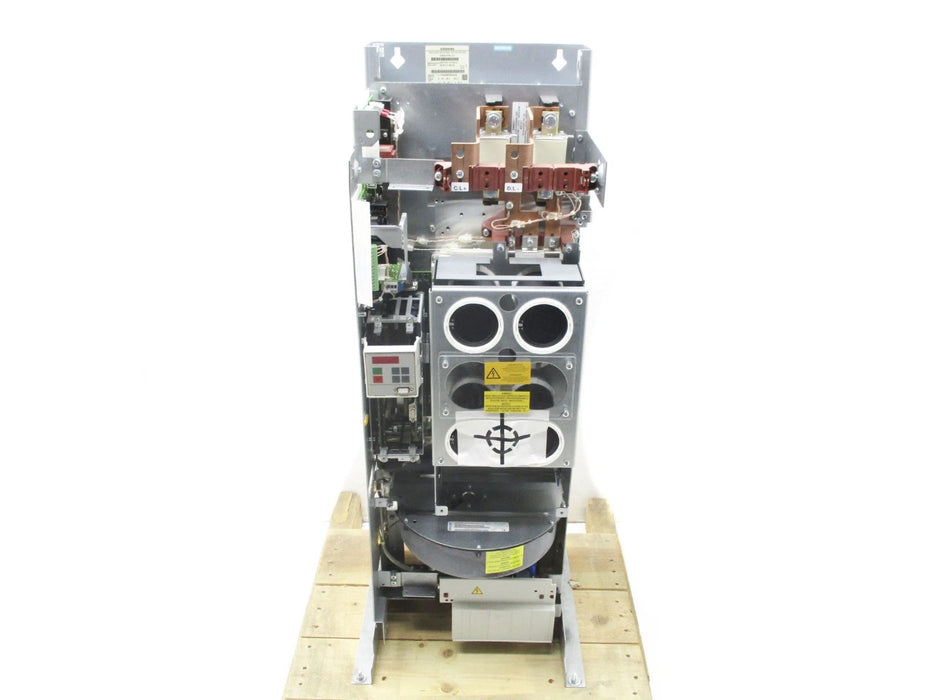

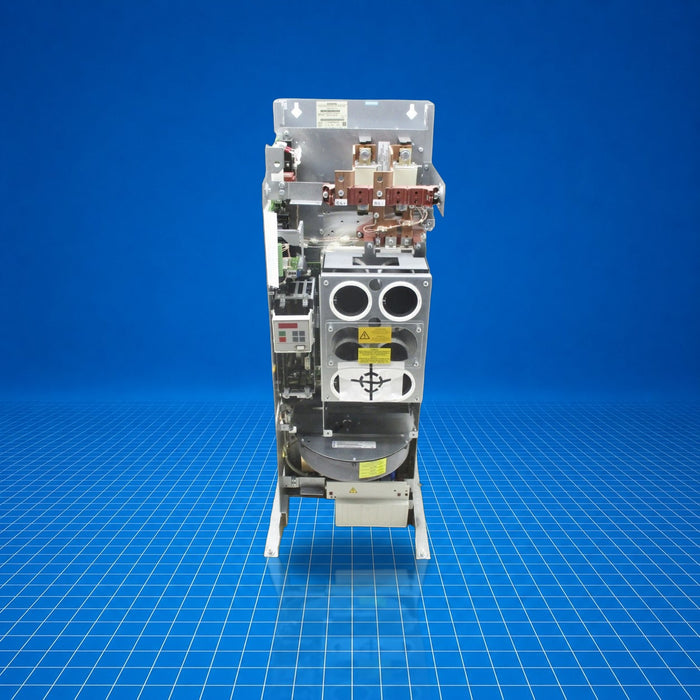

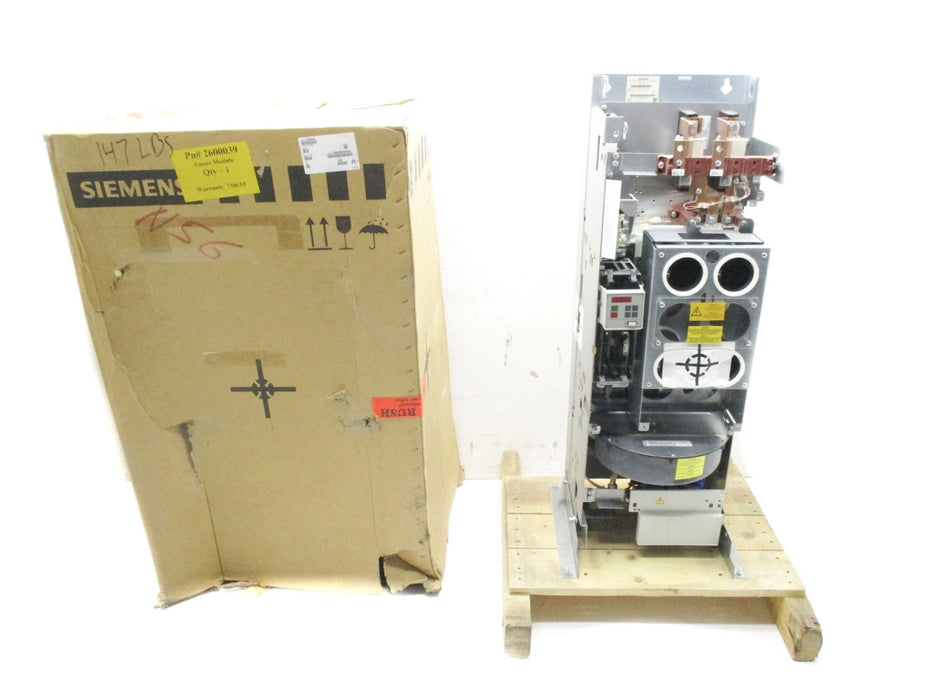

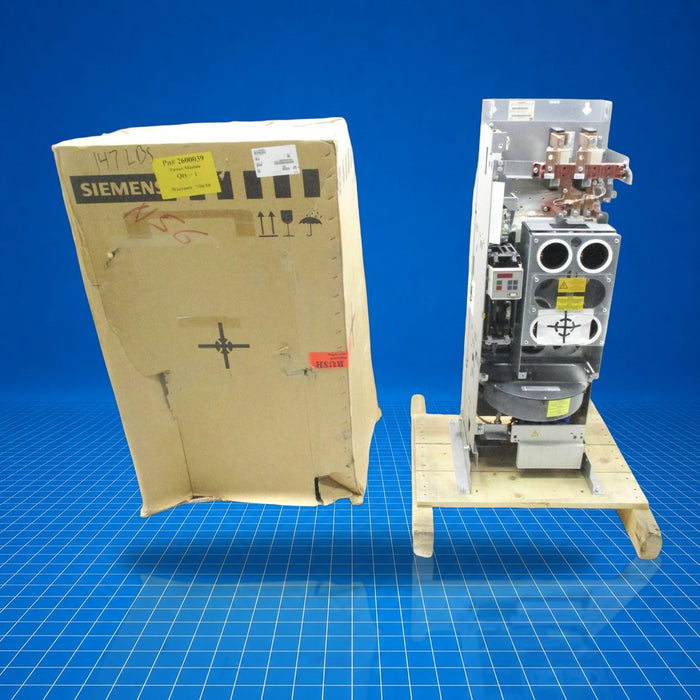

The Siemens 6SE7031-2TF60-Z is a chassis-type vector control inverter module in the SIMOVERT MASTERDRIVES platform. It accepts DC input voltage between 510 V and 650 V and delivers up to 55 kW output, rated at 124 A, using air cooling. It is designed for panel-mount, built-in installations for velocity or torque control of three-phase motors, commonly applied in high-voltage DC drive systems, machine tools, processing equipment or infrastructure control panels. 6SE7031-2TF60-Z enables precise motor control in industrial automation environments.
Best Suited For
- High-voltage DC-fed motor drive panels
- Torque or vector control of three-phase motors
- Retrofit of SIMOVERT MASTERDRIVES systems
- Built-in module installations requiring chassis-type inverter
Input voltage range
510-650 V DC
Output power
55 kW
Rated current
124 A
Cooling method
Air-cooled
Enclosure type
IP00 (open chassis)
Technical Specifications
I/O & Electrical
Input voltage range
510-650 V DC
Rated output current
124 A
Communication & Power
Output power
55 kW
Cooling method
Air-cooled
Auxiliary power requirement
Requires 24 V DC (20-30 V operational)
Physical & Environmental
Ambient operating temperature
0 °C to +40 °C
Storage temperature
-25 °C to +70 °C
Altitude condition
Derating above 1 000 m
Dimensions (W × H × D)
360 mm × 1050 mm × 350 mm
Weight
24.69 kg (54.44 lbs)
