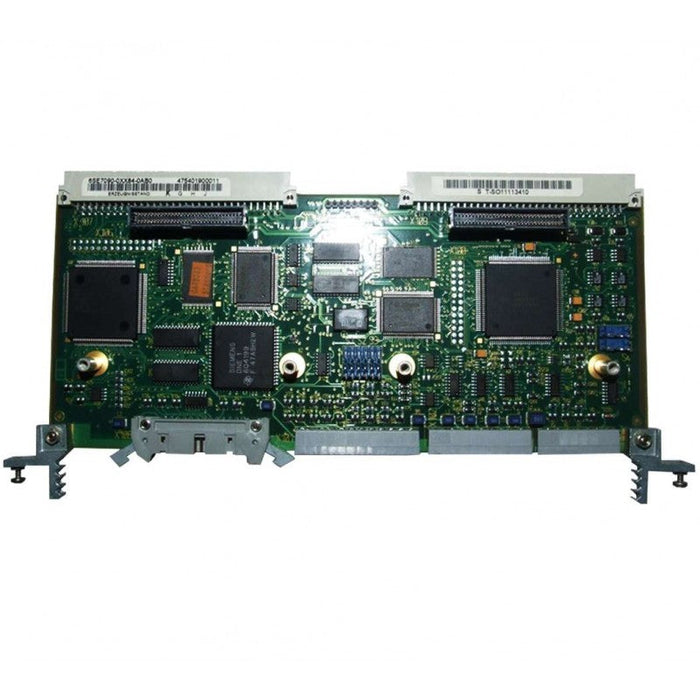

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SE7090-0XX84-0AB0 Siemens
Original price
$825.00
-
Original price
$2,857.80
Original price
$825.00
$825.00
-
$2,857.80
Current price
$825.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SE7090-0XX84-0AB0 is a Siemens SIMOVERT MASTERDRIVES control module used for precision motor control via closed-loop and open-loop methods, including vector control. It interfaces with serial control systems via RS232/RS485 and USS bus, and provides configurable digital and analog I/O plus auxiliary supply for encoders and sensors. Use of the exact part number 6SE7090-0XX84-0AB0 is intended for integration into motion control systems requiring structured I/O and encoder connectivity.
Best Suited For
- Integration in SIMOVERT MASTERDRIVES motion control systems
- Closed-loop and open-loop vector control applications
- Systems requiring encoder and motor temperature sensor interfaces
- Environments with -25 °C to +60 °C operating temperature
Control Methods
Closed-loop & open-loop
Serial Interfaces
RS232/RS485 (PC/OP1S) & USS bus
Digital I/O
4 configurable + 3 inputs
Analog I/O
2 inputs (current/voltage) + 2 outputs (current/voltage)
Auxiliary Voltage Supply
24 V DC (max 150 mA); 10 V DC (max 5 mA)
Technical Specifications
I/O & Electrical
Digital Inputs
3 digital inputs
Digital I/O
4 configurable digital I/Os
Analog Inputs
2 analog inputs (current/voltage)
Analog Outputs
2 analog outputs (current/voltage)
Auxiliary Voltage Supply
24 V DC (max 150 mA)
Auxiliary Potentiometer Supply
10 V DC (max 5 mA)
Communication & Power
Serial Interface (PC/OP1S)
RS232/RS485
Fieldbus Interface
USS bus (RS485)
Physical & Environmental
Encoder Connection
HTL unipolar pulse encoder
Motor Temperature Sensor
PTC/KTY84
Operating Temperature Range
-25 °C to +60 °C
