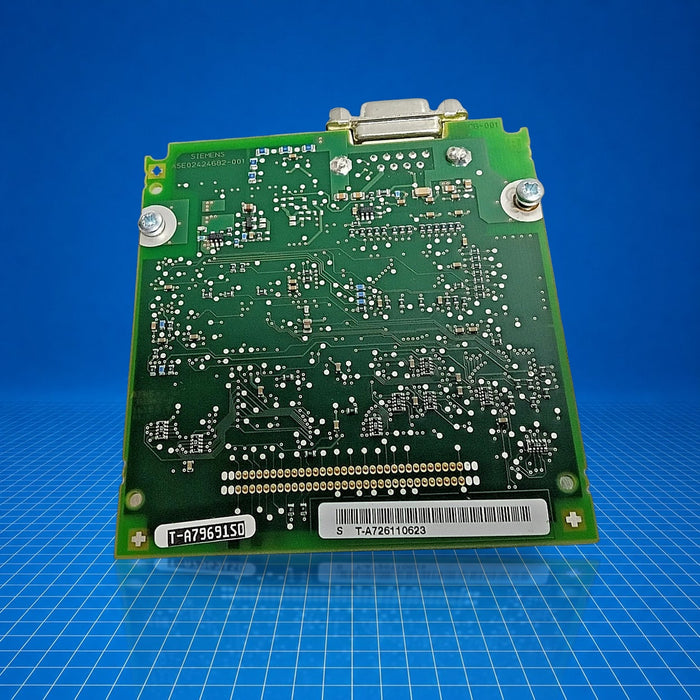

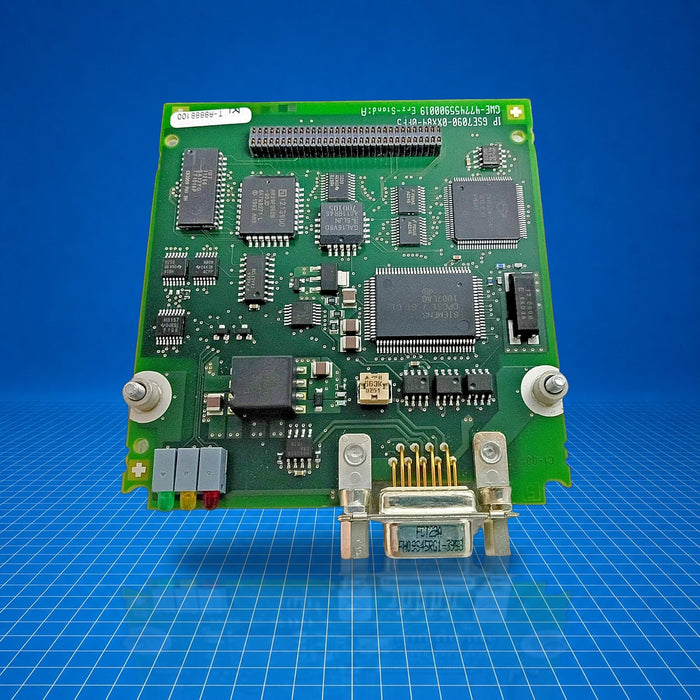

6SE7090-0XX84-0FF5 Siemens
Original price
$441.54
-
Original price
$907.47
Original price
$441.54
$441.54
-
$907.47
Current price
$441.54
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SE7090-0XX84-0FF5 is a PROFIBUS communication option board (CBP2) for SIMOVERT MASTERDRIVES. This module enables PROFIBUS-based motion control communication between drive controllers and fieldbus systems. Typically installed in industrial drive systems for cranes, conveyors, or machine tools, it enables reliable data exchange within SIMOVERT-based motion control architectures. 6SE7090-0XX84-0FF5 is designed for straightforward integration in compatible Siemens SIMOVERT platforms.
Best Suited For
- SIMOVERT MASTERDRIVES PROFIBUS network integration
- Retrofit or replacement in PROFIBUS-based motion control systems
- Drive communication interface in crane or conveyor applications
- Use where space-efficient, board-level PROFIBUS module is required
Supply voltage
5 V ± 5 %
Output voltage
5 V ± 10 %
Data transfer rate
max. 12 Mbaud
Operating temperature
0 °C to +70 °C
Dimensions
90 mm × 83 mm
Technical Specifications
I/O & Electrical
Supply voltage
5 V ± 5 %
Supply current
max. 600 mA
Output voltage
5 V ± 10 %
Output current
max. 100 mA (electrically isolated)
Data transfer rate
max. 12 Mbaud
Communication & Power
Communication protocol
PROFIBUS (CBP2)
Physical & Environmental
Dimensions (L × W)
90 mm × 83 mm
Operating temperature
0 °C to +70 °C
Storage/transport temperature
-25 °C to +70 °C
Relative humidity (operation)
≤ 85 % (non-condensing)
Relative humidity (transport/storage)
≤ 95 % (non-condensing)
Pollution degree
2 (IEC 664-1)
Cooling method
Natural-air cooling
Deflection (stationary)
0.15 mm
Acceleration (stationary)
19.6 m/s²
Deflection (transport)
3.5 mm
Acceleration (transport)
9.8 m/s²
Climate class
3K3 (DIN IEC 721-3-3)
