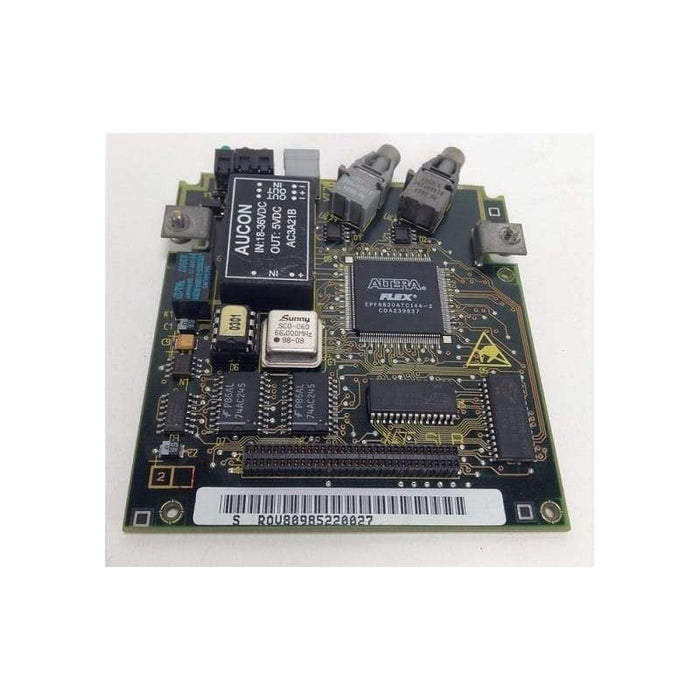

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

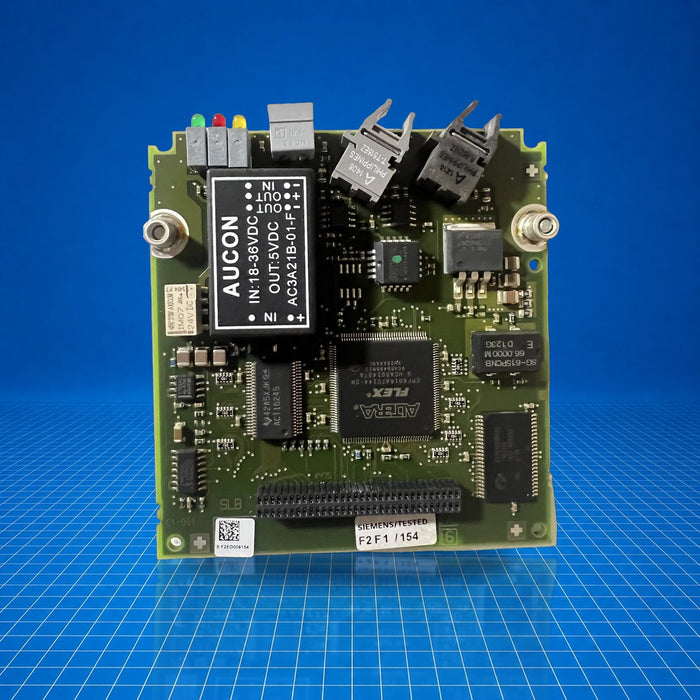

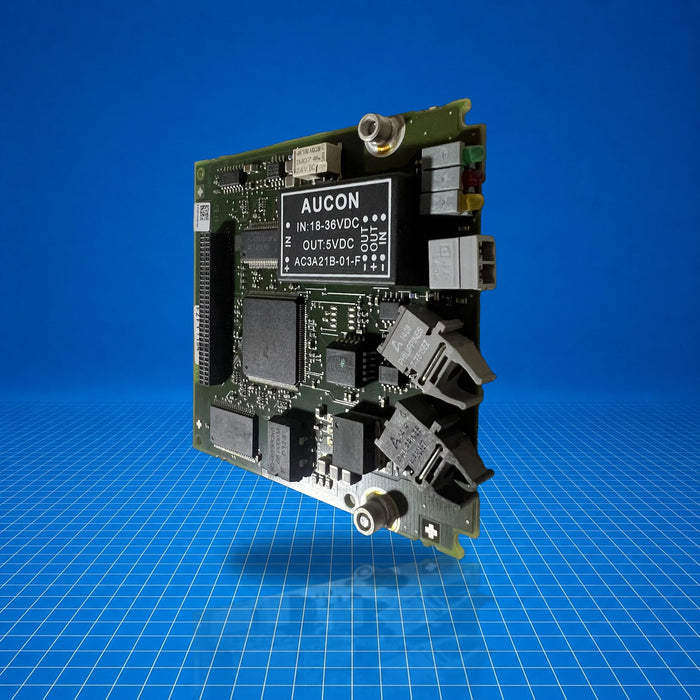

6SE7090-0XX84-0FJ0 Siemens
Original price
$327.00
-
Original price
$2,697.75
Original price
$327.00
$327.00
-
$2,697.75
Current price
$327.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens module 6SE7090-0XX84-0FJ0 belongs to the SIMOVERT MASTERDRIVES family, serving as an option/expansion module for motion control systems. Modules in this family provide communication, encoder interface, or parameterization functions when installed in drive control hardware. They are typically used in industrial applications such as vector drives and motion systems, offering functions like PROFIBUS communication, tachometer interfacing, or operating unit control. The part number may appear in variants (e.g., -0FF5, -3DB0) with similar forms and functions.
Best Suited For
- PROFIBUS communication module for SIMOVERT drives
- Digital tachometer interface in motion control systems
- Parameterizing or operating unit integration in SIMOVERT drives
Module board size
90 × 83 mm
Supply voltage
5 V DC ±5 %, 600 mA (internal)
Encoder supply (DTI variant)
24 V DC -16 %/+25 %, 300 mA (HTL), 150 mA (TTL)
Operating temperature
0 °C to +55 °C
Technical Specifications
I/O & Electrical
Internal supply voltage
5 V DC ±5 %, max. 600 mA
Encoder supply voltage (DTI)
24 V DC -16 %/+25 %
Encoder load current (HTL)
300 mA
Encoder load current (TTL)
400 mA
Communication & Power
Output voltage for isolated supply
5 V DC ±10 %, max. 100 mA
Data transfer rate (CBP variant)
max. 12 MBaud
Physical & Environmental
Mechanical size
90 × 83 mm
Operating temperature
0 °C to +55 °C (DTI) / up to +70 °C (CBP)
Storage/transport temperature
-25 °C to +70 °C
Protection class
IP00
