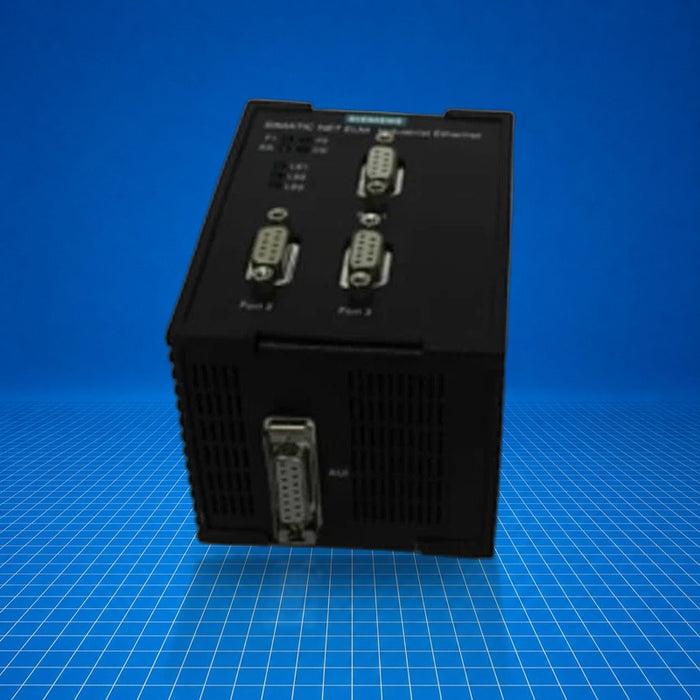

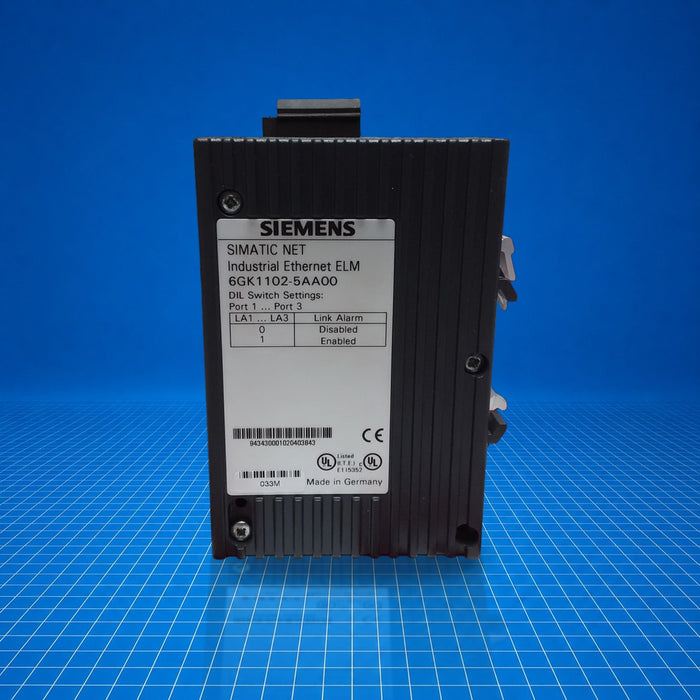

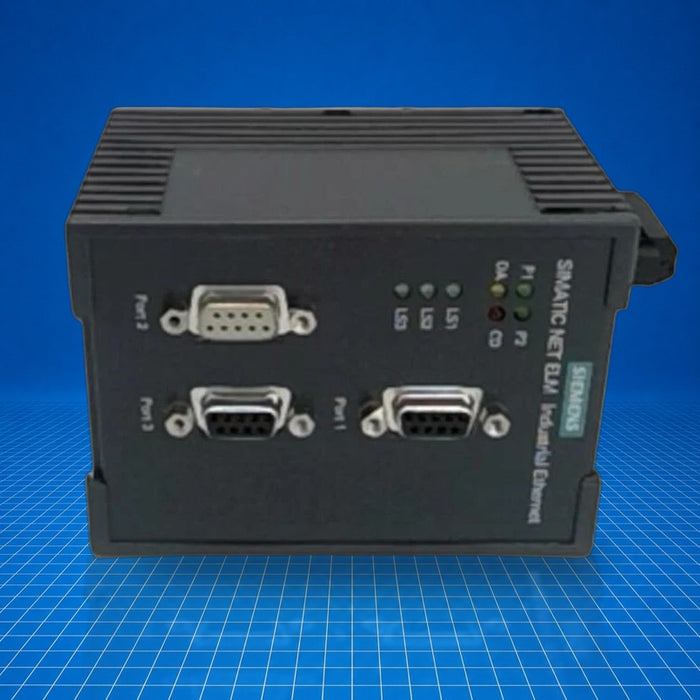

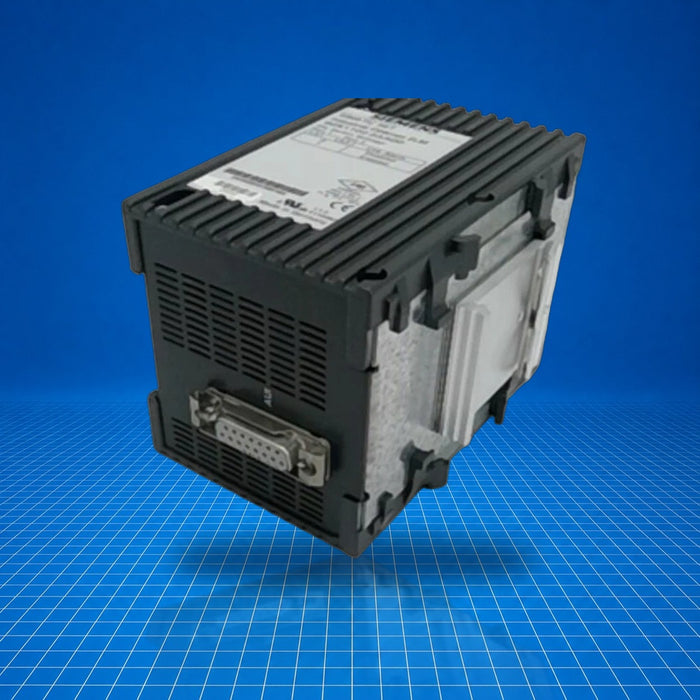

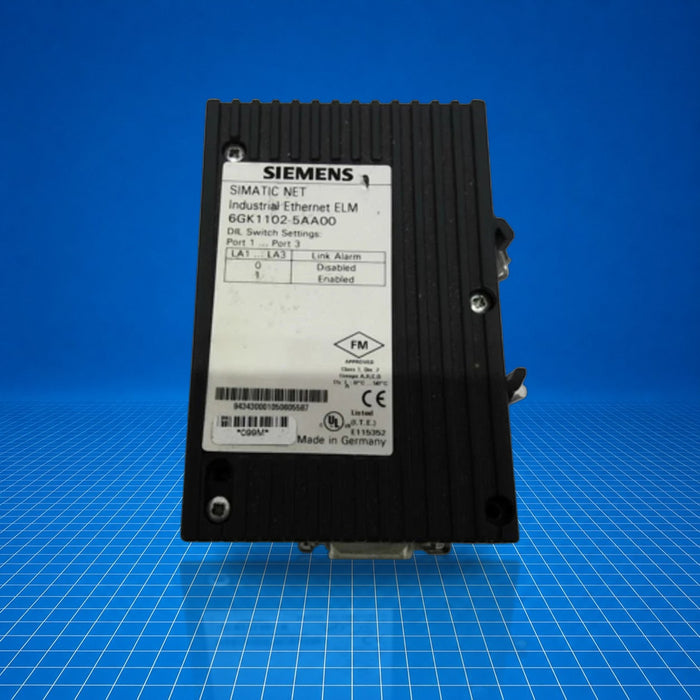

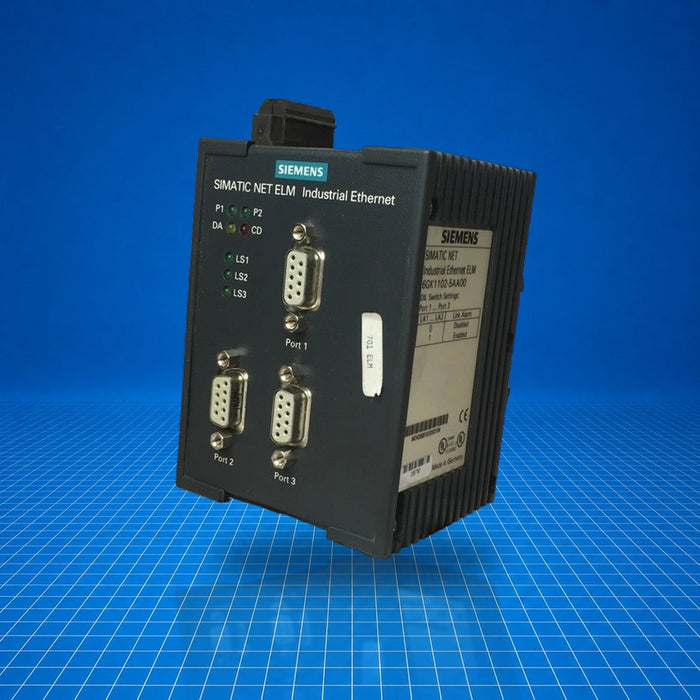

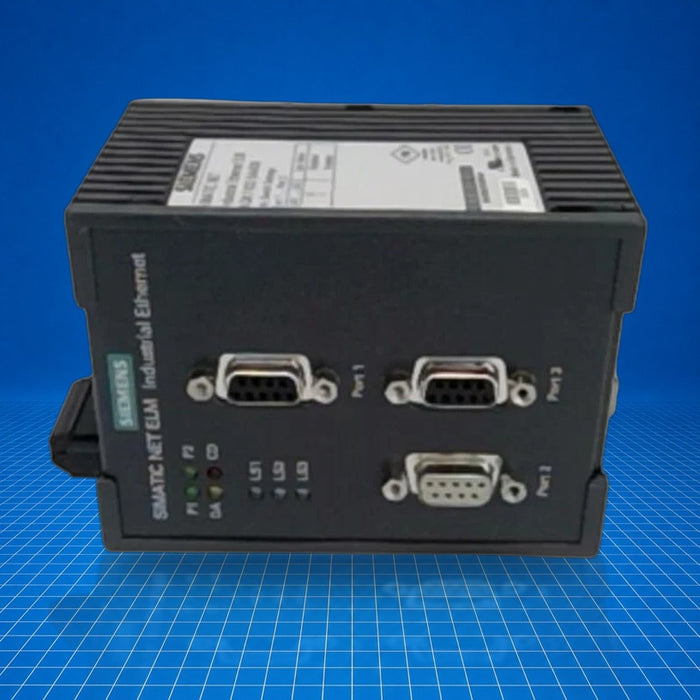

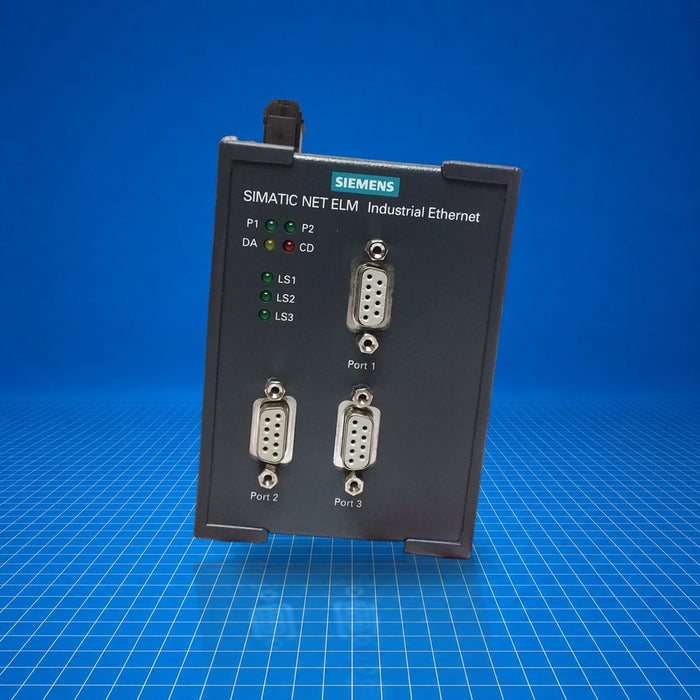

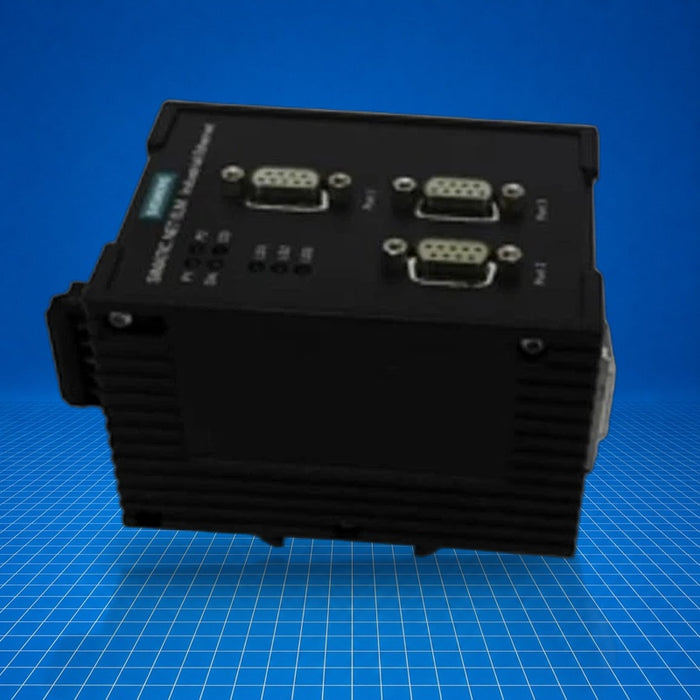

6GK1102-5AA00 Siemens
Original price
$402.56
-
Original price
$483.45
Original price
$402.56
$402.56
-
$483.45
Current price
$402.56
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6GK1102-5AA00 is the SIMATIC NET Industrial Ethernet ELM (Electrical Link Module) from the E-Link Module family. It provides industrial Ethernet link functionality by regenerating and retiming signals between industrial twisted-pair (ITP) copper and AUI interfaces. It is mounted on standard industrial rails and is used in industrial automation to extend or bridge network segments over copper and auxiliary Ethernet physical layers.
Best Suited For
- Extending industrial Ethernet over ITP copper cable segments
- Linking Ethernet segments via AUI interface in legacy network segments
- DIN-rail mounting in machine or panel network installations
- Network signal regeneration and preamble restoration tasks
Power supply
DC 18 to 32 V
Current consumption (typical at 24 V)
80 mA
Dimensions (W × H × D)
80 mm × 140 mm × 85 mm
Ambient operating temp
0 °C to + 60 °C
Protection class
IP 40
Technical Specifications
I/O & Electrical
Input voltage range
DC 18 to 32 V
Typical current consumption
80 mA at 24 VDC (without AUI-load)
Maximum current consumption
430 mA at 24 VDC (with AUI-load)
Communication & Power
Interfaces
3 ITP ports; 1 AUI port
Function
Signal regeneration, retiming, preamble regeneration to 64-bit SFD
Physical & Environmental
Dimensions
80 mm × 140 mm × 85 mm
Weight
850 g
Ambient operating temperature
0 °C to + 60 °C
Storage temperature
-40 °C to + 80 °C
Humidity
10 % to 90 % (non-condensing)
Protection class
IP 40
Certifications
CEEN 55022 Class BEN 50082-2
Conforms to ISO/IEC 8802-3; radio interference EN 55022 Class B; interference immunity EN 50082-2; CE-compliant per 89/336/EEC.
