6GK1161-3AA01 Siemens
Original price
$1,099.97
-
Original price
$2,196.65
Original price
$2,196.65
$1,099.97
-
$2,196.65
Current price
$2,196.65
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

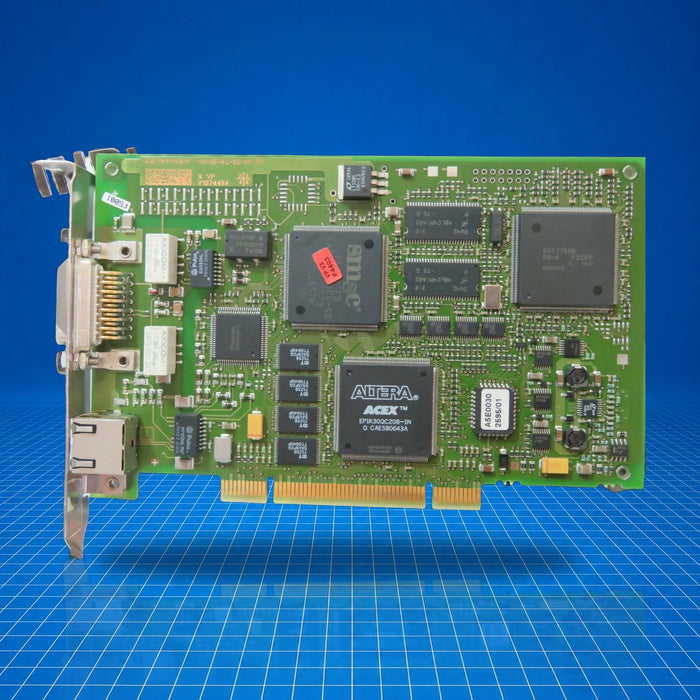

The Siemens 6GK1161-3AA01 is a CP 1613 A2 communications processor installed into a standard PCI slot (32-bit, 33/66 MHz Universal Key). It serves as a gateway between a PC or PG and Industrial Ethernet (10/100 Mbit/s) for SIMATIC NET environments, supporting S7, open SEND/RECEIVE, PROFINET CBA, and redundancy via HARDNET-IE S7-Redconnect. It is commonly deployed in PC-based control systems and engineering stations where reliable Ethernet interface is required.
Best Suited For
- PC or PG-based SIMATIC NET station installations
- Industrial Ethernet S7 communication via HARDNET-IE S7
- Applications requiring up to 120 concurrent S7/open connections
- Fault-tolerant link setups using S7-Redconnect redundancy
Interface type
PCI (32-bit, 33/66 MHz)
Ethernet speed
10/100 Mbit/s
Max open/S7 connections
120
Redundancy support
Yes (HARDNET-IE S7-Redconnect)
Technical Specifications
I/O & Electrical
Supply voltage (PCI bus)
5 V DC ±5 %
Supply voltage (PCI bus)
12 V DC ±5 %
Current consumption (5 V rail)
max 0.45 A
Current consumption (12 V rail)
max 0.5 A
Power dissipation
4 W
Communication & Power
Ethernet interface
RJ45 + 15-pole ITP
Communication protocols
S7, open SEND/RECEIVE, PROFINET CBA, SNMP v1, DCP
Physical & Environmental
Operating temperature
5 … 55 °C
Storage/transit temperature
-20 … +60 °C
Relative humidity (operational, non-condensing)
≤ 95 % at 25 °C
Protection rating
IP00
Dimensions (W × H × D)
21.6 mm × 107 mm × 167 mm
Weight
140 g
Certifications
EU DoCUK DoCCCCEACRCMChina RoHS
Declares EU and UK Declarations of Conformity, CCC, EAC, RCM, China RoHS, and a general Declaration of Conformity per Siemens listing.
