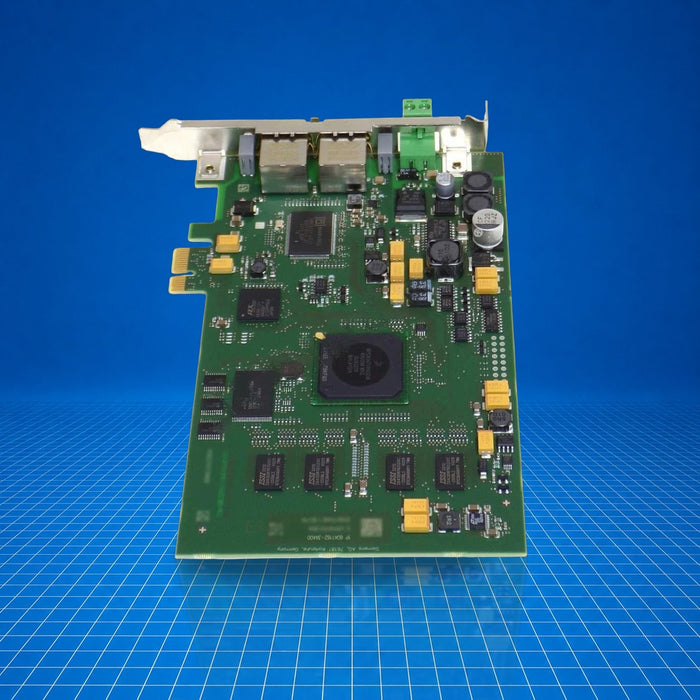

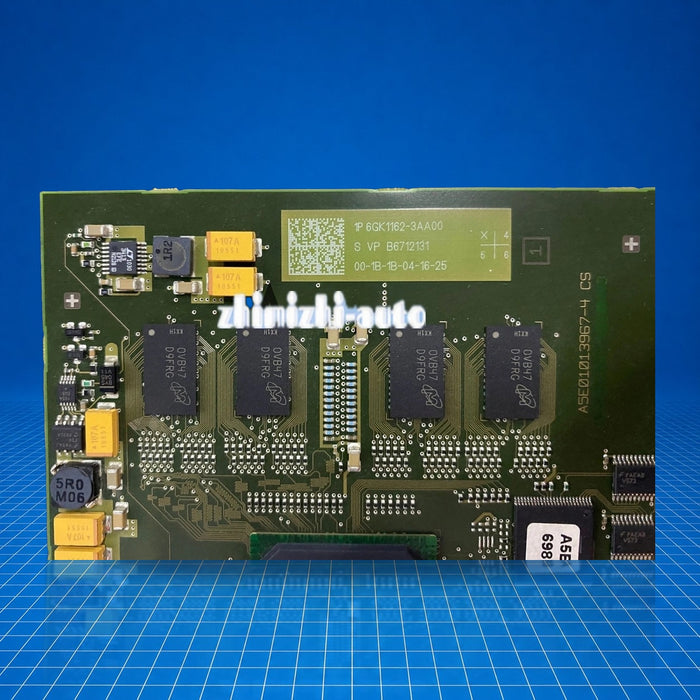

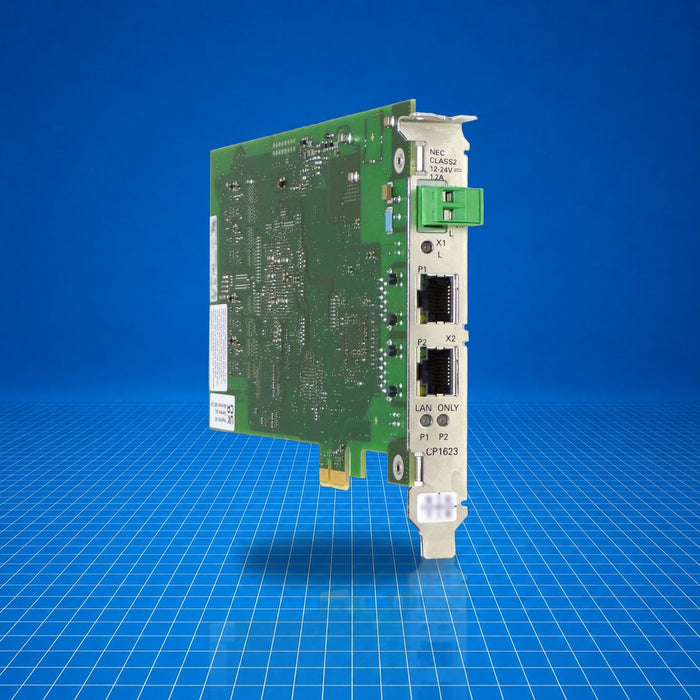

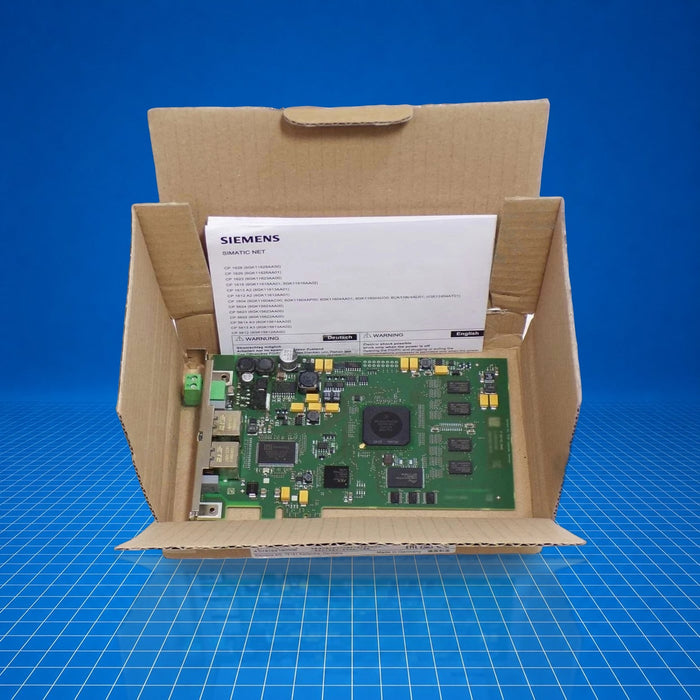

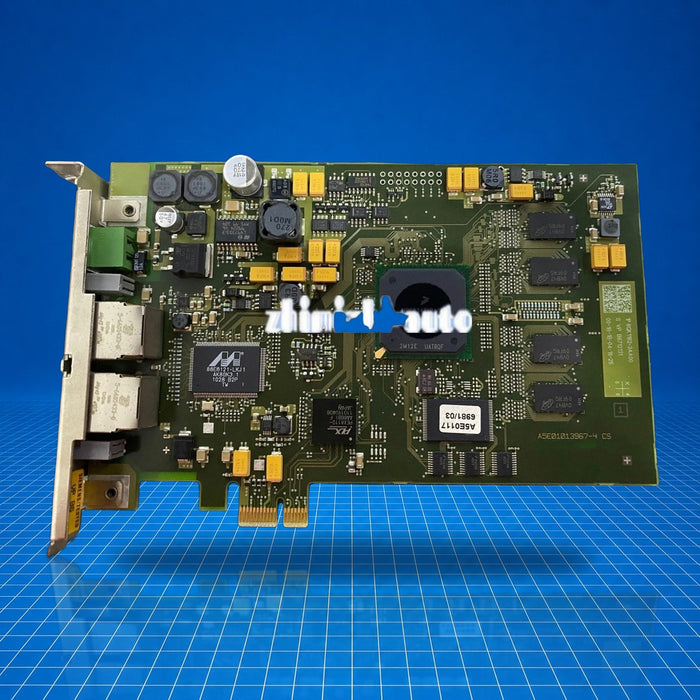

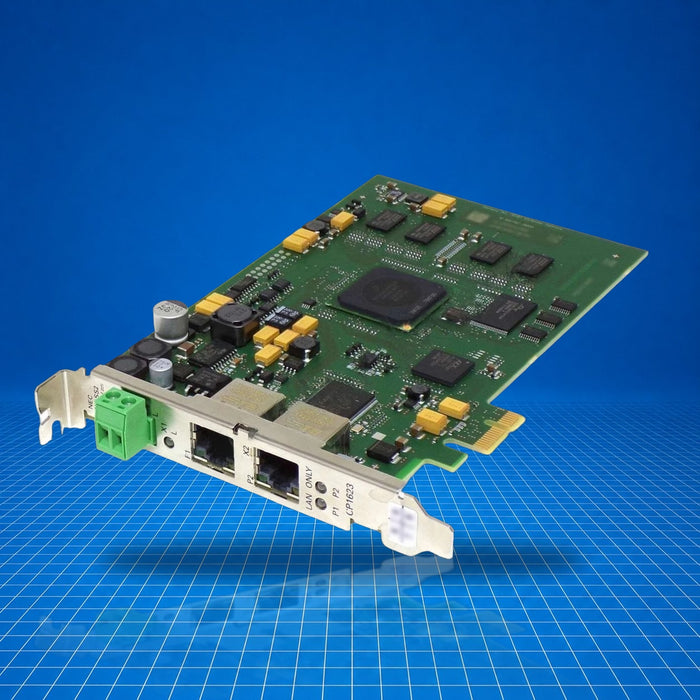

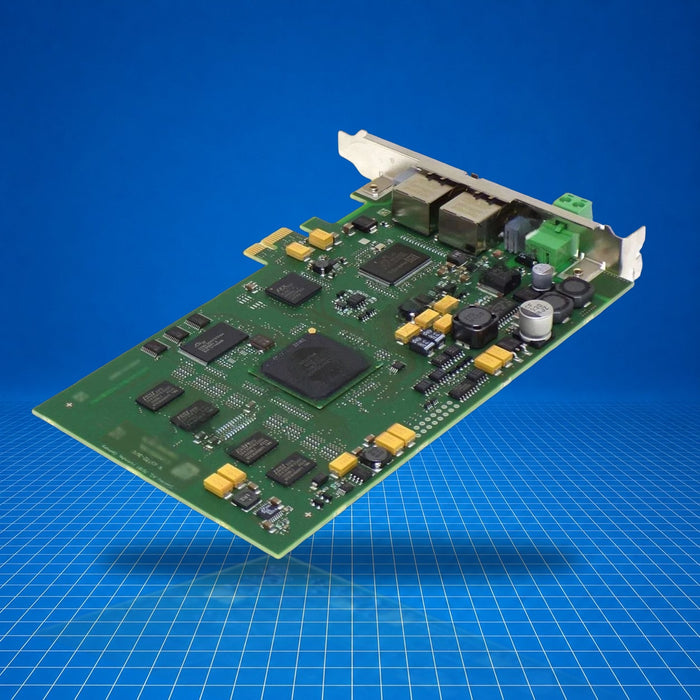

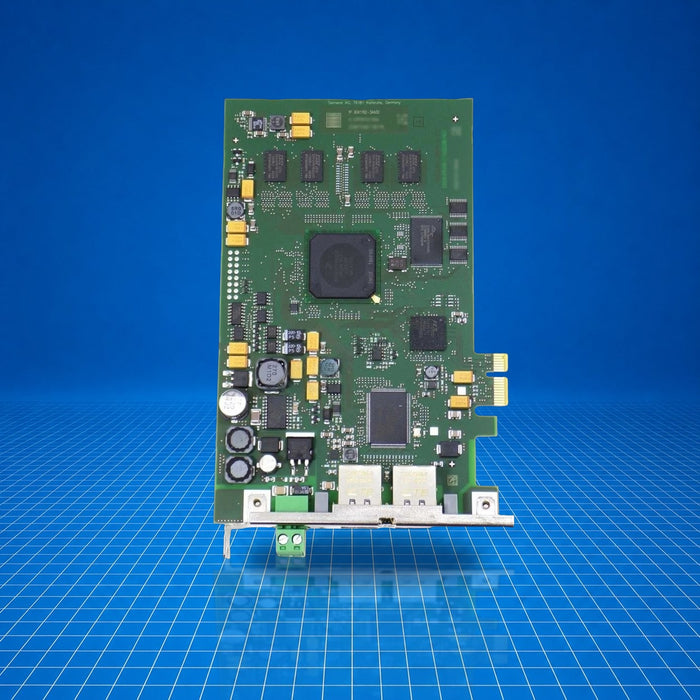

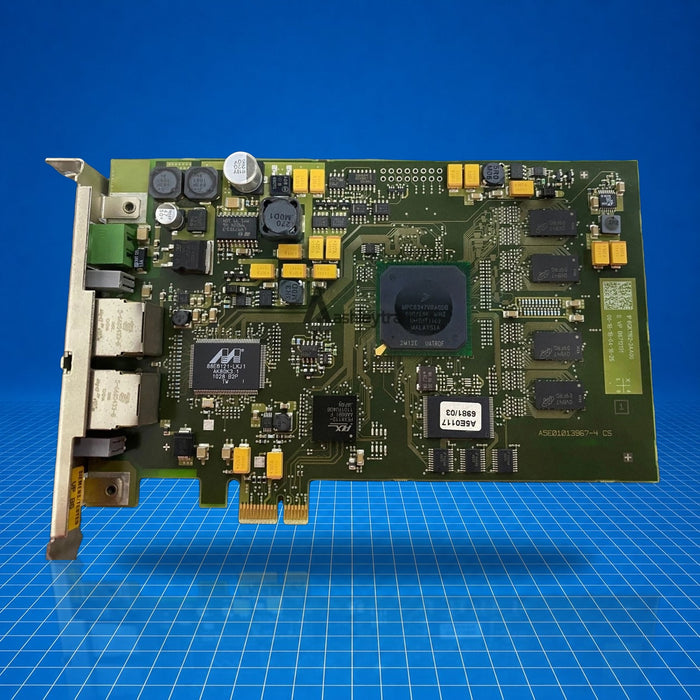

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6GK1162-3AA00 Siemens
Original price
$1,355.00
-
Original price
$1,499.88
Original price
$1,499.88
$1,355.00
-
$1,499.88
Current price
$1,499.88
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6GK1162-3AA00 is a Siemens SIMATIC NET Communications Processor CP 1623, realized as a PCI Express x1 network interface card that integrates a two-port Industrial Ethernet switch (RJ45). It enables 10/100/1000 Mbit/s Ethernet connectivity for PC-based control or HMI stations running HARDNET-IE S7 or S7-REDCONNECT software. Typical applications include redundant S7 communication, PROFINET system integration in control room PCs, and use in process control or fail-safe server configurations.
Best Suited For
- Communication between PC-based control stations and S7 controllers
- Redundant S7 connections using S7-REDCONNECT
- Integration of PROFINET devices via PC station
- Installation in industrial PCs with PCI Express slots
- Use in process control systems with SIMATIC NET
Interface
PCI Express x1 (half-length)
Ethernet ports
2 × RJ45 (10/100/1000 Mbit/s)
Power loss
7.6 W (max switch mode 7.2 W)
Operating temperature
5 … 55 °C
Technical Specifications
I/O & Electrical
Supply voltage (backplane)
3.3 V, 12 V
Supply voltage (external)
24 V (10.5 … 32 V)
Current (backplane max)
0.85 A @3.3 V; 0.4 A @12 V
Current (external max)
0.55 A @12 V; 0.3 A @24 V
Communication & Power
Transfer rate
10/100/1000 Mbit/s
Power consumption
7.6 W (max 7.2 W in switch mode)
Physical & Environmental
Ambient temperature (operation)
5 … 55 °C
Storage/transport temperature
-20 … +60 °C
Relative humidity (operation, ≤25 °C, no condensation)
95 %
Dimensions (W×H×D)
18 mm × 111 mm × 167 mm
Net weight
124 g
Protection class
IP00
Certifications
Declaration of ConformityCCCUK Declaration of ConformityEACChina RoHSRCM
