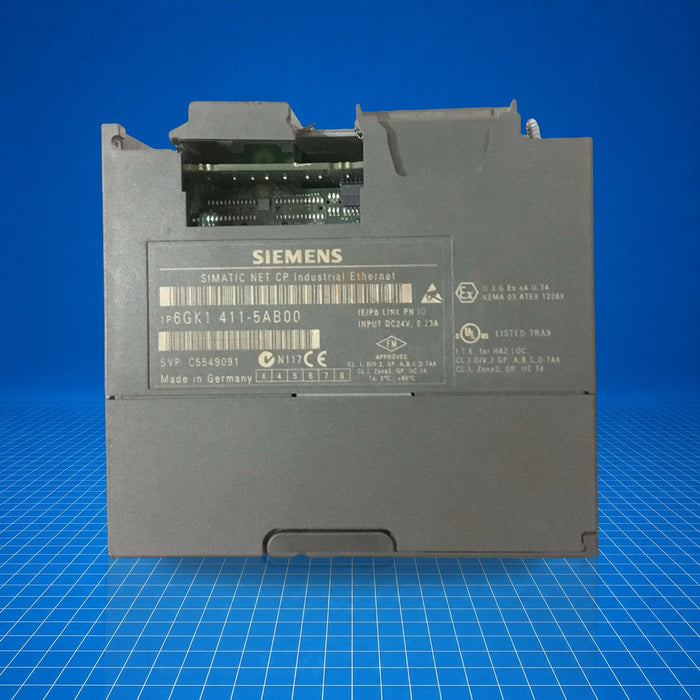

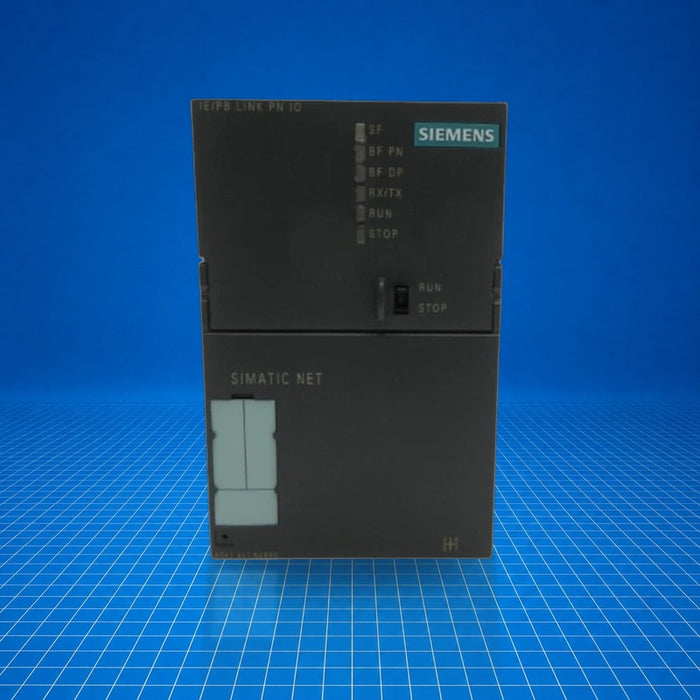

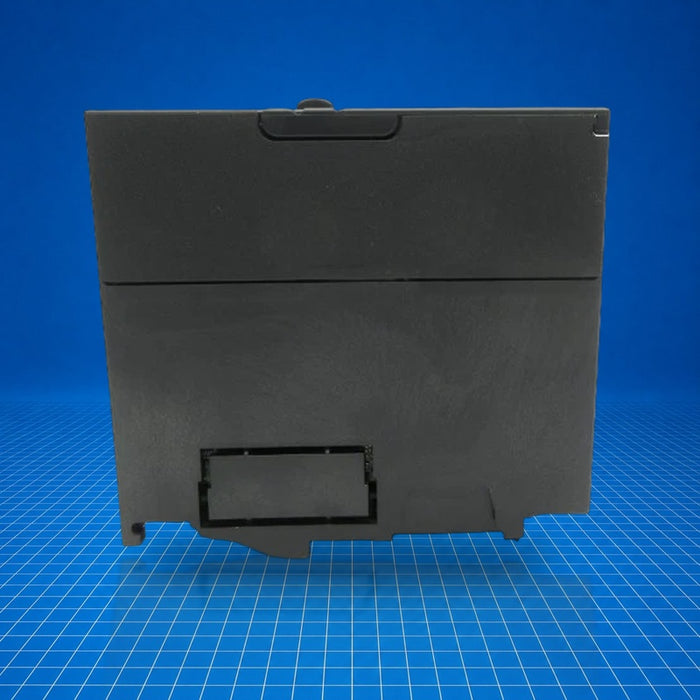

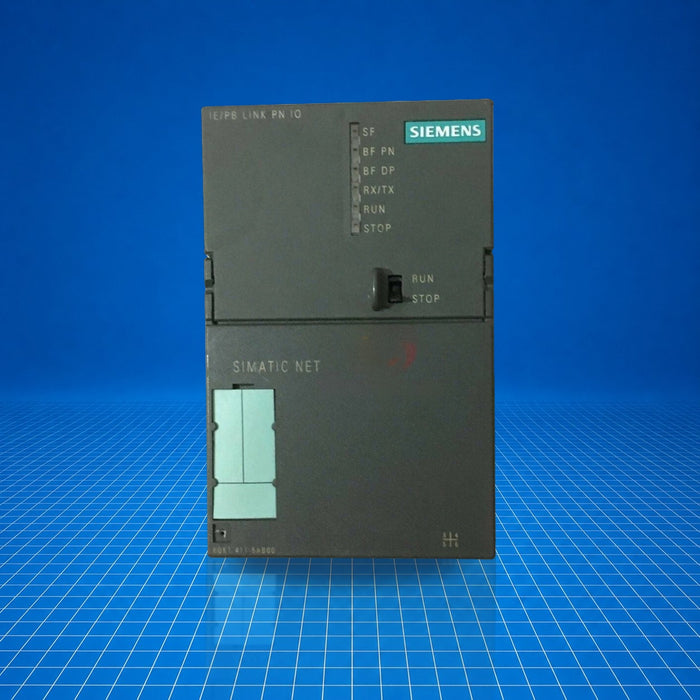

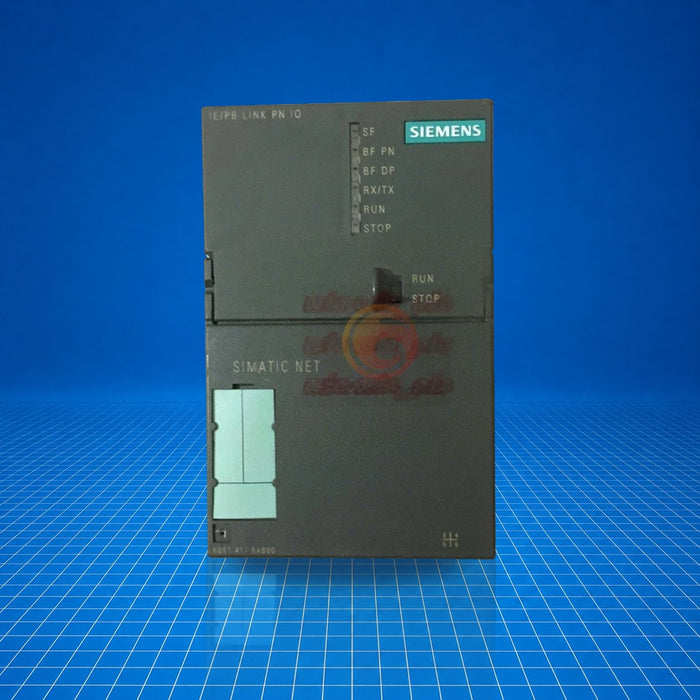

6GK1411-5AB00 Siemens
Original price
$588.09
-
Original price
$1,960.00
Original price
$588.09
$588.09
-
$1,960.00
Current price
$588.09
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6GK1411-5AB00 is a Siemens IE/PB-Link PN IO communication gateway module that provides protocol conversion between Industrial Ethernet (PROFINET IO) and PROFIBUS (DPV0/DPV1) networks. It enables S7 routing and data set routing and supports real-time operation, NTP and SIMATIC time synchronization, SNMP v1, LLDP, and MRP. It is used for integrating PROFIBUS devices into PROFINET systems, typically within SIMATIC S7-based automation environments, allowing up to 64 PROFIBUS slaves to connect via a single Industrial Ethernet interface. Siemens 6GK1411-5AB00 serves as a bridge between the two fieldbus standards.
Best Suited For
- Linking PROFIBUS DPV0/DPV1 networks to PROFINET IO systems
- Integrating up to 64 PROFIBUS slaves into a SIMATIC S7 network
- Implementing S7 routing and data set routing across fieldbusses
- Deployments requiring time synchronization (NTP, SIMATIC Time) across networks
- Applications requiring diagnostics via SNMP v1, LLDP, and MRP
Industrial Ethernet interface
10 … 100 Mbit/s (RJ-45)
PROFIBUS interface
9.6 kbit/s … 12 Mbit/s (Sub-D 9)
Max PROFIBUS slaves
64
Power consumption
typical 4.8 W / max 7.2 W
Operating temperature
0 … 60 °C
Technical Specifications
I/O & Electrical
Industrial Ethernet transfer rate
10 … 100 Mbit/s
PROFIBUS transfer rate
9.6 kbit/s … 12 Mbit/s
Max PROFIBUS slaves
64
Communication & Power
Ethernet interface
RJ-45 port
PROFIBUS interface
9-pin Sub-D socket (RS485)
Supply voltage
24 V DC
Current consumption
typical 0.2 A, max 0.6 A
Power loss
typical 4.8 W, max 7.2 W
Physical & Environmental
Dimensions (W × H × D)
80 mm × 125 mm × 120 mm
Weight
0.6 kg
Mounting
35 mm DIN-rail
Operating temperature
0 … 60 °C
Storage/transport temperature
-40 … +70 °C
Relative humidity
up to 95 % at 25 °C, non-condensing
Protection rating
IP20
Certifications
CEULCCCEACRCMATEXIECExFMABSRINAChina RoHS
