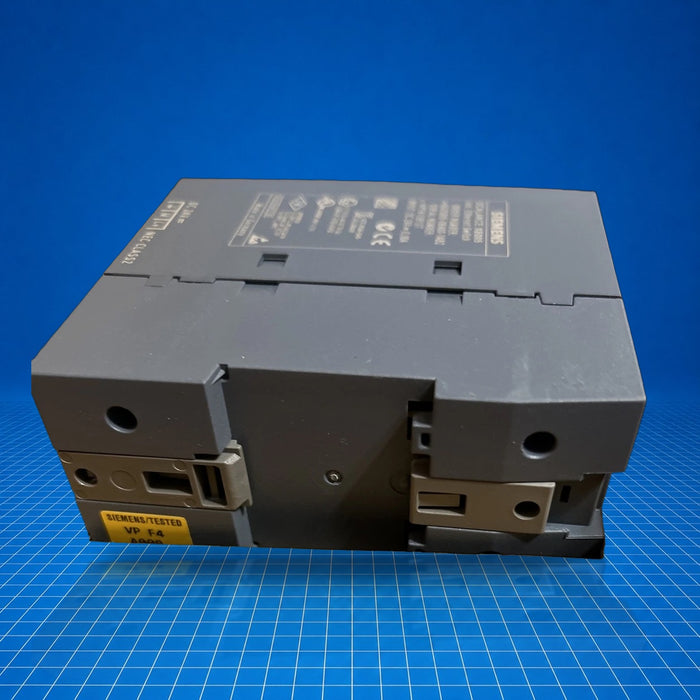

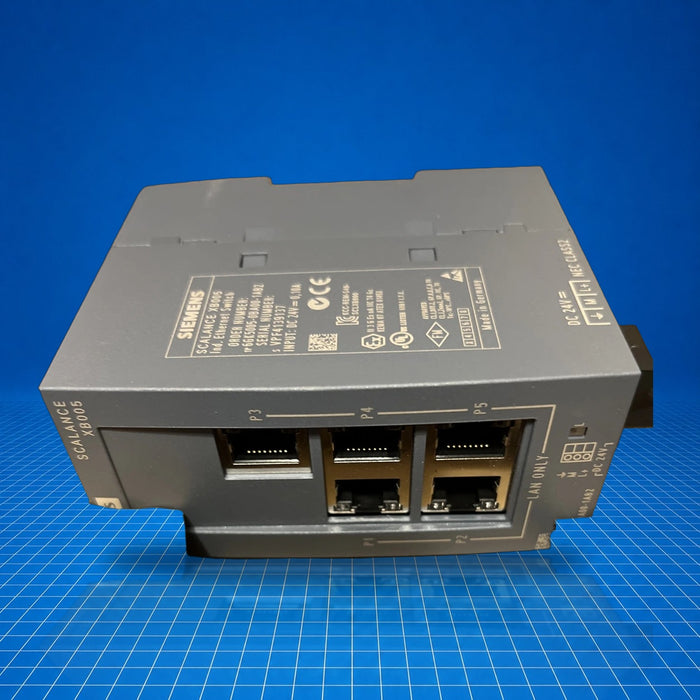

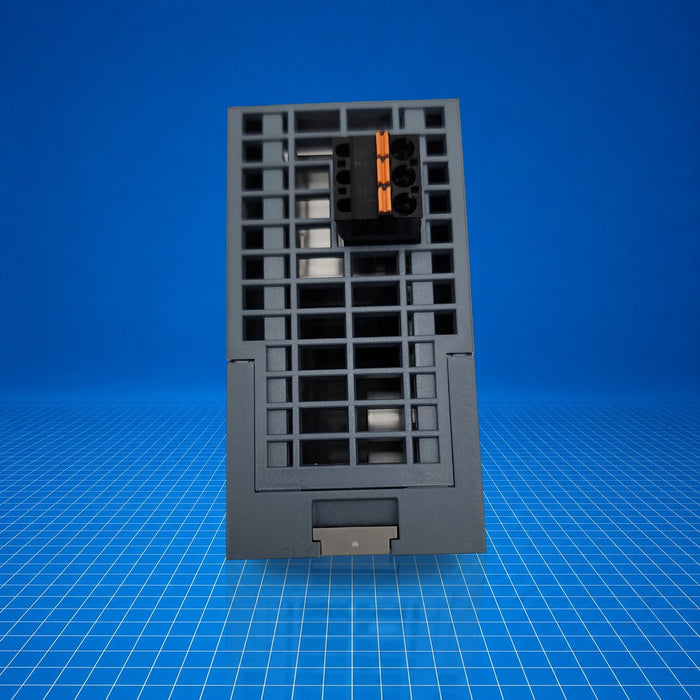

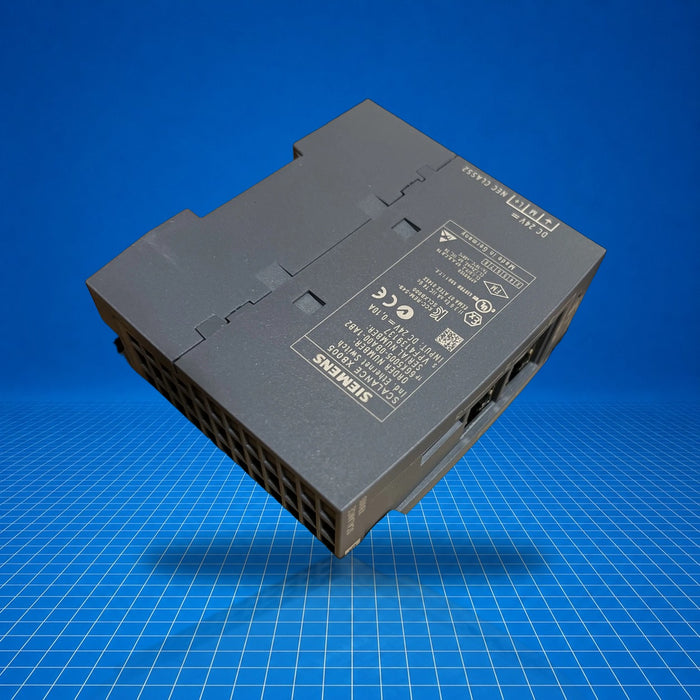

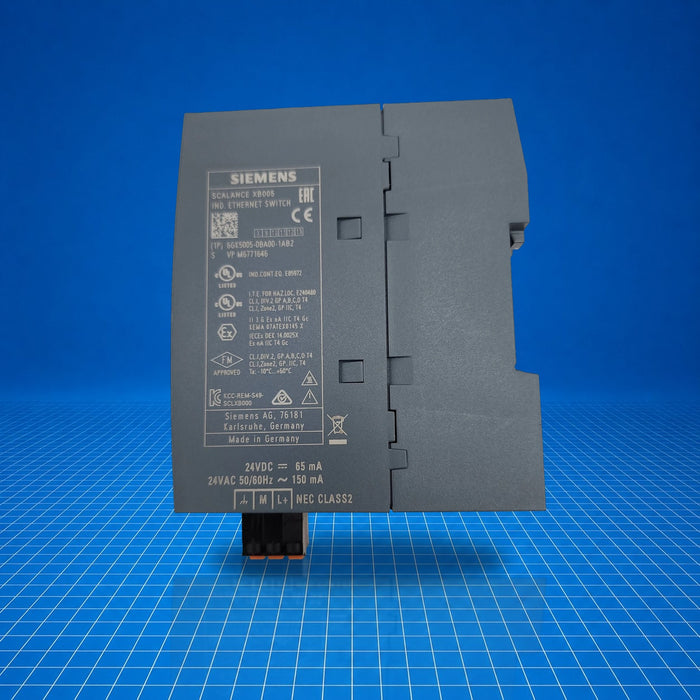

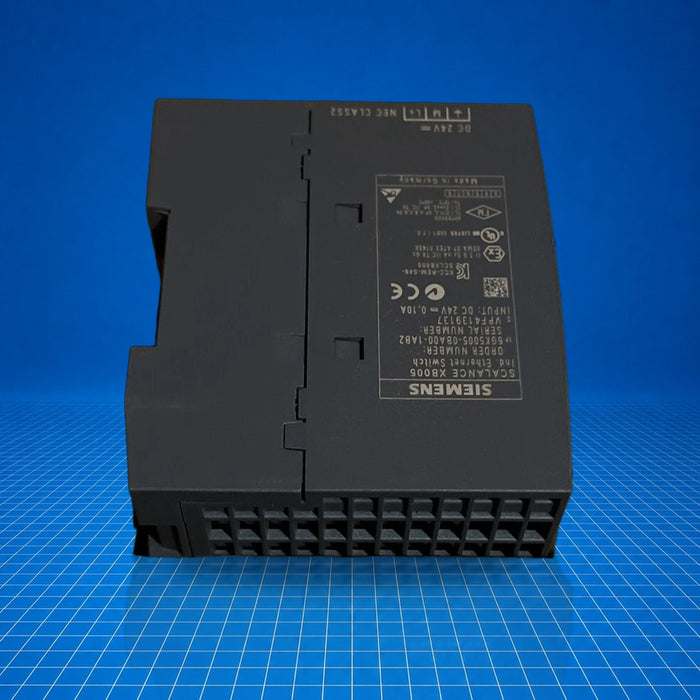

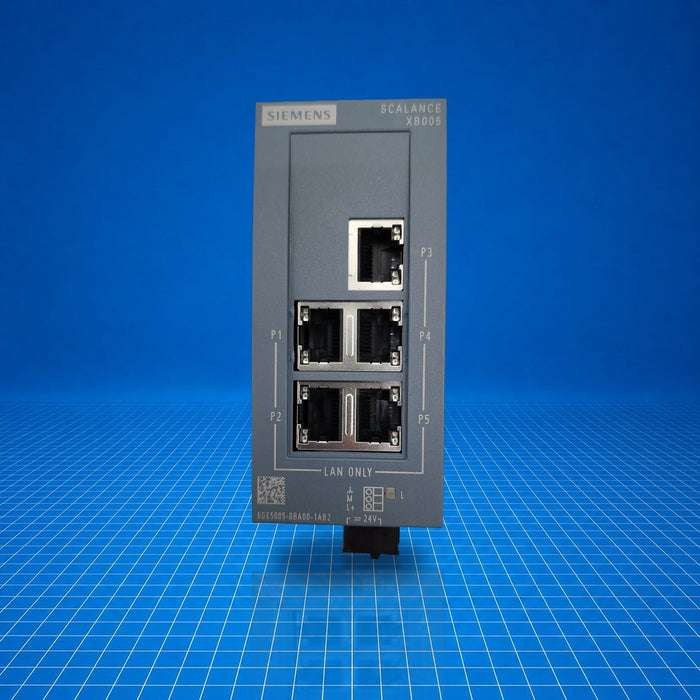

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6GK5005-0BA00-1AB2 Siemens
Original price
$315.00
-
Original price
$357.00
Original price
$357.00
$315.00
-
$357.00
Current price
$357.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6GK5005-0BA00-1AB2 is an unmanaged SCALANCE XB005 Industrial Ethernet switch. It provides five 10/100 Mbit/s RJ45 ports and supports star or line network topologies. Powered by 24 V AC/DC, it features LED diagnostics and appropriate terminal-block power input, making it suitable for simple network extension in machine-level automation and control cabinets.
Best Suited For
- Small star- or line-topology Ethernet networks
- Machine-level network segmentation
- Control cabinet installations
- Simple unmanaged network expansion
Ports
5 × 10/100 Mbit/s RJ45
Power supply
24 V AC/DC
Protection rating
IP20
Operating temp.
-10 … +60 °C
Power dissipation
1.68 W
Technical Specifications
I/O & Electrical
Ports (Ethernet)
5 × 10/100 Mbit/s RJ45
Power input
24 V AC/DC (19.2…28.8 V)
Max current
0.07 A
Power dissipation
1.68 W
Fuse at input
0.6 A / 60 V
Communication & Power
Communication standard
10, 100 Mbit/s unmanaged switch
Physical & Environmental
Operating temperature
-10 … +60 °C
Storage/transport temperature
-40 … +80 °C
Relative humidity (operating)
≤ 95 % at 25 °C, no condensation
Protection class
IP20
Dimensions (W × H × D)
45 mm × 100 mm × 87 mm
Weight
0.165 kg
Mounting
35 mm DIN-rail and wall mounting
Certifications
CEcULusKCRCMATEXIECExUKEXUL hazloc
Conforms to CE, cULus, KC, RCM; Safety per UL 60950-1, CSA C22.2 No. 60950-1; EMC per EN 61000-6-2 and EN 61000-6-4; Hazardous-location approvals: ATEX, IECEx, UKEX, UL hazloc; Environmental: RoHS, ANSI/ISA-71.04 G3, EPD with life-cycle CO2 data.
