6GK5204-0BA00-2BA3 Siemens
Original price
$525.00
-
Original price
$1,859.63
Original price
$1,859.63
$525.00
-
$1,859.63
Current price
$1,859.63
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

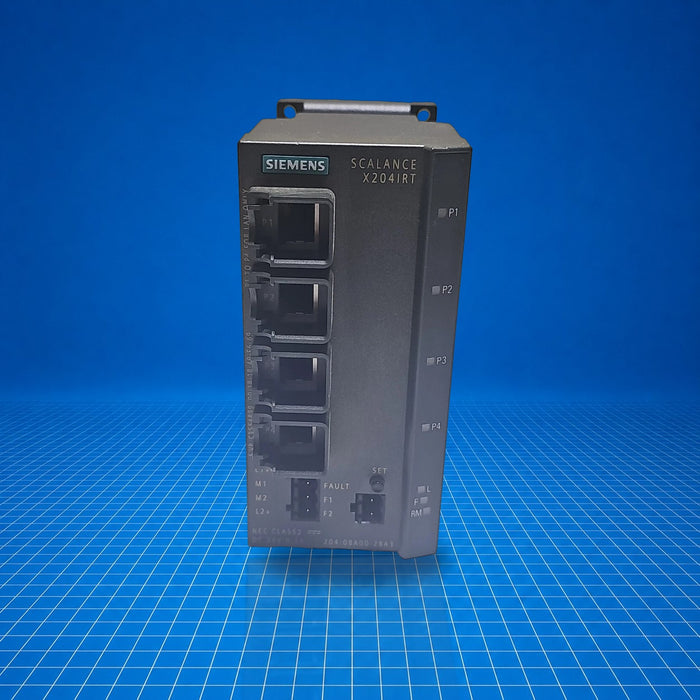

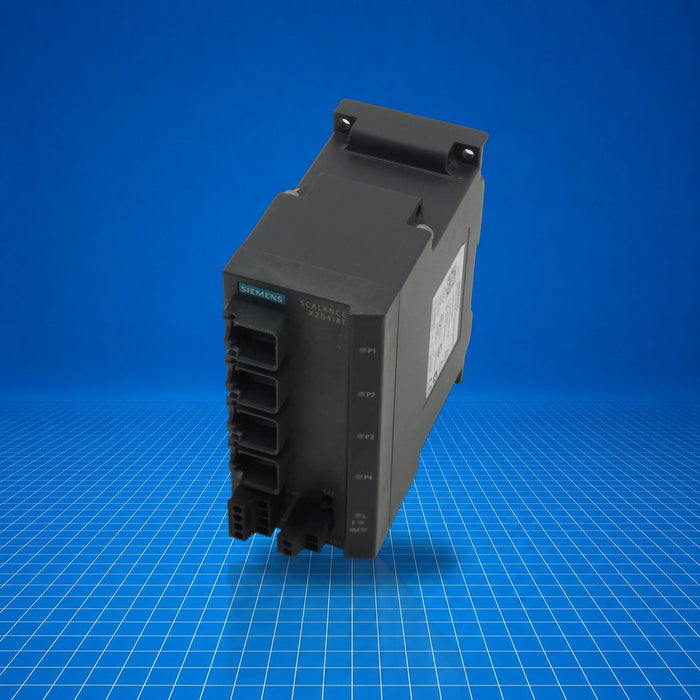

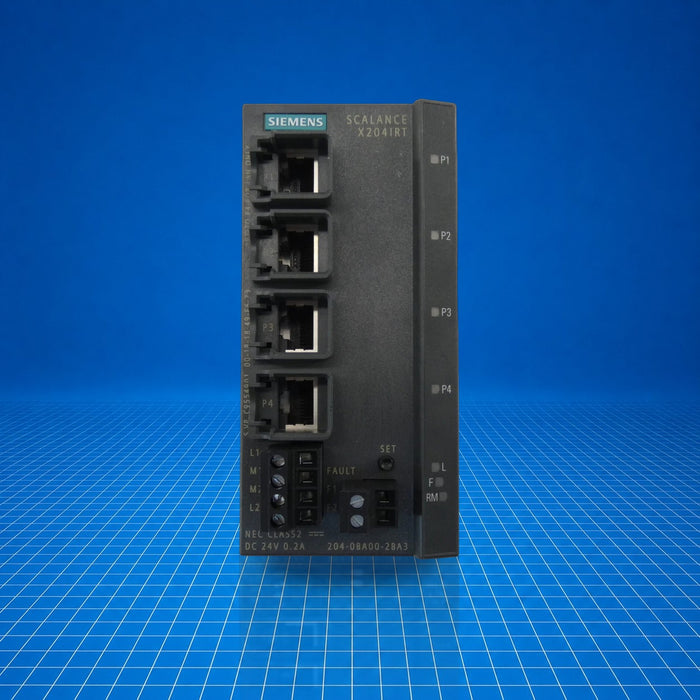

Siemens 6GK5204-0BA00-2BA3 is a SCALANCE X204IRT managed industrial Ethernet switch serving as a PROFINET IO device. It provides four 10/100 Mbps RJ45 ports, an error-signaling contact with a set/reset pushbutton, and supports redundant power-supply inputs. It integrates network management and redundancy-manager functions. Designed for IEC-compliant automation networks, it is often deployed for on-machine networking, redundant control networks, and spare-part maintenance scenarios.
Best Suited For
- Use as managed PROFINET IO switch
- Redundant power-supply systems
- Compact on-machine Ethernet switching
- Replacement spare for SCALANCE X204IRT assemblies
Ports (Ethernet)
4×10/100 Mbps RJ45
PROFINET IO device
Yes
Redundant supply
Yes
Error-signal contact
1 with set/reset pushbutton
Technical Specifications
I/O & Electrical
Error-signal contact voltage (DC)
24 V
Error-signal contact current (max)
0.1 A
Communication & Power
Supply voltage
24 V DC
Power consumption (max)
200 mA
Redundant power-supply input
Yes

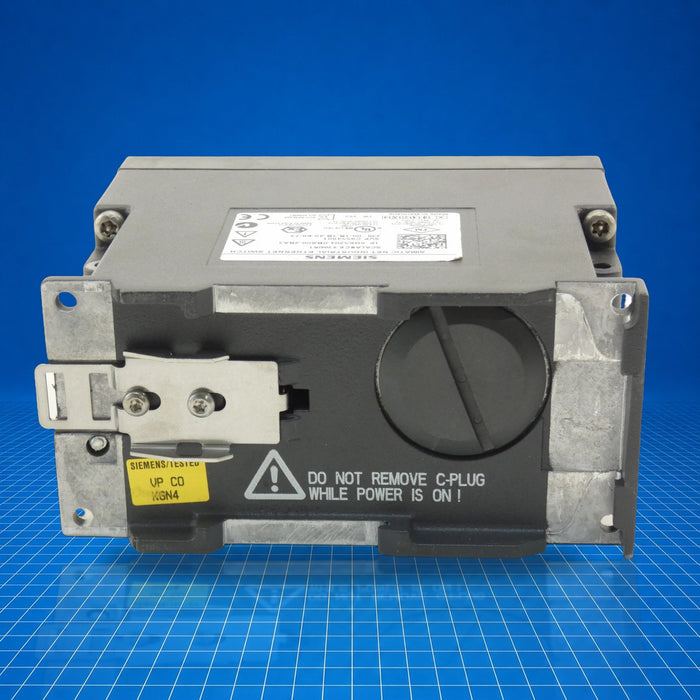

C-PLUG removable storage
Optional
Physical & Environmental
Ambient temperature (operating)
-40 ... +70 °C
Certifications
ATEXIECExULCCCEACRCMABSBVLRSNKPRSRINA
Marine classification by ABS, BV, LRS, NK, PRS, RINA; ATEX, IECEx, UL, EU/UK declarations, CCC, EAC, RCM, FM (as per Siemens listings).
