6GK5208-0BA00-2AB2 Siemens
Original price
$449.97
-
Original price
$1,099.97
Original price
$449.97
$449.97
-
$1,099.97
Current price
$449.97
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

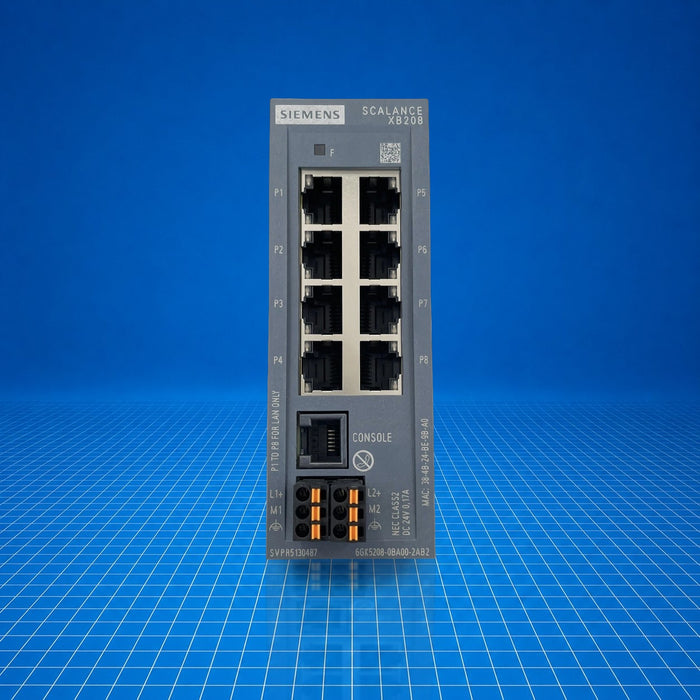

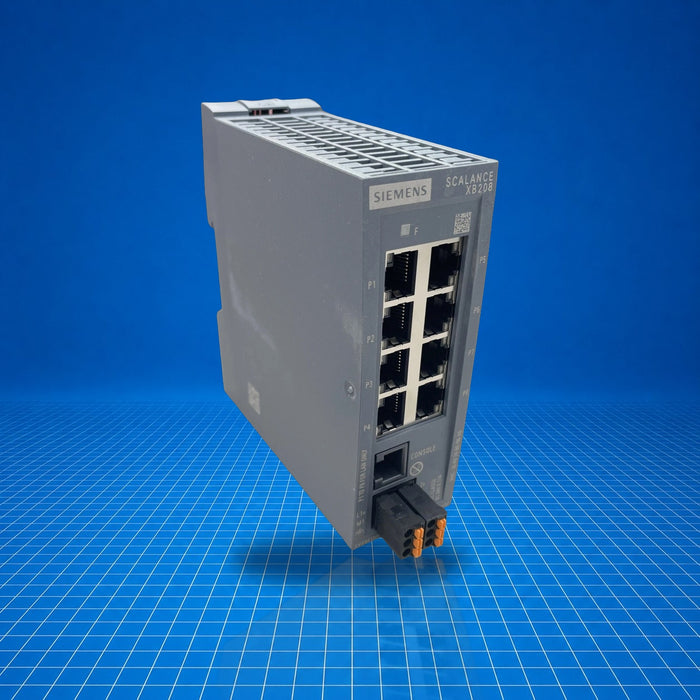

The Siemens 6GK5208-0BA00-2AB2 is a managed Layer-2 Industrial Ethernet switch in the SCALANCE XB-200 series. Designed for DIN-rail mounting, it provides eight 10/100 Mbit/s RJ45 ports and one RJ11 console port. It supports redundant power inputs, includes diagnostic LEDs, and is IEC 62443-4-2 certified for industrial network security. Typical roles include segmenting Ethernet traffic in PROFINET applications within manufacturing cells, machine-level control cabinets, or plant network backbones.
Best Suited For
- PROFINET network segmentation
- Control cabinet DIN-rail installations
- Industrial security-hardened networks
- Redundant power environments
Ethernet ports
8 × 10/100 Mbit/s RJ45
Console port
1 × RJ11
Redundant power support
Yes
Operating temperature
0 … 60 °C
Technical Specifications
I/O & Electrical
Input voltage (rated)
24 V DC
Input voltage (range)
19.2 … 28.8 V DC
Max current consumption
0.17 A
Communication & Power
Ethernet transfer rate
10, 100 Mbit/s
Console interface
RJ11
Redundant power input
Yes
Physical & Environmental
Mounting
DIN-rail
Dimensions (W × H × D)
40 × 117 × 109 mm
Net weight
0.25 kg
Operating temperature
0 … 60 °C
Storage/transport temperature
-40 … +70 °C
Relative humidity (operating, ≤25 °C)
95 % non-condensing
Protection class
IP20
Certifications
IEC 62443-4-2
IEC 62443-4-2 industrial security certification.
