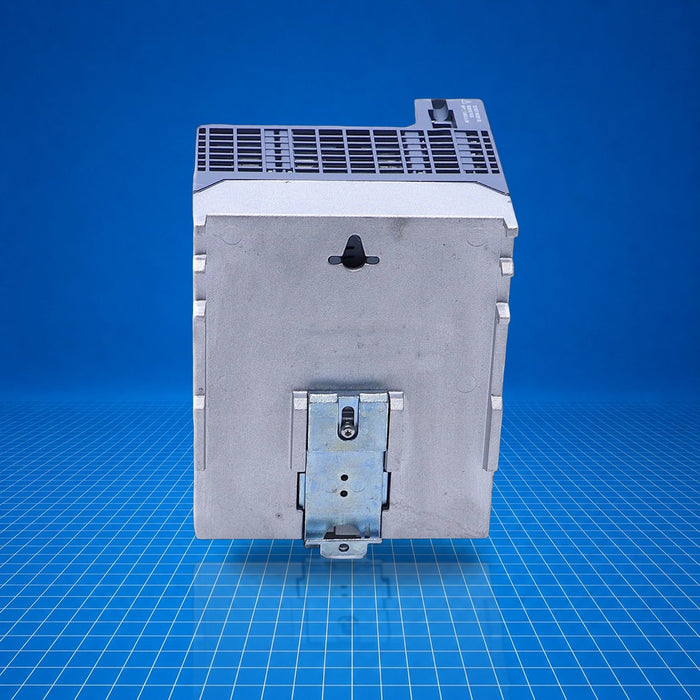

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

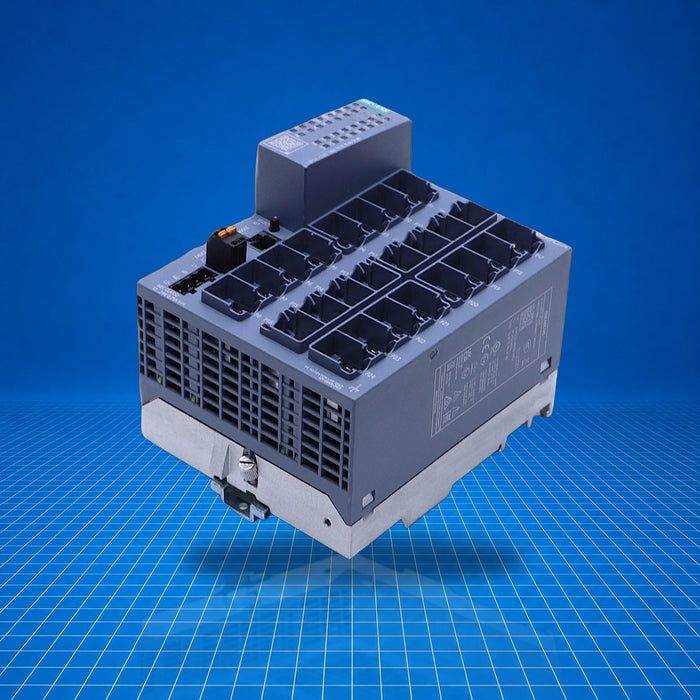

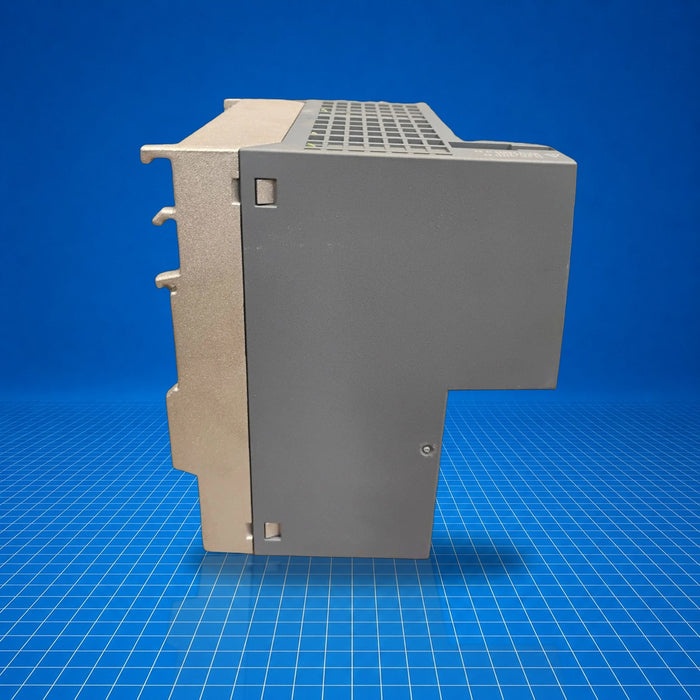

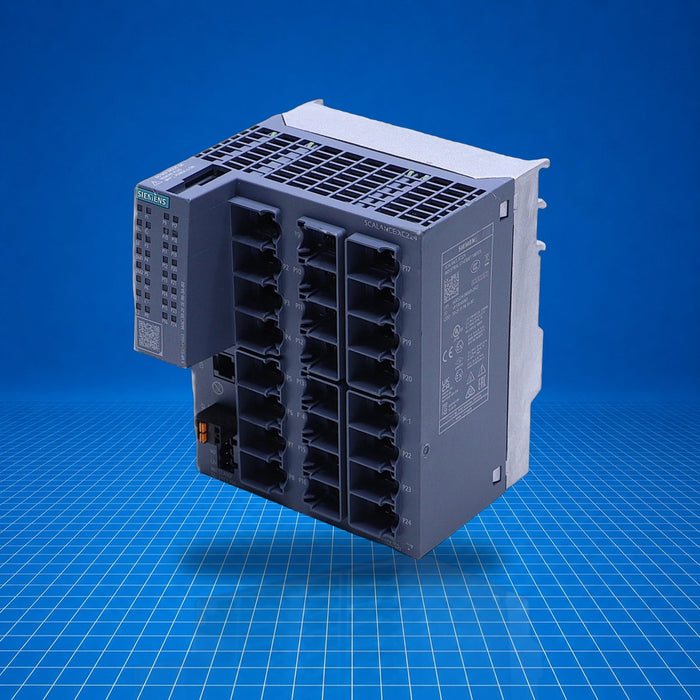

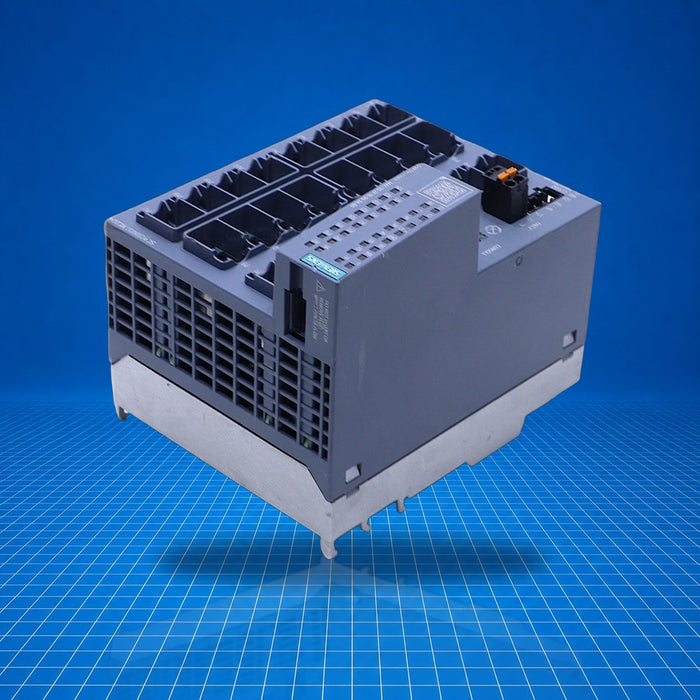

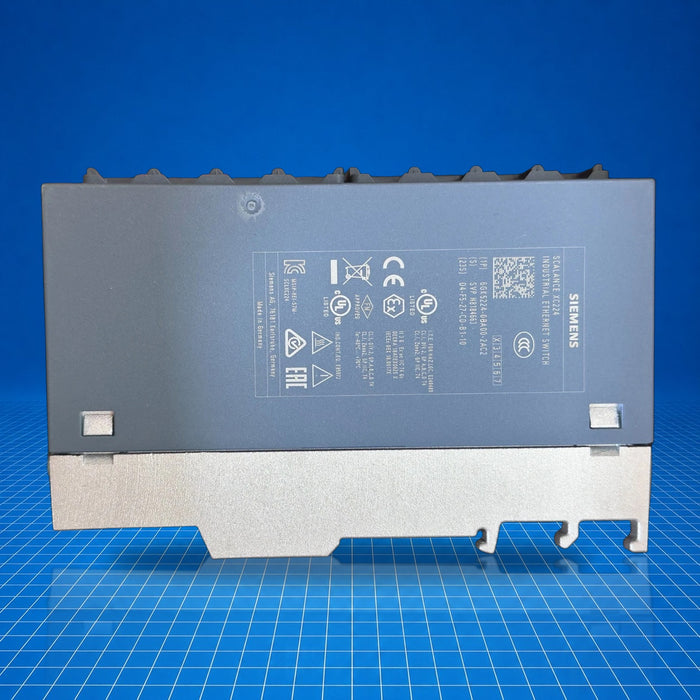

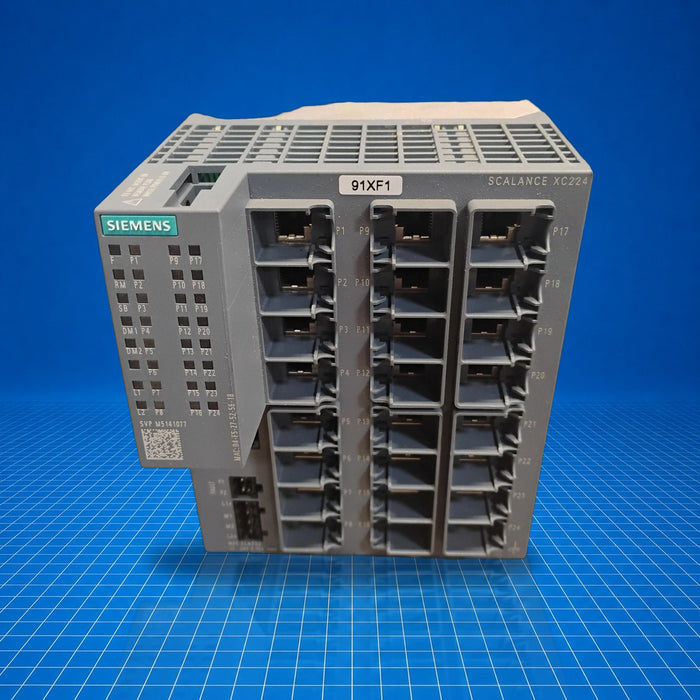

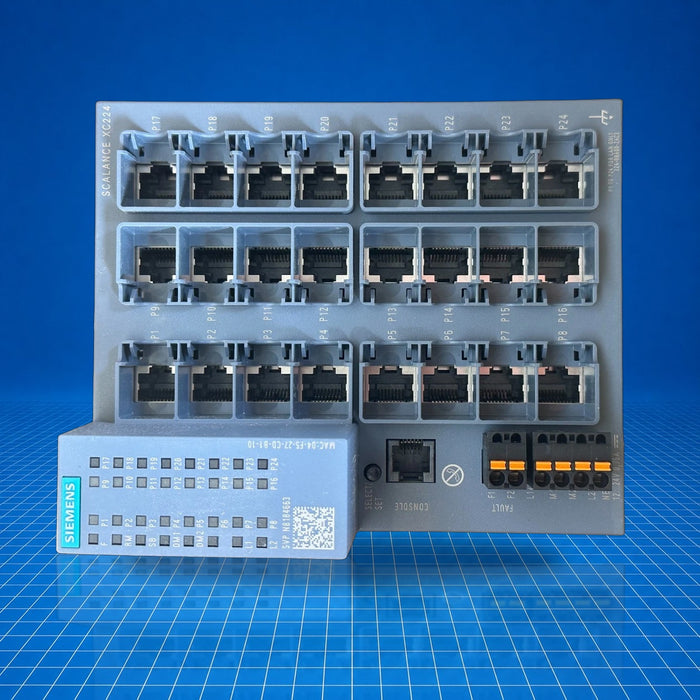

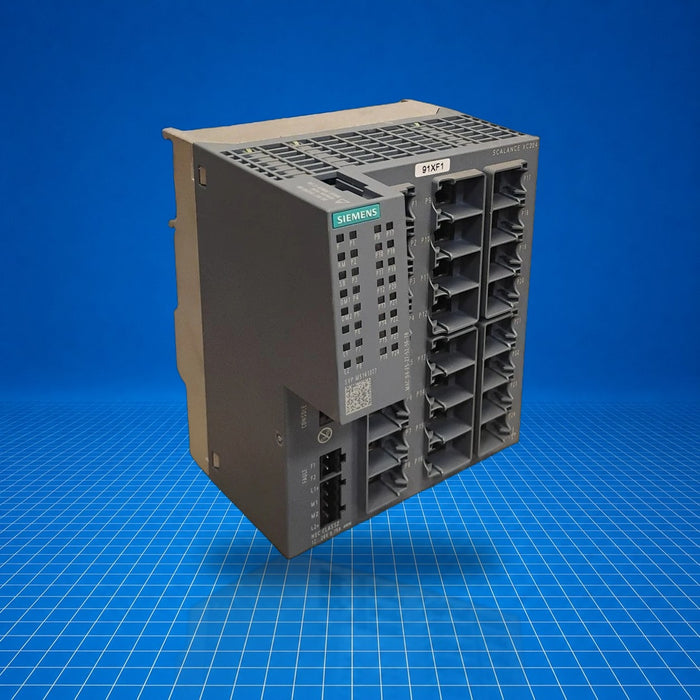

6GK5224-0BA00-2AC2 Siemens
Original price
$1,237.50
-
Original price
$3,080.00
Original price
$1,237.50
$1,237.50
-
$3,080.00
Current price
$1,237.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens part number 6GK5224-0BA00-2AC2 is a SCALANCE XC224 managed Layer 2 Industrial Ethernet switch. It provides 24x 10/100 Mbit/s RJ45 ports and a console port for direct device access. Designed for integration in industrial networks, it supports redundant power supply and advanced features like RSTP and VLAN. It operates over -40 °C to +70 °C and mounts on DIN rail, S7-1500 rail, or wall. It is suitable for Ethernet/IP, PROFINET IO device integration.
Best Suited For
- Industrial Ethernet backbone switching
- PROFINET IO device networks
- Redundant power-supply installations
- DIN-rail or S7-1500 rail mounting environments
Ports (RJ45 10/100 Mbit/s)
24
Console port
1
Supply voltage range
9.6-31.2 V DC
Operating temperature
-40 °C to +70 °C
Power consumption
9 W
Technical Specifications
I/O & Electrical
Number of RJ45 ports
24
Console port type
RJ11
Signaling contact voltage (DC)
24 V
Signaling contact current (max)
0.1 A
Communication & Power
Transfer rate
10, 100 Mbit/s
Supply voltage range
9.6-31.2 V DC
Rated supply voltage
24 V DC
Power consumption
9 W
Current consumption (max)
0.75 A
Redundant power supply support
Yes
Fuse in power input
Yes (2.5 A/125 V)
Physical & Environmental
Operating temperature
-40 °C to +70 °C
Mounting
DIN rail, S7-1500 rail, wall
Dimensions (WxHxD)
120 × 147 × 125 mm
Net weight
0.84 kg
Protection class
IP20
Certifications
IEC 62443-4-2
IEC 62443-4-2 certified.
