Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

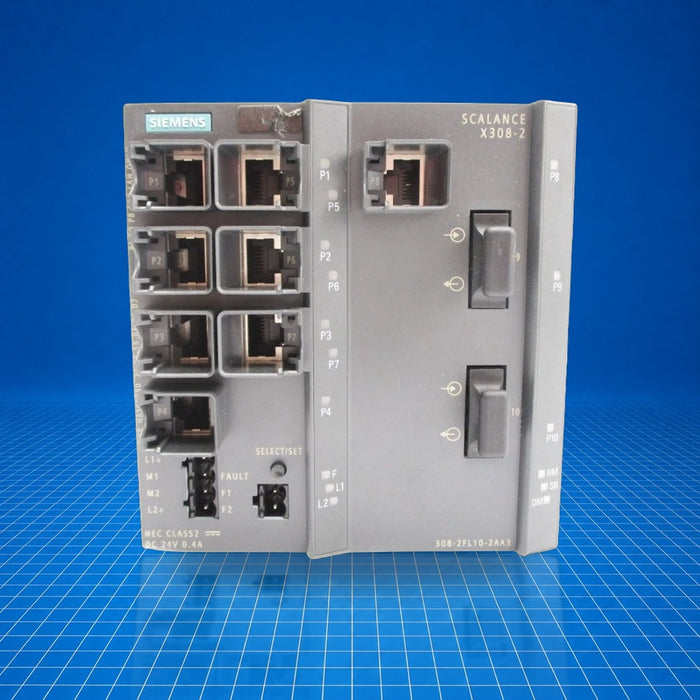

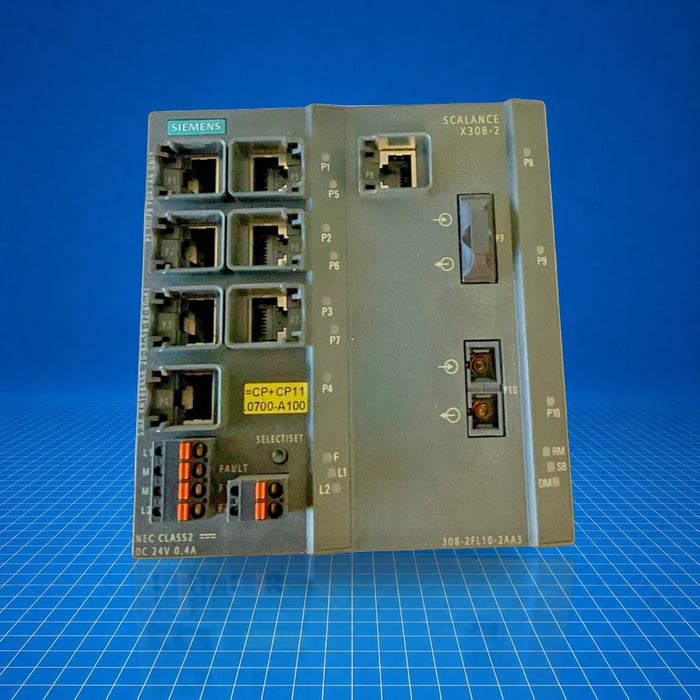

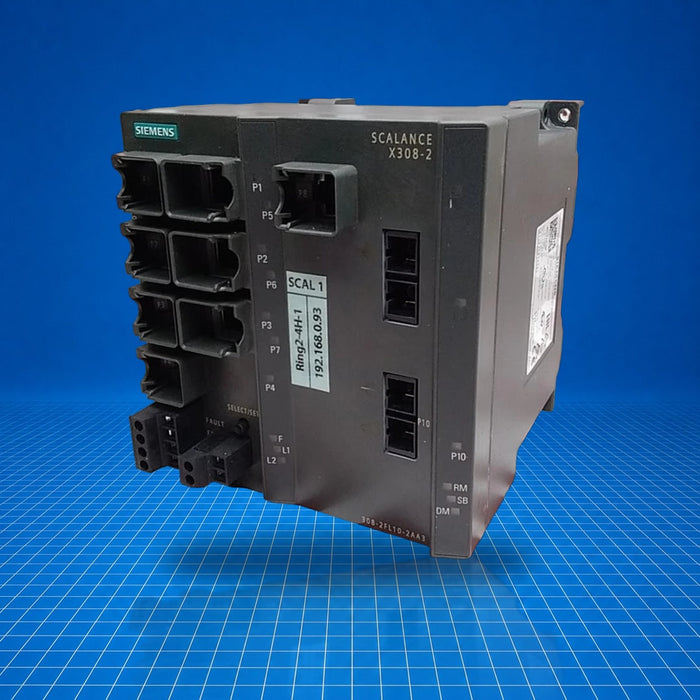

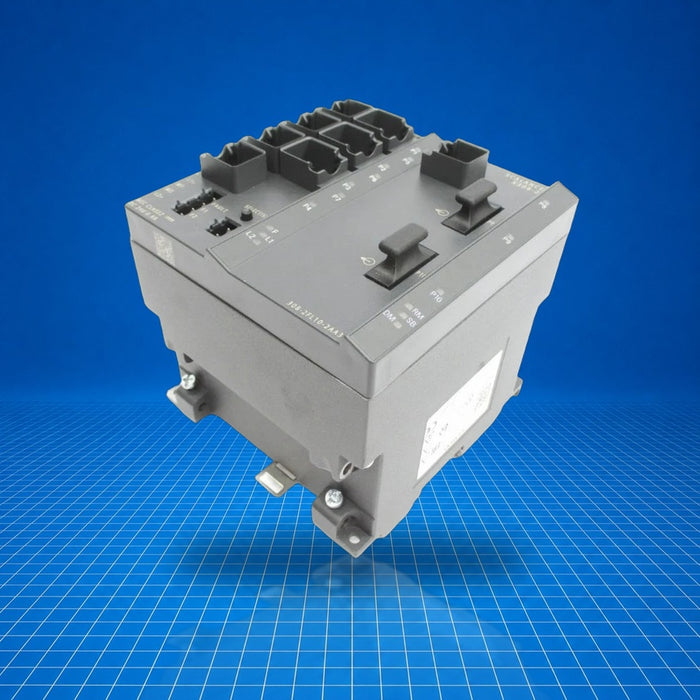

The Siemens 6GK5308-2FL10-2AA3 is a SCALANCE X308-2 managed industrial Ethernet switch. It functions as a PROFINET IO device offering a combination of multimode-fiber and copper RJ45 ports for structured network segregation, diagnostics, and redundancy capabilities. It serves within industrial control systems to connect multiple devices via Ethernet and PROFINET in factory automation, transportation, or infrastructure networks. 6GK5308-2FL10-2AA3 typically supports ring topologies and network segmentation while providing LED diagnostics and error signaling integration.
Best Suited For
- PROFINET-based distributed I/O networks
- Redundant ring network architectures (RSTP/VLAN/IGMP)
- Installation in machine-level communication cabinets
- Spare-part replacement for decommissioned SCALANCE X300 family installations
10/100 Mbit/s RJ45 ports
7
10/100/1000 Mbit/s RJ45 ports
1
1000 Mbit/s multimode SC ports
2
Supply voltage
24 V DC
Power loss
9.6 W
Technical Specifications
I/O & Electrical
Signaling contact voltage
24 V DC
Signaling contact current (max)
0.1 A
Communication & Power
RJ45 ports (10/100 Mbit/s)
7
RJ45 port (10/100/1000 Mbit/s)
1
SC ports (1000 Mbit/s MM)
2
Supported data rates
10, 100, 1000 Mbit/s
Supply voltage
24 V DC
Voltage supply range
18 ... 32 V DC
Max supply current
0.4 A
Power loss (rated)
9.6 W
Redundant power input
Yes
Physical & Environmental
C-PLUG removable storage
Yes
MTBF @ 40 °C
39 years
Net weight
1.470 kg
Packaging dimensions
120 × 123 × 125 mm
