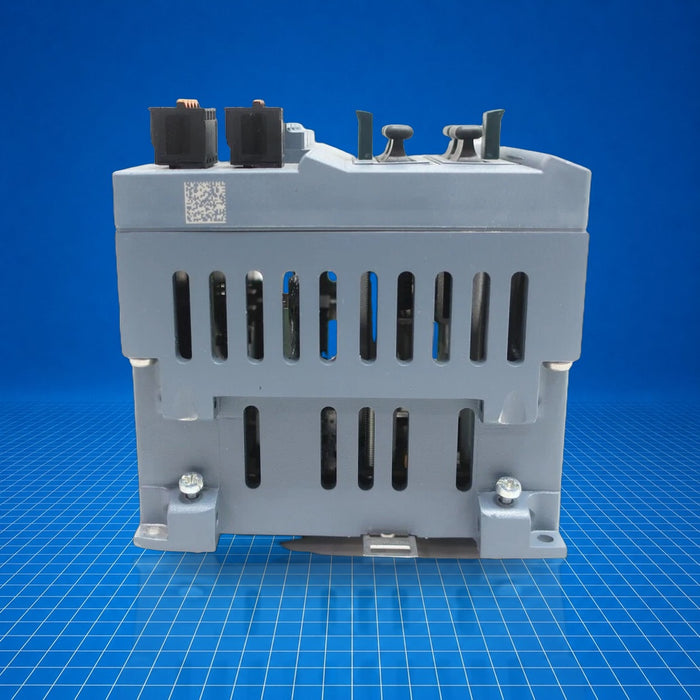

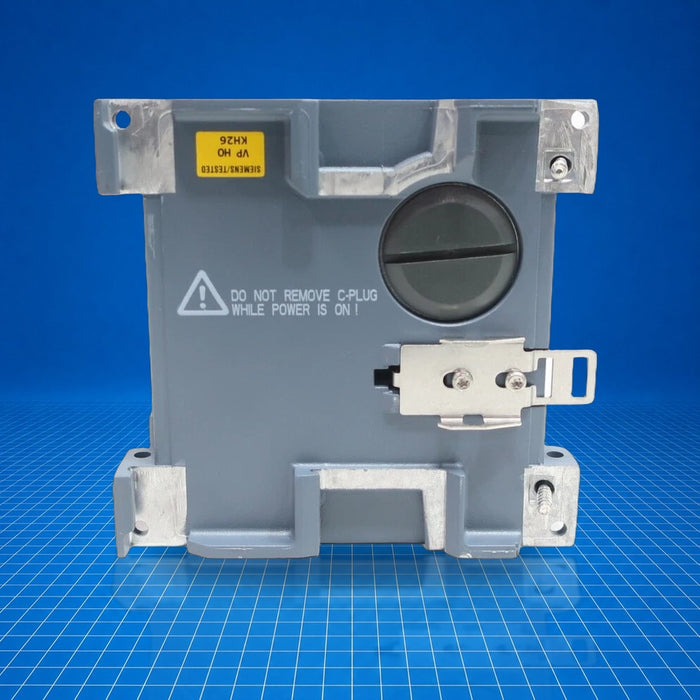

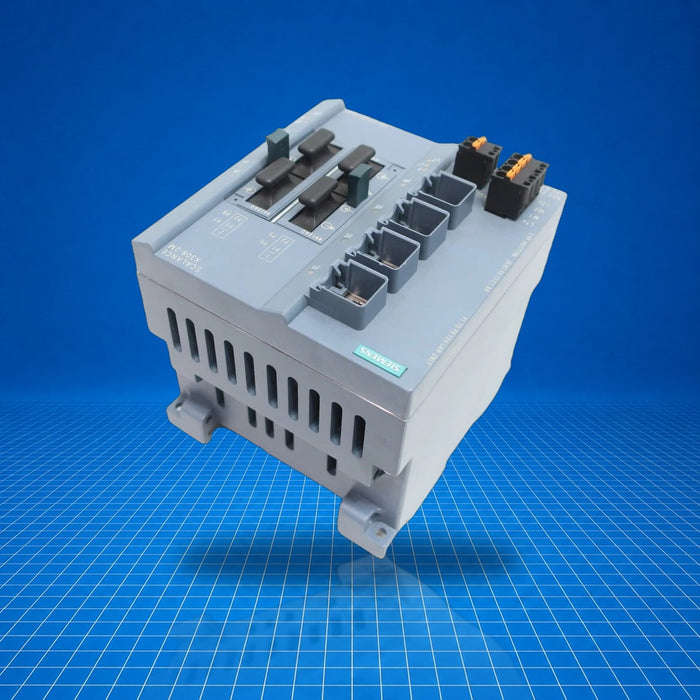

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6GK5308-2GG00-2AA2 Siemens
Original price
$2,817.45
-
Original price
$2,862.00
Original price
$2,862.00
$2,817.45
-
$2,862.00
Current price
$2,862.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

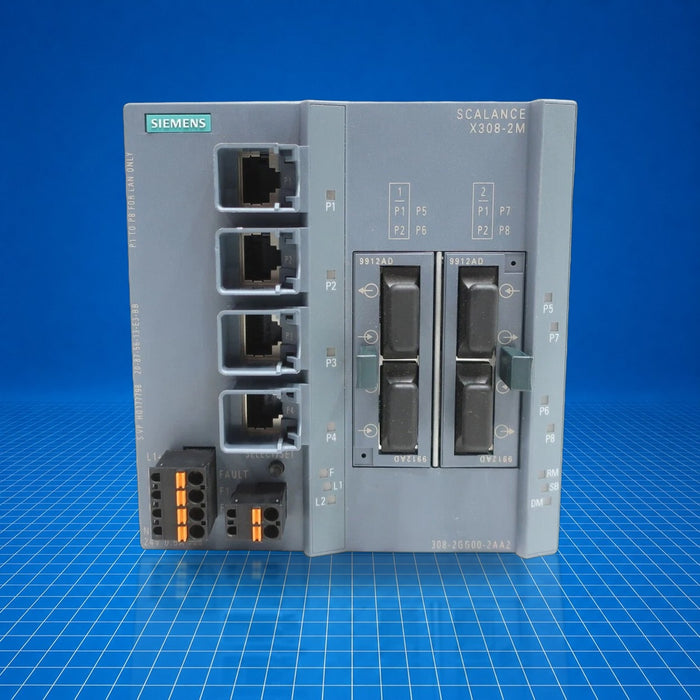

The Siemens 6GK5308-2GG00-2AA2 is a SCALANCE X308-2M managed Industrial Ethernet switch, providing four 10/100/1000 Mbit/s RJ45 ports and two 100/1000 Mbit/s media module slots (electrical or optical). Designed as a PROFINET IO device, it supports network management, redundancy, and diagnostics. Typical uses include factory-floor PROFINET networks, compact machine-level installations, and as a spare part in automation systems.
Best Suited For
- PROFINET-based industrial Ethernet networks
- Compact machine-level installations
- Redundant network ring topologies
- Diagnostics and network monitoring at the device level
RJ45 ports
4 × 10/100/1000 Mbit/s
Media module slots
2 × 100/1000 Mbit/s
Supply voltage
24 V DC
Ambient temperature (operating)
-40 … +70 °C
Power loss
16.6 W
Technical Specifications
I/O & Electrical
Signal contact voltage
24 V DC
Signal contact current, max
0.1 A
Communication & Power
RJ45 ports
4 × 10/100/1000 Mbit/s
Media module slots
2 × 100/1000 Mbit/s
Supply voltage
24 V DC
Power consumption (power loss)
16.6 W
Supply current, max
0.7 A
Fuse protection (power input)
F 3 A / 32 V
Redundant supply input
Yes (via terminal block)
Physical & Environmental
Operating temperature
-40 … +70 °C
Storage/transport temperature
-40 … +70 °C
Relative humidity (operating, 25 °C)
95 % without condensation
Protection class
IP20
Mounting
35 mm DIN-rail, wall, S7-300 rail
Dimensions (W×H×D)
120 × 125 × 124 mm
Weight
1.4 kg
Certifications
Includes EU and UK declarations of conformity, CCC, EAC, China RoHS, UL, RCM, KC, IECEx, ATEX, FM, marine class approvals (ABS, BV, DNV, LR, NK, PRS, RINA), PROFINET conformity class B.
