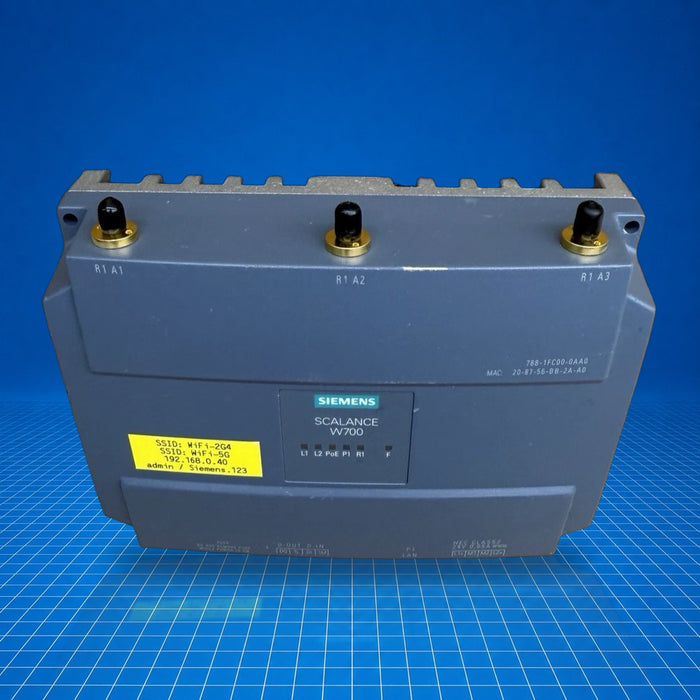

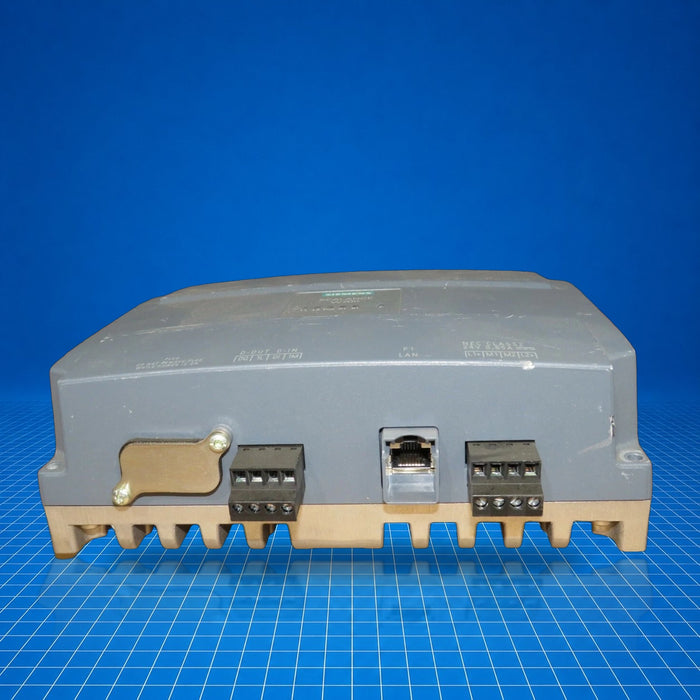

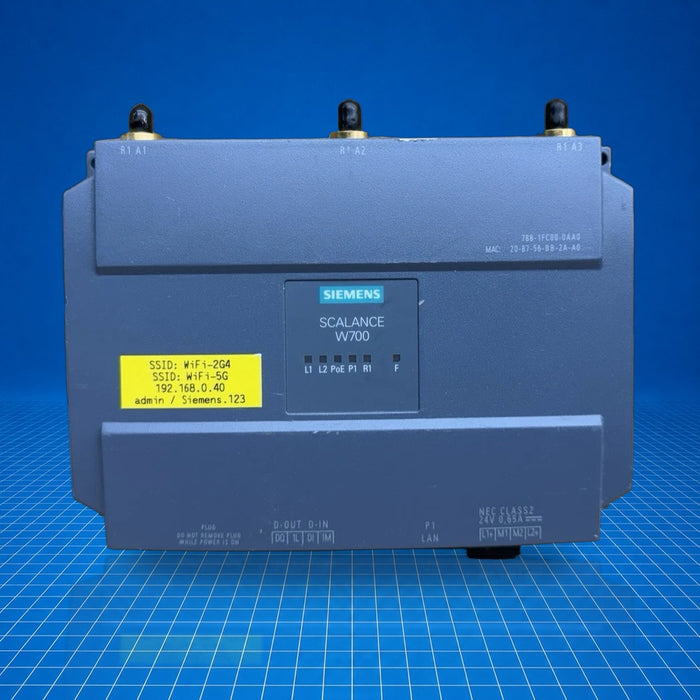

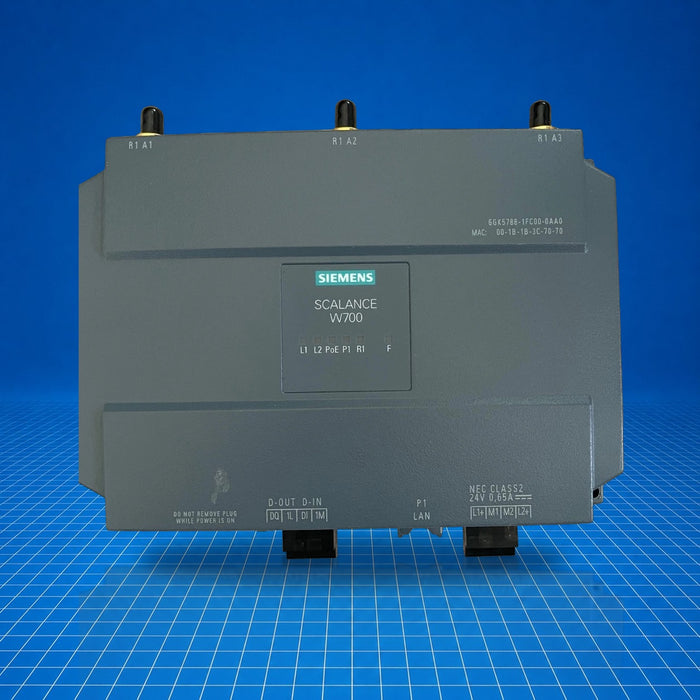

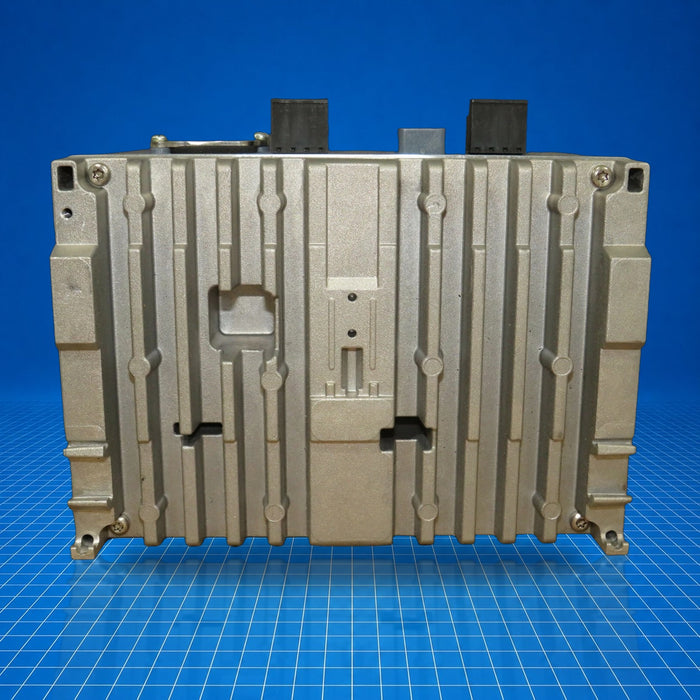

6GK5788-1FC00-0AA0 Siemens
Original price
$687.50
-
Original price
$1,499.88
Original price
$687.50
$687.50
-
$1,499.88
Current price
$687.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens SCALANCE W788-1 RJ45 (6GK5788-1FC00-0AA0) is an industrial IEEE 802.11a/b/g/h/n wireless LAN access point designed for control cabinet installation. It provides one WLAN radio (2.4/5 GHz) at up to 450 Mbit/s gross, one RJ45 Ethernet port (10/100/1000 Mbit/s), with power options via PoE or redundant 24 V DC through a screw terminal block. The device supports iFeatures via KEY-PLUG and WPA2/802.11i/e security. It is offered as part of the SCALANCE W788 family and is suitable for industrial wireless connectivity and legacy system integration. 6GK5788-1FC00-0AA0
Best Suited For
- Control-cabinet wireless connectivity
- Legacy IEEE 802.11n networks
- Applications requiring PoE or 24 V DC redundancy
- Systems using iFeatures via KEY-PLUG
WLAN standard/radio
IEEE 802.11a/b/g/h/n, 2.4/5 GHz
Ethernet port
1 × RJ45, up to 1 Gbit/s
Power options
PoE and redundant 24 V DC
Operating temperature
-20 … +60 °C
Protection class
IP30
Technical Specifications
I/O & Electrical
Supply voltage
24 V DC and PoE (IEEE 802.3af/at Type 1 & Type 2)
Current consumption (24 V DC)
0.45 A typical
Current consumption (PoE)
0.22 A typical
Power dissipation (24 V DC)
10.7 W
Communication & Power
WLAN throughput
450 Mbit/s gross maximum
Ethernet speed
10…1000 Mbit/s
Antennas
3 × R-SMA (external)
Physical & Environmental
Ambient temperature (operation)
-20 … +60 °C
Protection rating
IP30
Dimensions (W×H×D)
200 × 158 × 79 mm
Net weight
1.7 kg
Certifications
CEE1UL 60950-1CSA C22.2 No. 60950-1
