6GK5992-1AL00-8AA0 Siemens

Original price $537.00 - Original price $539.97
Original price
$539.97
$537.00 - $539.97
Current price $539.97
Surplus - Tested (With Warranty)
New / Open-Box Surplus
Need a Specific Revision?
$539.97
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

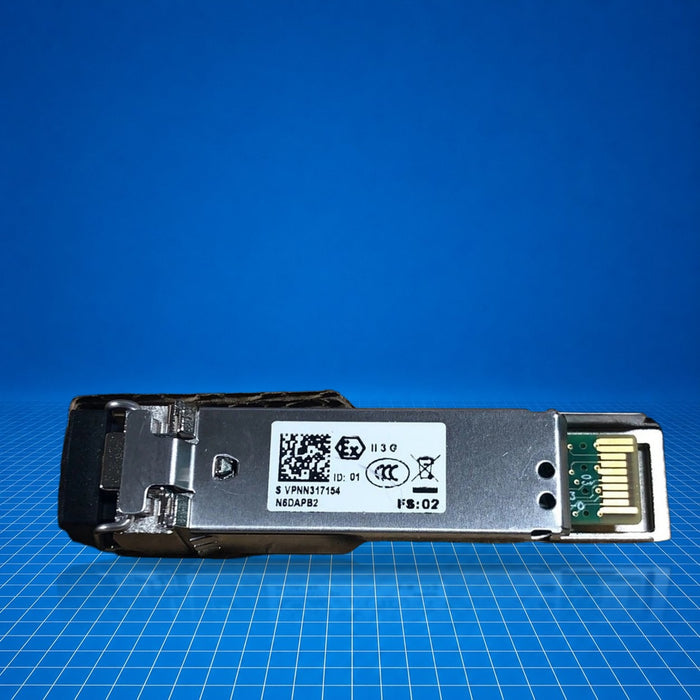

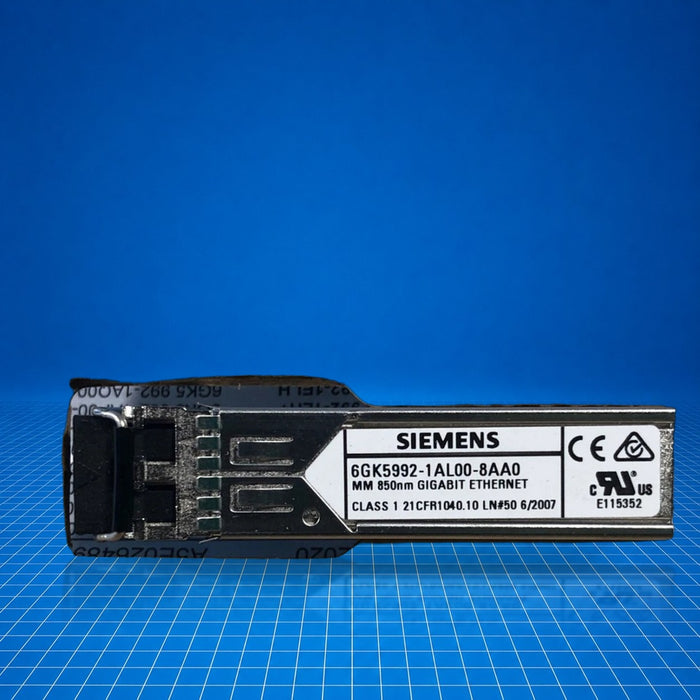

The 6GK5992-1AL00-8AA0 is a Siemens SCALANCE X accessory-a plug-in optical SFP transceiver (designated SFP992-1) with a single 1000 Mbit/s LC multimode port supporting distances up to 750 m. It serves as a modular component in industrial Ethernet networks, enabling fiber-optic connectivity in SCALANCE infrastructure. Typical applications include extending network segments, redundant links in factory automation, or installations in harsh ambient environments.

Best Suited For

  • SCALANCE X Ethernet switch expansion
  • Fiber link insertion in industrial control systems
  • High-electromagnetic-noise environments
  • Long-distance multimode fiber runs
Data rate
1000 Mbit/s
Fiber type
Multimode, LC
Max link distance
0.75 km
Operating temperature
-40 … +85 °C
Supply voltage/current
3.3 V / max. 240 mA

Technical Specifications

I/O & Electrical

Data rate
1000 Mbit/s

Communication & Power

Input voltage
3.3 V
Supply current
max. 240 mA
Optical wavelength
850 nm
Optical interface
LC multimode
Transmit output power
min. -9.5 dB … max. -2.5 dB
Receive sensitivity
min. -17 dB
Max receiver input
-3 dB
Cable attenuation requirement
0 dB
Transmission method
1000BASE-SX
Maximum distance
0.35 … 0.75 km

Physical & Environmental

Operating temperature
-40 … +85 °C
Storage/transport temperature
-40 … +85 °C
Relative humidity
≤ 95 % at 25 °C, non-condensing
Protection class
IP20
Dimensions (W×H×D)
14 mm × 9 mm × 57 mm
Weight
0.02 kg
Mounting
Latched SFP module

Certifications

FM Class 1 Div 2ATEX Ex nA T4Laser Class 1UL 62368-1CSA 62368-1

FM Class 1 Div 2 Group A,B,C,D T4; ATEX II 3 G Ex nA II T4; Laser Class 1 (IEC 60825-1); UL 62368-1 / CSA C22.2 No. 62368-1
