6GK7342-5DA01-0XE0 Siemens
Original price
$469.14
-
Original price
$1,960.00
Original price
$469.14
$469.14
-
$1,960.00
Current price
$469.14
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

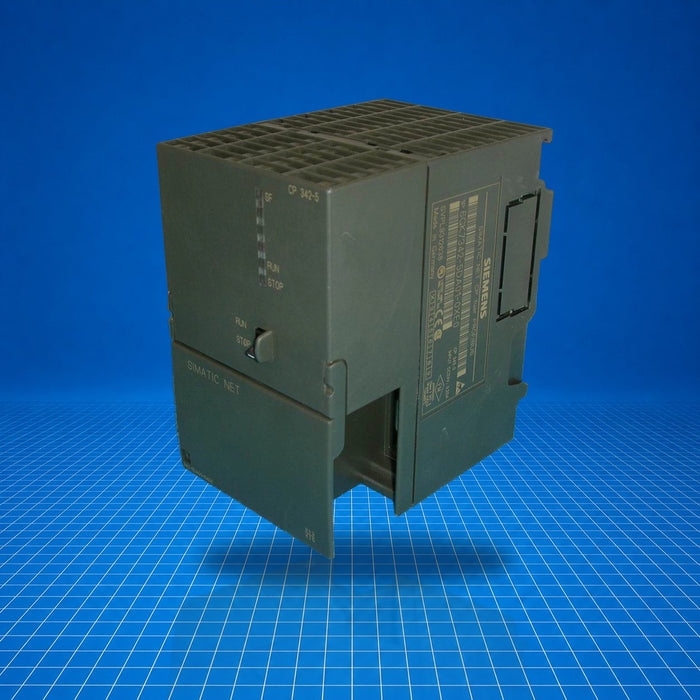

The Siemens 6GK7342-5DA01-0XE0 is a CP 342-5 communications processor module for the SIMATIC S7-300 system. It provides PROFIBUS DP connectivity for S7 PLCs, enabling both DP-master and DP-device roles and open communications (SEND/RECEIVE interface). It supports up to 16 simultaneous S7 communication connections and facilitates multi-protocol configurations. Typically used in industrial automation environments for integrating S7-300 CPUs into PROFIBUS DP networks and facilitating distributed I/O or peer-to-peer data exchange.
Best Suited For
- SIMATIC S7-300 systems requiring PROFIBUS DP connectivity
- Applications needing DP-master or DP-device operation
- Systems with open communication via SEND/RECEIVE blocks
- Multi-protocol environments combining DP and S7 traffic
PROFIBUS DP interface
1 (Sub-D, RS-485)
S7 communication connections
16 max.
External power supply
24 V DC
Ambient operating temperature
0 … 60 °C
Module format
S7-300, 40 mm width
Technical Specifications
I/O & Electrical
Backplane supply voltage
5 V DC
External supply voltage (rated)
24 V DC
External supply tolerance +
+20 %
External supply tolerance -
-15 %
Current consumption (backplane) typical
0.15 A @ 5 V DC
Current consumption (external) typical
0.25 A @ 24 V DC
Power loss
6.75 W
Communication & Power
PROFIBUS DP transfer rate
9.6 kbit/s … 12 Mbit/s
PROFIBUS DP interface count
1
Open communication connections (SEND/RECEIVE)
16 max.
User data per open-comm connection
240 byte
DP-master devices operable
124 max.
DP-master input total data
2160 byte
DP-master output total data
2160 byte
DP-device input total data
240 byte
DP-device output total data
240 byte
S7 communication connections
16 max.
Multi-protocol connections w/o DP
32 max.
Multi-protocol connections with DP
28 max.
Physical & Environmental
Operating temperature
0 … 60 °C
Storage/transport temperature
-40 … 70 °C
Relative humidity (at 25 °C, no condensation)
95 % max.
Protection class
IP20
Width
40 mm
Height
125 mm
Depth
120 mm
Net weight
0.3 kg
Certifications
CEUK Declaration of ConformityCCCEACChina RoHSULRCMATEXIECExFMCCC-ExPRS
